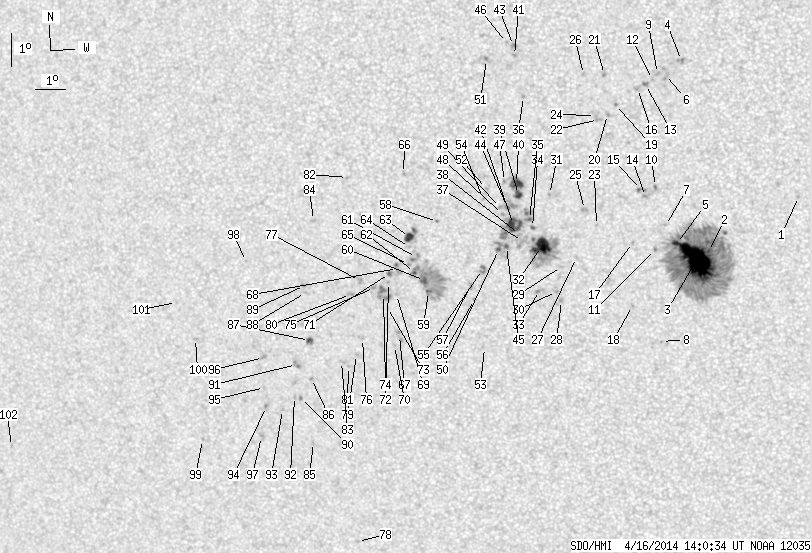

SDO HMI 2014-04-16 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.72 | 797.19 | 61.61 | 415.66 | -15.89 | 223.77 | -14.51 | 128.47 | 0.3064 | 453.1 | 208.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.29 | 230.94 | -7.35 | 141.13 | 0.1984 | 824.0 | 649.7 | |
| 0.88 | 383.28 | 0.45 | 196.52 | -15.93 | 228.03 | -10.25 | 136.84 | 0.2514 | 1291.3 | 448.8 | |
| 58.04 | -2.00 | 29.76 | -2.00 | -16.16 | 227.63 | -10.65 | 136.46 | 0.2588 | 1452.1 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -10.12 | 227.44 | -10.84 | 113.96 | 0.2036 | 1026.0 | 834.1 | |
| 2.74 | -2.00 | 1.41 | -2.00 | -15.66 | 227.02 | -11.26 | 133.49 | 0.2603 | 1020.2 | 999999 | |
| 0.00 | 4.42 | 0.00 | 2.24 | -10.53 | 226.92 | -11.36 | 114.84 | 0.2143 | 807.0 | 823.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.11 | 226.71 | -11.58 | 131.08 | 0.2582 | 735.0 | 596.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -18.66 | 226.35 | -11.93 | 139.55 | 0.3033 | 629.0 | 517.6 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -10.49 | 226.67 | -11.61 | 114.25 | 0.2180 | 953.0 | 828.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -13.91 | 226.45 | -11.83 | 126.72 | 0.2493 | -891.0 | -845.3 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -15.83 | 226.34 | -11.94 | 132.36 | 0.2705 | 919.0 | 719.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -10.67 | 226.51 | -11.77 | 114.71 | 0.2217 | 881.0 | 700.7 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -10.82 | 226.29 | -12.00 | 114.93 | 0.2261 | 1118.0 | 921.6 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -14.21 | 226.12 | -12.16 | 126.96 | 0.2567 | -1054.0 | -822.0 | |
| 0.00 | 3.63 | 0.00 | 1.86 | -14.00 | 226.01 | -12.28 | 126.02 | 0.2562 | -1201.0 | -964.5 | |
| 0.00 | 3.19 | 0.00 | 1.62 | -10.93 | 226.03 | -12.25 | 114.96 | 0.2308 | 801.0 | 714.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -15.60 | 225.62 | -12.66 | 130.11 | 0.2772 | 701.0 | 533.1 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -17.53 | 225.49 | -12.79 | 134.97 | 0.2997 | 853.0 | 657.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -11.40 | 225.32 | -12.96 | 115.60 | 0.2449 | 935.0 | 785.9 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -11.70 | 225.05 | -13.23 | 116.27 | 0.2510 | 990.0 | 776.9 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -10.49 | 225.01 | -13.27 | 111.66 | 0.2439 | 930.0 | 737.5 | |
| 0.00 | 2.65 | 0.00 | 1.36 | -11.84 | 224.76 | -13.52 | 116.32 | 0.2565 | 926.0 | 693.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -15.06 | 224.50 | -13.78 | 126.29 | 0.2866 | 929.0 | 730.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -11.72 | 224.67 | -13.61 | 115.75 | 0.2570 | 418.0 | 396.8 | |
| 0.00 | 2.83 | 0.00 | 1.46 | -14.56 | 224.15 | -14.13 | 124.18 | 0.2869 | 962.0 | 868.5 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -10.47 | 224.35 | -13.93 | 110.73 | 0.2542 | 851.0 | 665.1 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -16.02 | 223.79 | -14.49 | 127.67 | 0.3052 | 667.0 | 578.8 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -17.33 | 223.20 | -15.08 | 129.97 | 0.3255 | 780.0 | 710.7 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -16.28 | 223.29 | -15.00 | 127.47 | 0.3143 | -8.0 | 93.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -17.05 | 223.06 | -15.22 | 129.03 | 0.3246 | 1024.0 | 867.0 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -14.08 | 223.06 | -15.22 | 120.93 | 0.2981 | 890.0 | 688.9 | |
| 18.49 | 59.72 | 9.65 | 31.17 | -15.66 | 222.69 | -15.59 | 124.79 | 0.3166 | 1237.2 | 427.9 | |
| 0.00 | 3.19 | 0.00 | 1.67 | -17.00 | 222.51 | -15.77 | 127.98 | 0.3312 | 847.0 | 723.4 | |
| 0.44 | 1.86 | 0.23 | 0.97 | -15.07 | 222.44 | -15.84 | 122.80 | 0.3150 | 1061.4 | 914.2 | |
| 0.53 | 38.22 | 0.28 | 19.99 | -14.82 | 222.36 | -15.92 | 122.00 | 0.3140 | 1149.7 | 762.0 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -11.09 | 222.42 | -15.86 | 110.65 | 0.2879 | 890.0 | 641.5 | |
| 0.00 | 10.17 | 0.00 | 5.32 | -15.49 | 222.08 | -16.20 | 123.39 | 0.3234 | 136.0 | 241.6 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -15.27 | 222.00 | -16.28 | 122.69 | 0.3227 | 880.0 | 734.8 | |
| 3.54 | 19.29 | 1.84 | 10.05 | -14.05 | 222.07 | -16.22 | 119.38 | 0.3123 | 1107.1 | 756.6 | |
| 7.52 | -39.00 | 3.92 | -39.00 | -13.72 | 222.03 | -16.26 | 118.36 | 0.3104 | 1047.6 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -9.85 | 222.20 | -16.08 | 106.26 | 0.2855 | 947.0 | 771.2 | |
| 11.86 | -35.00 | 6.20 | -35.00 | -14.96 | 221.83 | -16.45 | 121.60 | 0.3226 | 996.9 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.37 | -9.54 | 222.19 | -16.10 | 105.21 | 0.2846 | 994.0 | 838.6 | |
| 0.44 | 9.02 | 0.23 | 4.71 | -14.44 | 221.68 | -16.60 | 119.94 | 0.3207 | 882.8 | 664.7 | |
| 0.80 | 13.45 | 0.42 | 7.07 | -15.63 | 221.55 | -16.73 | 122.97 | 0.3319 | 922.7 | 546.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -9.45 | 221.97 | -16.31 | 104.71 | 0.2878 | 788.0 | 639.5 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -13.65 | 221.64 | -16.64 | 117.64 | 0.3155 | 647.0 | 533.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -14.65 | 221.50 | -16.78 | 120.27 | 0.3248 | 591.0 | 496.8 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -14.43 | 221.45 | -16.83 | 119.61 | 0.3239 | 87.0 | 49.2 | |
| 0.97 | -45.00 | 0.51 | -45.00 | -15.71 | 221.28 | -17.00 | 122.80 | 0.3363 | 757.2 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -9.94 | 221.31 | -16.98 | 105.85 | 0.3003 | 866.0 | 702.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -13.84 | 221.05 | -17.24 | 117.44 | 0.3256 | 698.0 | 604.7 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -18.70 | 220.53 | -17.76 | 128.87 | 0.3726 | 336.0 | 395.6 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -14.17 | 220.92 | -17.36 | 118.21 | 0.3297 | 744.0 | 578.7 | |
| 0.00 | 4.34 | 0.00 | 2.29 | -16.31 | 220.70 | -17.58 | 123.51 | 0.3491 | 654.0 | 681.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -17.22 | 220.35 | -17.93 | 125.22 | 0.3616 | 559.0 | 436.4 | |
| 0.00 | 2.92 | 0.00 | 1.55 | -16.78 | 220.26 | -18.02 | 124.07 | 0.3591 | 701.0 | 604.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -14.80 | 219.36 | -18.92 | 118.00 | 0.3566 | -739.0 | -612.1 | |
| 1.06 | 76.44 | 0.57 | 40.82 | -16.93 | 218.85 | -19.43 | 122.59 | 0.3793 | -959.9 | -521.6 | |
| 2.65 | -59.00 | 1.42 | -59.00 | -16.58 | 218.76 | -19.53 | 121.67 | 0.3780 | -1246.0 | 999999 | |
| 0.00 | 4.51 | 0.00 | 2.41 | -15.87 | 218.56 | -19.72 | 119.76 | 0.3754 | -645.0 | -786.2 | |
| 0.62 | -59.00 | 0.33 | -59.00 | -16.33 | 218.45 | -19.83 | 120.72 | 0.3803 | -1057.3 | 999999 | |
| 5.22 | 11.50 | 2.79 | 6.14 | -15.25 | 218.40 | -19.89 | 118.08 | 0.3735 | -1051.1 | -792.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.56 | 218.36 | -19.92 | 118.79 | 0.3761 | -990.0 | -751.4 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.08 | 218.28 | -20.00 | 119.93 | 0.3809 | -953.0 | -803.4 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -13.30 | 218.38 | -19.90 | 113.12 | 0.3618 | 785.0 | 672.7 | |
| 0.00 | 4.07 | 0.00 | 2.20 | -18.24 | 217.72 | -20.56 | 124.18 | 0.4049 | -499.0 | -816.5 | |
| 0.00 | 4.60 | 0.00 | 2.47 | -16.19 | 217.90 | -20.38 | 119.77 | 0.3870 | -792.0 | -845.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.98 | 217.77 | -20.51 | 121.46 | 0.3945 | -835.0 | -684.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -18.55 | 217.52 | -20.77 | 124.59 | 0.4100 | -678.0 | -554.5 | |
| 0.71 | 3.01 | 0.38 | 1.62 | -16.33 | 217.61 | -20.67 | 119.80 | 0.3920 | -1007.1 | -862.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.61 | 217.55 | -20.73 | 120.36 | 0.3948 | -894.0 | -778.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -17.37 | 217.43 | -20.86 | 121.94 | 0.4021 | -857.0 | -672.9 | |
| 0.00 | 12.56 | 0.00 | 6.79 | -16.97 | 217.34 | -20.94 | 120.95 | 0.4003 | -591.0 | -887.2 | |
| 0.00 | 2.30 | 0.00 | 1.24 | -16.74 | 217.06 | -21.22 | 120.15 | 0.4025 | -877.0 | -696.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -18.29 | 216.46 | -21.82 | 122.87 | 0.4220 | -910.0 | -732.5 | |
| 0.00 | 4.95 | 0.00 | 2.69 | -16.51 | 216.58 | -21.70 | 119.14 | 0.4076 | -698.0 | -472.7 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -24.63 | 215.24 | -23.04 | 133.25 | 0.4904 | -722.0 | -477.1 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -18.78 | 216.19 | -22.09 | 123.59 | 0.4293 | -691.0 | -484.9 | |
| 0.00 | 2.48 | 0.00 | 1.35 | -16.93 | 216.23 | -22.05 | 119.71 | 0.4153 | -988.0 | -854.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -19.14 | 215.86 | -22.42 | 123.97 | 0.4363 | -770.0 | -537.7 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -13.36 | 216.52 | -21.76 | 111.70 | 0.3899 | -867.0 | -578.5 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -18.98 | 215.64 | -22.64 | 123.41 | 0.4379 | -863.0 | -688.0 | |
| 0.00 | 2.21 | 0.00 | 1.20 | -14.62 | 215.25 | -23.03 | 113.69 | 0.4152 | -815.0 | -636.0 | |
| 0.00 | 1.77 | 0.00 | 0.99 | -21.45 | 214.27 | -24.01 | 126.73 | 0.4746 | -650.0 | -585.5 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -19.46 | 214.53 | -23.75 | 123.26 | 0.4560 | -838.0 | -688.4 | |
| 2.21 | 4.87 | 1.22 | 2.69 | -18.29 | 214.64 | -23.64 | 121.03 | 0.4462 | -927.3 | -664.7 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -16.81 | 214.71 | -23.57 | 118.04 | 0.4356 | -891.0 | -655.0 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -16.60 | 214.70 | -23.58 | 117.58 | 0.4343 | -899.0 | -796.4 | |
| 0.00 | 1.68 | 0.00 | 0.94 | -20.07 | 214.05 | -24.24 | 123.95 | 0.4667 | -843.0 | -772.1 | |
| 0.00 | 4.07 | 0.00 | 2.27 | -19.01 | 214.08 | -24.20 | 121.94 | 0.4587 | -831.0 | -745.9 | |
| 0.00 | 1.95 | 0.00 | 1.09 | -20.00 | 213.85 | -24.43 | 123.62 | 0.4687 | -643.0 | -475.6 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -20.38 | 213.36 | -24.92 | 123.89 | 0.4778 | -666.0 | -559.8 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -20.27 | 212.81 | -25.47 | 123.17 | 0.4840 | -844.0 | -757.4 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -19.68 | 212.84 | -25.44 | 122.10 | 0.4794 | -544.0 | -412.1 | |
| 0.00 | 2.65 | 0.00 | 1.49 | -18.75 | 212.96 | -25.32 | 120.44 | 0.4717 | -801.0 | -673.6 | |
| 0.00 | 2.21 | 0.00 | 1.26 | -21.19 | 212.46 | -25.82 | 124.54 | 0.4950 | -635.0 | -575.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -15.78 | 212.81 | -25.47 | 114.38 | 0.4562 | -681.0 | -549.7 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -21.20 | 210.32 | -27.96 | 122.74 | 0.5217 | 825.0 | 609.4 | |
| 0.00 | 1.95 | 0.00 | 1.11 | -18.06 | 210.67 | -27.62 | 117.36 | 0.4982 | -709.0 | -573.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -16.93 | 210.18 | -28.10 | 114.89 | 0.4988 | -661.0 | -579.4 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -21.06 | 203.11 | -35.17 | 117.91 | 0.6105 | -583.0 | -392.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
