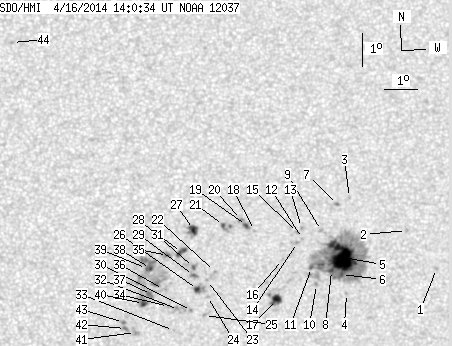

SDO HMI 2014-04-16 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.47 | 368.56 | 36.37 | 184.96 | -9.39 | 246.17 | 7.88 | 239.60 | 0.1555 | 428.2 | 221.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.08 | -9.44 | 251.26 | 12.98 | 252.17 | 0.2338 | 926.0 | 763.1 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -8.31 | 250.29 | 12.00 | 256.01 | 0.2131 | 816.0 | 681.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -7.35 | 248.50 | 10.22 | 259.08 | 0.1800 | 748.0 | 594.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -10.24 | 248.48 | 10.20 | 244.18 | 0.1945 | -466.0 | -197.6 | |
| 43.88 | 196.24 | 22.12 | 98.90 | -9.16 | 248.33 | 10.04 | 249.20 | 0.1850 | 1424.5 | 483.3 | |
| 0.27 | -5.00 | 0.13 | -5.00 | -9.67 | 248.31 | 10.03 | 246.59 | 0.1879 | 864.3 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -7.57 | 248.13 | 9.85 | 257.50 | 0.1745 | 1076.0 | 812.7 | |
| 1.68 | -5.00 | 0.85 | -5.00 | -9.56 | 248.00 | 9.72 | 246.54 | 0.1822 | 899.6 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.02 | -8.36 | 247.66 | 9.38 | 252.37 | 0.1699 | 980.0 | 674.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -9.99 | 247.55 | 9.26 | 243.35 | 0.1782 | 904.0 | 681.9 | |
| 0.80 | -5.00 | 0.40 | -5.00 | -9.48 | 247.38 | 9.10 | 245.63 | 0.1720 | 962.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.61 | 247.08 | 8.80 | 249.87 | 0.1618 | 849.0 | 617.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.28 | 247.04 | 8.76 | 251.77 | 0.1594 | 831.0 | 740.4 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -8.73 | 246.93 | 8.65 | 248.84 | 0.1601 | 1045.0 | 834.6 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -8.43 | 246.92 | 8.64 | 250.62 | 0.1582 | 870.0 | 540.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.25 | 246.48 | 8.20 | 244.73 | 0.1563 | 724.0 | 565.7 | |
| 6.28 | 11.15 | 3.15 | 5.60 | -10.45 | 246.32 | 8.04 | 237.56 | 0.1637 | -1106.6 | -843.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.38 | 245.60 | 7.32 | 247.89 | 0.1367 | -596.0 | -497.8 | |
| 1.15 | 2.92 | 0.57 | 1.46 | -8.24 | 245.35 | 7.07 | 248.27 | 0.1318 | -1098.6 | -921.8 | |
| 0.00 | 2.12 | 0.00 | 1.06 | -8.06 | 245.20 | 6.92 | 249.15 | 0.1282 | -1022.0 | -823.1 | |
| 0.71 | 6.19 | 0.35 | 3.09 | -8.24 | 244.65 | 6.37 | 246.14 | 0.1206 | -1137.4 | -906.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.63 | 244.40 | 6.11 | 235.31 | 0.1283 | -667.0 | -468.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -9.90 | 244.19 | 5.90 | 232.63 | 0.1281 | -936.0 | -747.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.39 | 244.19 | 5.91 | 229.74 | 0.1334 | -935.0 | -773.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -10.96 | 244.11 | 5.83 | 226.16 | 0.1389 | -1067.0 | -835.9 | |
| 2.30 | 8.58 | 1.15 | 4.29 | -10.18 | 243.88 | 5.60 | 229.48 | 0.1270 | -1176.7 | -861.2 | |
| 4.69 | 10.79 | 2.34 | 5.38 | -8.37 | 243.73 | 5.45 | 241.70 | 0.1073 | 1111.8 | 774.8 | |
| 0.71 | 3.01 | 0.35 | 1.50 | -9.52 | 243.75 | 5.47 | 233.10 | 0.1181 | -1121.9 | -825.2 | |
| 0.53 | 3.80 | 0.26 | 1.90 | -9.76 | 243.75 | 5.47 | 231.50 | 0.1206 | -1245.7 | -953.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.81 | 243.71 | 5.43 | 224.93 | 0.1322 | -956.0 | -794.4 | |
| 3.72 | 6.02 | 1.85 | 3.00 | -9.07 | 243.38 | 5.10 | 234.44 | 0.1083 | -1022.9 | -681.1 | |
| 0.00 | 8.05 | 0.00 | 4.02 | -10.79 | 243.31 | 5.03 | 222.91 | 0.1270 | -759.0 | -640.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -11.42 | 243.17 | 4.88 | 218.85 | 0.1337 | -673.0 | -579.0 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.70 | 243.00 | 4.72 | 221.61 | 0.1223 | -889.0 | -660.6 | |
| 0.97 | 5.31 | 0.48 | 2.64 | -9.16 | 242.95 | 4.67 | 231.35 | 0.1034 | 992.1 | 717.0 | |
| 0.00 | 3.10 | 0.00 | 1.54 | -10.18 | 242.84 | 4.56 | 223.62 | 0.1139 | -860.0 | -726.4 | |
| 0.00 | 5.75 | 0.00 | 2.87 | -10.34 | 242.47 | 4.19 | 220.34 | 0.1116 | -861.0 | -668.5 | |
| 1.42 | 48.40 | 0.70 | 24.10 | -9.55 | 242.44 | 4.15 | 225.14 | 0.1012 | 1024.9 | 252.5 | |
| 0.71 | -38.00 | 0.35 | -38.00 | -9.55 | 242.31 | 4.03 | 224.29 | 0.0997 | 1093.2 | 999999 | |
| 2.65 | 10.35 | 1.32 | 5.16 | -10.61 | 242.23 | 3.95 | 217.14 | 0.1127 | -1186.9 | -575.5 | |
| 0.00 | 5.04 | 0.00 | 2.52 | -11.49 | 242.00 | 3.72 | 211.26 | 0.1230 | 993.0 | 784.0 | |
| 0.00 | 2.03 | 0.00 | 1.02 | -11.37 | 241.69 | 3.41 | 209.61 | 0.1185 | 1092.0 | 910.6 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -11.19 | 241.63 | 3.34 | 209.93 | 0.1152 | 1195.0 | 983.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -2.76 | 238.23 | -0.05 | 1.03 | 0.0479 | 884.0 | 659.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
