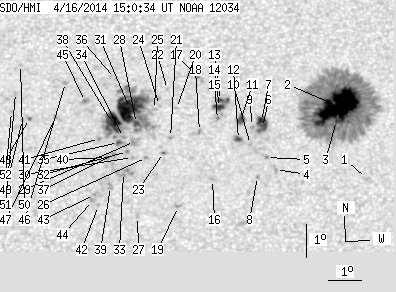

SDO HMI 2014-04-16 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.59 | 705.78 | 83.02 | 358.88 | 4.31 | 245.72 | 7.99 | 322.38 | 0.2235 | -187.2 | -199.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.01 | 0.00 | 1.53 | 2.37 | 248.80 | 11.07 | 305.13 | 0.2357 | -870.0 | -579.6 | |
| 72.99 | 428.72 | 37.32 | 219.21 | 4.55 | 247.97 | 10.24 | 314.28 | 0.2487 | -1505.8 | -436.7 | |
| 0.27 | -2.00 | 0.14 | -2.00 | 4.12 | 247.91 | 10.17 | 313.21 | 0.2428 | -1184.7 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.66 | 2.60 | 246.03 | 8.30 | 314.13 | 0.2017 | -951.0 | -712.1 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 2.96 | 245.76 | 8.02 | 316.34 | 0.2029 | -1076.0 | -867.9 | |
| 4.69 | 14.15 | 2.38 | 7.18 | 3.87 | 245.64 | 7.91 | 319.68 | 0.2132 | -1160.1 | -848.2 | |
| 5.31 | -6.00 | 2.69 | -6.00 | 4.06 | 245.61 | 7.88 | 320.34 | 0.2153 | -1019.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.38 | 245.48 | 7.75 | 315.31 | 0.1924 | -868.0 | -765.0 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 3.90 | 245.34 | 7.61 | 320.87 | 0.2103 | -916.0 | -768.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 3.35 | 245.27 | 7.54 | 319.41 | 0.2023 | -885.0 | -657.7 | |
| 4.07 | 6.55 | 2.06 | 3.32 | 4.11 | 244.98 | 7.25 | 322.86 | 0.2093 | -1064.3 | -807.4 | |
| 1.77 | 3.80 | 0.89 | 1.92 | 3.50 | 244.91 | 7.18 | 321.28 | 0.2003 | -1116.9 | -886.3 | |
| 1.68 | 15.04 | 0.85 | 7.62 | 4.68 | 244.38 | 6.64 | 326.78 | 0.2114 | -693.8 | -689.4 | |
| 3.98 | -13.00 | 2.02 | -13.00 | 4.47 | 244.34 | 6.61 | 326.34 | 0.2080 | -1156.6 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 4.10 | 244.28 | 6.55 | 325.60 | 0.2022 | -882.0 | -729.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 2.28 | 244.11 | 6.38 | 320.47 | 0.1753 | -790.0 | -701.1 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 5.35 | 243.74 | 6.01 | 330.93 | 0.2156 | -759.0 | -727.4 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 3.73 | 243.73 | 6.00 | 326.87 | 0.1917 | -924.0 | -665.8 | |
| 0.00 | 2.03 | 0.00 | 1.02 | 1.45 | 243.08 | 5.35 | 322.27 | 0.1530 | 923.0 | 646.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.43 | 243.04 | 5.31 | 331.79 | 0.1959 | 528.0 | 420.4 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 3.54 | 242.85 | 5.12 | 330.39 | 0.1810 | -932.0 | -607.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.01 | 242.77 | 5.04 | 334.30 | 0.2027 | -614.0 | -472.7 | |
| 0.53 | 1.77 | 0.27 | 0.89 | 3.08 | 242.64 | 4.90 | 330.16 | 0.1723 | -794.3 | -578.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 4.52 | 242.52 | 4.79 | 334.35 | 0.1933 | -257.0 | -102.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 4.39 | 242.37 | 4.64 | 334.79 | 0.1903 | 660.0 | 423.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.93 | 242.12 | 4.39 | 332.39 | 0.1657 | 869.0 | 657.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 1.14 | 241.84 | 4.11 | 328.12 | 0.1363 | 801.0 | 608.8 | |
| 2.39 | 149.25 | 1.20 | 75.19 | 3.96 | 241.82 | 4.09 | 336.53 | 0.1796 | 942.3 | 463.5 | |
| 0.00 | 7.70 | 0.00 | 3.87 | 3.41 | 241.76 | 4.03 | 335.59 | 0.1705 | 447.0 | 206.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 2.93 | 241.70 | 3.97 | 334.70 | 0.1624 | 780.0 | 589.7 | |
| 44.06 | -28.00 | 22.21 | -28.00 | 4.45 | 241.62 | 3.89 | 338.61 | 0.1860 | 955.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 3.11 | 241.55 | 3.82 | 336.01 | 0.1642 | 892.0 | 714.0 | |
| 0.00 | 9.82 | 0.00 | 4.92 | 2.47 | 241.42 | 3.69 | 335.05 | 0.1533 | 775.0 | 878.8 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 3.53 | 241.43 | 3.70 | 337.66 | 0.1702 | 766.0 | 713.0 | |
| 1.06 | 4.42 | 0.53 | 2.22 | 3.38 | 241.28 | 3.55 | 338.16 | 0.1667 | 1144.2 | 803.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.33 | 241.20 | 3.47 | 342.21 | 0.1980 | 727.0 | 562.0 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 3.02 | 241.13 | 3.39 | 338.19 | 0.1599 | 1083.0 | 902.3 | |
| 20.79 | -28.00 | 10.46 | -28.00 | 3.99 | 241.10 | 3.37 | 340.39 | 0.1755 | 1220.9 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.68 | 2.04 | 241.03 | 3.30 | 336.29 | 0.1437 | 635.0 | 814.9 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 2.92 | 240.91 | 3.18 | 339.23 | 0.1571 | 945.0 | 861.8 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 3.50 | 240.71 | 2.97 | 341.66 | 0.1653 | 925.0 | 797.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 1.47 | 240.67 | 2.94 | 337.06 | 0.1320 | 675.0 | 523.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 1.80 | 240.55 | 2.82 | 338.82 | 0.1366 | 1005.0 | 822.2 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 1.62 | 240.49 | 2.76 | 338.75 | 0.1333 | 928.0 | 782.4 | |
| 0.00 | 4.07 | 0.00 | 2.05 | 4.63 | 240.29 | 2.56 | 345.79 | 0.1820 | 1140.0 | 905.9 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 5.21 | 239.69 | 1.96 | 349.62 | 0.1895 | 921.0 | 714.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.14 | 239.38 | 1.65 | 350.26 | 0.1705 | 1035.0 | 771.8 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 4.11 | 238.60 | 0.87 | 354.84 | 0.1682 | 1055.0 | 934.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.07 | 238.39 | 0.65 | 356.08 | 0.1674 | 971.0 | 750.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.76 | 238.33 | 0.60 | 356.95 | 0.1962 | 736.0 | 635.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 4.90 | 238.18 | 0.44 | 357.54 | 0.1814 | 852.0 | 720.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 4.32 | 238.05 | 0.32 | 358.11 | 0.1713 | 873.0 | 730.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
