SDO HMI 2014-04-16 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.05 | 758.44 | 63.73 | 394.08 | -15.87 | 224.02 | -13.71 | 130.01 | 0.2960 | 444.8 | 242.9 | |
|
previous
or next observation for the same group /

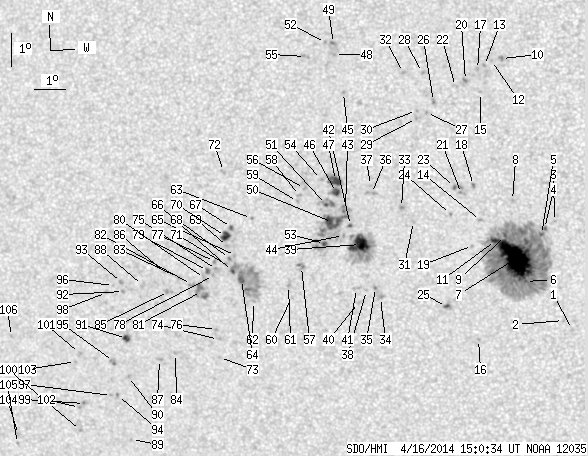

back to the solar disc SDO HMI 2014-04-16 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.86 | -18.42 | 229.36 | -8.37 | 148.41 | 0.2649 | 365.0 | 332.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -18.13 | 229.09 | -8.65 | 146.99 | 0.2634 | 775.0 | 589.8 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.10 | 228.94 | -8.79 | 138.70 | 0.2245 | 722.0 | 488.6 | |
| 0.53 | 373.34 | 0.27 | 191.10 | -15.30 | 228.62 | -9.11 | 138.32 | 0.2308 | -632.5 | 459.3 | |
| 0.71 | -4.00 | 0.36 | -4.00 | -15.49 | 228.52 | -9.22 | 138.54 | 0.2342 | 716.4 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -16.92 | 227.94 | -9.80 | 140.77 | 0.2585 | 866.7 | 999999 | |
| 57.95 | -4.00 | 29.66 | -4.00 | -16.21 | 227.65 | -10.08 | 138.11 | 0.2527 | 1478.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -14.43 | 227.65 | -10.08 | 132.77 | 0.2320 | -896.0 | -630.8 | |
| 1.06 | -4.00 | 0.54 | -4.00 | -15.50 | 227.37 | -10.36 | 135.33 | 0.2475 | 896.0 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.30 | -10.13 | 227.48 | -10.25 | 115.16 | 0.1945 | 1052.0 | 929.1 | |
| 2.74 | -4.00 | 1.40 | -4.00 | -15.64 | 227.05 | -10.68 | 134.89 | 0.2531 | 1018.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -10.18 | 227.17 | -10.57 | 114.79 | 0.1997 | 1032.0 | 892.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.33 | 226.94 | -10.79 | 115.03 | 0.2042 | 1094.0 | 864.5 | |
| 0.00 | 2.03 | 0.00 | 1.04 | -15.02 | 226.61 | -11.12 | 131.92 | 0.2516 | 713.0 | 495.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -11.14 | 226.79 | -10.94 | 118.27 | 0.2124 | 706.0 | 531.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.67 | 226.32 | -11.41 | 140.79 | 0.2979 | 650.0 | 497.2 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -10.45 | 226.72 | -11.01 | 115.12 | 0.2084 | 954.0 | 807.1 | |
| 0.00 | 2.03 | 0.00 | 1.04 | -13.95 | 226.44 | -11.29 | 128.10 | 0.2425 | -1117.0 | -837.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -15.78 | 226.31 | -11.42 | 133.44 | 0.2636 | 376.0 | 352.6 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -10.77 | 226.33 | -11.40 | 115.80 | 0.2166 | 1159.0 | 908.1 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -14.19 | 226.05 | -11.68 | 127.96 | 0.2501 | -949.0 | -762.4 | |
| 0.00 | 2.39 | 0.00 | 1.21 | -10.95 | 226.01 | -11.72 | 115.94 | 0.2227 | 719.0 | 563.9 | |
| 0.44 | 3.18 | 0.23 | 1.63 | -14.00 | 225.84 | -11.89 | 126.87 | 0.2511 | -1126.0 | -947.5 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -14.82 | 225.66 | -12.07 | 129.09 | 0.2615 | -855.0 | -687.1 | |
| 0.97 | 3.54 | 0.50 | 1.83 | -17.63 | 225.35 | -12.38 | 136.13 | 0.2960 | 1001.9 | 714.1 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -11.38 | 225.31 | -12.43 | 116.43 | 0.2366 | 933.0 | 755.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -11.71 | 225.07 | -12.66 | 117.27 | 0.2425 | 1013.0 | 820.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -10.50 | 225.00 | -12.73 | 112.47 | 0.2356 | 929.0 | 789.2 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -11.89 | 224.75 | -12.98 | 117.36 | 0.2487 | 846.0 | 667.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.64 | 224.76 | -12.97 | 116.49 | 0.2468 | 721.0 | 581.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -15.01 | 224.47 | -13.26 | 127.15 | 0.2792 | 867.0 | 609.1 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -10.49 | 224.40 | -13.33 | 111.57 | 0.2448 | 901.0 | 677.5 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -14.58 | 224.12 | -13.61 | 125.16 | 0.2799 | 1064.0 | 875.4 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -17.31 | 223.24 | -14.49 | 131.00 | 0.3180 | 782.0 | 706.0 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -17.00 | 223.10 | -14.63 | 129.97 | 0.3165 | 921.0 | 794.9 | |
| 0.00 | 3.89 | 0.00 | 2.01 | -14.13 | 223.19 | -14.55 | 122.15 | 0.2890 | 612.0 | 719.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -13.88 | 223.17 | -14.56 | 121.39 | 0.2872 | 845.0 | 639.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -17.08 | 222.80 | -14.93 | 129.64 | 0.3212 | 822.0 | 647.7 | |
| 19.99 | 60.34 | 10.41 | 31.42 | -15.67 | 222.72 | -15.01 | 125.80 | 0.3088 | 1215.0 | 431.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -17.45 | 222.51 | -15.22 | 130.02 | 0.3285 | 666.0 | 523.4 | |
| 0.00 | 3.01 | 0.00 | 1.57 | -17.01 | 222.48 | -15.25 | 128.90 | 0.3246 | 868.0 | 655.0 | |
| 0.71 | 1.77 | 0.37 | 0.92 | -15.08 | 222.44 | -15.29 | 123.71 | 0.3074 | 1046.4 | 875.2 | |
| 0.00 | 5.31 | 0.00 | 2.76 | -14.59 | 222.32 | -15.41 | 122.12 | 0.3051 | 926.0 | 924.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -15.38 | 222.19 | -15.54 | 124.14 | 0.3134 | 759.0 | 660.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.05 | 222.48 | -15.25 | 111.19 | 0.2781 | 930.0 | 720.3 | |
| 3.54 | 6.55 | 1.84 | 3.40 | -14.07 | 222.07 | -15.67 | 120.22 | 0.3045 | 1140.2 | 755.6 | |
| 7.08 | 11.85 | 3.68 | 6.16 | -13.70 | 222.06 | -15.67 | 119.13 | 0.3018 | 1073.9 | 730.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.89 | 222.25 | -15.48 | 106.95 | 0.2760 | 937.0 | 736.6 | |
| 0.00 | 3.18 | 0.00 | 1.64 | -9.56 | 222.24 | -15.49 | 105.76 | 0.2749 | 1090.0 | 825.3 | |
| 11.32 | 40.87 | 5.91 | 21.33 | -14.98 | 221.87 | -15.86 | 122.51 | 0.3145 | 1023.7 | 671.9 | |
| 0.80 | 10.17 | 0.42 | 5.30 | -14.42 | 221.72 | -16.01 | 120.73 | 0.3122 | 780.3 | 548.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -9.52 | 221.99 | -15.74 | 105.42 | 0.2788 | 687.0 | 624.2 | |
| 1.33 | 10.88 | 0.69 | 5.70 | -15.61 | 221.56 | -16.17 | 123.76 | 0.3241 | 896.9 | 611.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -13.66 | 221.61 | -16.12 | 118.37 | 0.3080 | 751.0 | 591.0 | |
| 0.00 | 3.45 | 0.00 | 1.79 | -9.93 | 221.33 | -16.40 | 106.27 | 0.2910 | 855.0 | 695.3 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -13.92 | 221.04 | -16.69 | 118.36 | 0.3181 | 746.0 | 684.8 | |
| 0.00 | 4.69 | 0.00 | 2.47 | -16.29 | 220.75 | -16.98 | 124.32 | 0.3409 | 895.0 | 667.0 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -14.13 | 220.87 | -16.87 | 118.71 | 0.3222 | 747.0 | 580.3 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -14.31 | 220.79 | -16.94 | 119.11 | 0.3247 | 712.0 | 516.7 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -17.23 | 220.33 | -17.40 | 126.02 | 0.3547 | 381.0 | 380.8 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -16.86 | 220.27 | -17.46 | 125.03 | 0.3523 | 787.0 | 625.2 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -17.32 | 219.06 | -18.67 | 124.46 | 0.3722 | -217.0 | -210.3 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -14.78 | 219.25 | -18.49 | 118.46 | 0.3502 | -775.0 | -612.1 | |
| 2.74 | 58.21 | 1.46 | 31.00 | -16.63 | 218.74 | -19.00 | 122.43 | 0.3711 | -1204.4 | -583.2 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -15.89 | 218.61 | -19.12 | 120.50 | 0.3672 | -662.0 | -547.9 | |
| 1.15 | -64.00 | 0.61 | -64.00 | -16.38 | 218.46 | -19.27 | 121.49 | 0.3729 | -1083.3 | 999999 | |
| 0.88 | 2.21 | 0.47 | 1.17 | -15.03 | 218.56 | -19.17 | 118.32 | 0.3618 | -992.2 | -756.4 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -15.98 | 218.40 | -19.33 | 120.46 | 0.3707 | -1037.0 | -910.4 | |
| 0.00 | 1.95 | 0.00 | 1.04 | -15.61 | 218.38 | -19.36 | 119.53 | 0.3685 | -718.0 | -579.2 | |
| 4.95 | 6.99 | 2.64 | 3.72 | -15.30 | 218.34 | -19.39 | 118.74 | 0.3668 | -1020.4 | -747.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -16.16 | 218.25 | -19.48 | 120.72 | 0.3741 | -897.0 | -805.1 | |
| 0.00 | 2.21 | 0.00 | 1.17 | -13.32 | 218.45 | -19.28 | 113.77 | 0.3525 | 776.0 | 665.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -19.01 | 217.72 | -20.01 | 126.47 | 0.4040 | -852.0 | -652.5 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -18.45 | 217.76 | -19.97 | 125.33 | 0.3988 | -984.0 | -859.2 | |
| 0.00 | 2.92 | 0.00 | 1.56 | -16.30 | 217.94 | -19.79 | 120.69 | 0.3796 | -907.0 | -794.6 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -18.14 | 217.73 | -20.00 | 124.62 | 0.3967 | -889.0 | -739.8 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -16.05 | 217.90 | -19.83 | 120.06 | 0.3783 | -849.0 | -766.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -16.48 | 217.82 | -19.91 | 120.98 | 0.3826 | -902.0 | -803.3 | |
| 1.06 | 2.92 | 0.57 | 1.57 | -16.32 | 217.64 | -20.09 | 120.40 | 0.3839 | -1043.8 | -820.4 | |
| 0.00 | 3.89 | 0.00 | 2.09 | -16.56 | 217.51 | -20.22 | 120.82 | 0.3874 | -725.0 | -650.0 | |
| 0.00 | 13.89 | 0.00 | 7.48 | -16.96 | 217.36 | -20.37 | 121.56 | 0.3923 | -466.0 | -854.3 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -16.73 | 217.05 | -20.68 | 120.70 | 0.3949 | -680.0 | -662.7 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -16.50 | 216.64 | -21.09 | 119.74 | 0.3990 | -884.0 | -681.9 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -18.83 | 216.25 | -21.48 | 124.36 | 0.4217 | -884.0 | -685.0 | |
| 0.00 | 3.72 | 0.00 | 2.01 | -16.92 | 216.26 | -21.47 | 120.27 | 0.4073 | -928.0 | -749.4 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -16.33 | 216.19 | -21.54 | 118.90 | 0.4041 | -787.0 | -598.6 | |
| 0.00 | 2.12 | 0.00 | 1.16 | -19.00 | 215.68 | -22.05 | 124.08 | 0.4304 | -875.0 | -733.1 | |
| 0.00 | 3.27 | 0.00 | 1.78 | -16.70 | 215.40 | -22.33 | 118.95 | 0.4176 | -807.0 | -583.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -21.44 | 214.32 | -23.41 | 127.34 | 0.4671 | -696.0 | -637.1 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -19.48 | 214.54 | -23.20 | 123.85 | 0.4490 | -931.0 | -748.4 | |
| 2.83 | 5.04 | 1.56 | 2.78 | -18.31 | 214.64 | -23.09 | 121.60 | 0.4390 | -939.2 | -607.0 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -16.86 | 214.74 | -23.00 | 118.67 | 0.4279 | -716.0 | -635.6 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -16.58 | 214.70 | -23.03 | 118.04 | 0.4266 | -940.0 | -843.0 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -20.06 | 214.06 | -23.67 | 124.48 | 0.4594 | -962.0 | -816.6 | |
| 0.00 | 3.80 | 0.00 | 2.11 | -19.00 | 214.09 | -23.64 | 122.46 | 0.4513 | -936.0 | -733.7 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.67 | 214.42 | -23.31 | 117.96 | 0.4310 | -401.0 | -385.1 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -20.05 | 213.85 | -23.88 | 124.26 | 0.4620 | -702.0 | -568.2 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -16.87 | 214.15 | -23.58 | 118.16 | 0.4360 | -715.0 | -524.7 | |
| 0.00 | 1.86 | 0.00 | 1.05 | -20.26 | 212.87 | -24.86 | 123.72 | 0.4762 | -900.0 | -581.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -21.09 | 212.58 | -25.16 | 124.97 | 0.4860 | -912.0 | -658.9 | |
| 0.00 | 1.95 | 0.00 | 1.09 | -18.71 | 212.95 | -24.78 | 120.83 | 0.4643 | -802.0 | -647.6 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -20.38 | 212.67 | -25.06 | 123.75 | 0.4795 | -733.0 | -628.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -18.95 | 212.77 | -24.96 | 121.14 | 0.4683 | -757.0 | -633.0 | |
| 0.00 | 2.03 | 0.00 | 1.17 | -21.13 | 210.34 | -27.39 | 123.07 | 0.5142 | 546.0 | 471.1 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -21.40 | 210.24 | -27.49 | 123.48 | 0.5173 | 670.0 | 457.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -18.09 | 210.65 | -27.08 | 117.78 | 0.4911 | -708.0 | -608.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
