SDO HMI 2014-04-16 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.18 | 216.29 | 15.37 | 126.37 | 12.07 | 262.68 | 26.60 | 304.25 | 0.5303 | -589.7 | -369.5 | |
|
previous
or next observation for the same group /

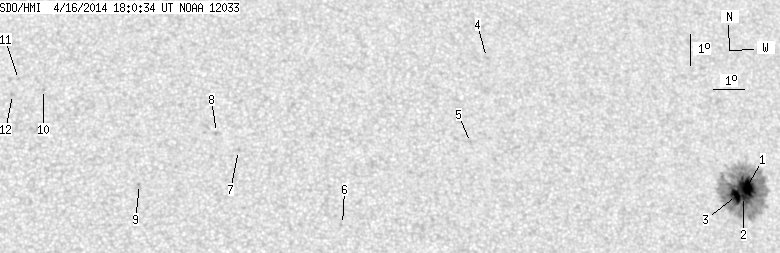

back to the solar disc SDO HMI 2014-04-16 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.86 | 203.90 | 8.74 | 119.72 | 12.11 | 263.68 | 27.61 | 302.78 | 0.5411 | -1245.1 | -428.9 | |
| 3.18 | -1.00 | 1.87 | -1.00 | 11.82 | 263.55 | 27.47 | 302.45 | 0.5372 | -1315.5 | 999999 | |
| 8.14 | -1.00 | 4.76 | -1.00 | 11.84 | 263.31 | 27.23 | 302.71 | 0.5343 | -1460.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 15.93 | 255.30 | 19.23 | 318.68 | 0.4815 | 641.0 | 532.1 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 13.19 | 254.53 | 18.45 | 315.68 | 0.4429 | 358.0 | 421.7 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 10.49 | 250.25 | 14.18 | 318.53 | 0.3653 | 574.0 | 573.6 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 12.76 | 247.09 | 11.01 | 329.11 | 0.3645 | 754.0 | 636.3 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 13.31 | 246.42 | 10.35 | 331.42 | 0.3670 | 680.0 | 528.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 11.63 | 243.96 | 7.88 | 335.42 | 0.3243 | 770.0 | 678.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 14.62 | 241.06 | 4.98 | 346.26 | 0.3552 | 775.0 | 584.4 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 14.94 | 240.28 | 4.21 | 348.51 | 0.3575 | 608.0 | 524.7 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 14.46 | 240.09 | 4.01 | 348.76 | 0.3491 | 760.0 | 658.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
