SDO HMI 2014-04-16 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.85 | 389.90 | 35.80 | 196.88 | -9.46 | 246.23 | 10.15 | 246.26 | 0.1905 | 464.4 | 155.6 | |
|
previous
or next observation for the same group /

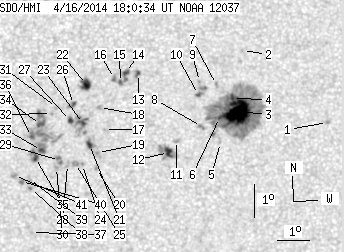

back to the solar disc SDO HMI 2014-04-16 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.09 | -9.42 | 251.31 | 15.24 | 254.51 | 0.2703 | 947.0 | 688.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -7.31 | 248.58 | 12.50 | 261.00 | 0.2184 | 774.0 | 602.7 | |
| 38.39 | 198.77 | 19.51 | 100.99 | -9.15 | 248.48 | 12.40 | 252.71 | 0.2231 | 1450.2 | 493.5 | |
| 2.74 | -3.00 | 1.39 | -3.00 | -8.76 | 248.31 | 12.23 | 254.22 | 0.2186 | 950.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -10.09 | 247.98 | 11.91 | 247.95 | 0.2201 | 736.0 | 584.6 | |
| 0.27 | -3.00 | 0.13 | -3.00 | -9.34 | 247.92 | 11.85 | 251.16 | 0.2151 | 1162.3 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.12 | -8.35 | 247.80 | 11.72 | 255.55 | 0.2086 | 870.0 | 647.3 | |
| 0.00 | 2.83 | 0.00 | 1.43 | -9.62 | 247.37 | 11.30 | 249.08 | 0.2077 | 1045.0 | 784.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.27 | 247.27 | 11.20 | 255.35 | 0.1995 | 860.0 | 627.6 | |
| 0.80 | 7.17 | 0.40 | 3.62 | -8.66 | 247.25 | 11.18 | 253.42 | 0.2008 | 1101.4 | 884.1 | |
| 0.00 | 3.27 | 0.00 | 1.65 | -10.06 | 246.61 | 10.53 | 245.73 | 0.1984 | 135.0 | 182.5 | |
| 4.60 | 16.81 | 2.32 | 8.49 | -10.42 | 246.37 | 10.30 | 243.55 | 0.1973 | -1103.8 | -712.6 | |
| 0.97 | 4.07 | 0.49 | 2.04 | -8.06 | 245.38 | 9.31 | 253.97 | 0.1674 | -904.2 | -704.0 | |
| 1.86 | 8.58 | 0.93 | 4.31 | -8.03 | 244.98 | 8.91 | 253.48 | 0.1606 | -1113.1 | -839.4 | |
| 0.71 | -14.00 | 0.36 | -14.00 | -8.34 | 244.83 | 8.76 | 251.40 | 0.1597 | -1071.4 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.73 | -8.22 | 244.65 | 8.57 | 251.77 | 0.1560 | -1220.0 | -785.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.76 | 244.37 | 8.30 | 242.09 | 0.1617 | -798.0 | -520.1 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.10 | 244.20 | 8.13 | 245.44 | 0.1542 | 210.0 | 106.6 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -10.45 | 244.17 | 8.10 | 237.75 | 0.1646 | -922.0 | -795.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -10.94 | 244.16 | 8.08 | 235.23 | 0.1688 | -1013.0 | -765.4 | |
| 2.21 | 5.75 | 1.11 | 2.88 | -10.22 | 243.92 | 7.85 | 238.23 | 0.1588 | -1218.7 | -884.9 | |
| 6.46 | 9.55 | 3.23 | 4.78 | -8.41 | 243.79 | 7.72 | 248.72 | 0.1432 | 1123.0 | 736.0 | |
| 1.50 | 21.94 | 0.75 | 10.99 | -9.58 | 243.72 | 7.65 | 241.18 | 0.1505 | -1135.2 | -838.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.82 | 243.72 | 7.65 | 234.36 | 0.1615 | -901.0 | -757.8 | |
| 0.00 | 3.89 | 0.00 | 1.95 | -10.79 | 243.50 | 7.43 | 233.73 | 0.1582 | -816.0 | -780.8 | |
| 1.15 | 4.33 | 0.58 | 2.17 | -9.02 | 243.40 | 7.33 | 243.72 | 0.1412 | -832.2 | -784.7 | |
| 1.77 | -23.00 | 0.89 | -23.00 | -9.50 | 243.32 | 7.25 | 240.42 | 0.1437 | -1199.8 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.33 | -10.83 | 243.26 | 7.18 | 232.66 | 0.1552 | -748.0 | -686.9 | |
| 0.00 | 5.13 | 0.00 | 2.57 | -10.71 | 243.01 | 6.93 | 232.32 | 0.1505 | -720.0 | -907.0 | |
| 0.00 | 2.03 | 0.00 | 1.02 | -10.92 | 242.92 | 6.85 | 230.85 | 0.1516 | -939.0 | -646.8 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -9.11 | 242.88 | 6.81 | 241.42 | 0.1339 | 898.0 | 620.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.29 | 242.73 | 6.66 | 239.68 | 0.1332 | 799.0 | 650.7 | |
| 2.12 | 59.62 | 1.06 | 29.81 | -10.41 | 242.45 | 6.37 | 231.66 | 0.1398 | -920.0 | -12.4 | |
| 2.30 | -33.00 | 1.15 | -33.00 | -9.63 | 242.40 | 6.33 | 236.22 | 0.1313 | 1099.8 | 999999 | |
| 2.12 | -33.00 | 1.06 | -33.00 | -10.63 | 242.27 | 6.19 | 229.67 | 0.1397 | -1160.5 | 999999 | |
| 0.88 | -33.00 | 0.44 | -33.00 | -9.99 | 242.13 | 6.06 | 232.77 | 0.1311 | 788.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.89 | 242.19 | 6.12 | 218.76 | 0.1667 | 885.0 | 705.9 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -11.56 | 242.13 | 6.06 | 224.21 | 0.1489 | 957.0 | 765.4 | |
| 0.00 | 2.57 | 0.00 | 1.28 | -11.29 | 242.10 | 6.02 | 225.37 | 0.1452 | 736.0 | 642.5 | |
| 0.00 | 2.74 | 0.00 | 1.37 | -11.35 | 241.85 | 5.78 | 223.88 | 0.1430 | 1050.0 | 864.2 | |
| 0.00 | 3.98 | 0.00 | 1.99 | -11.17 | 241.63 | 5.56 | 223.69 | 0.1381 | 1133.0 | 675.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
