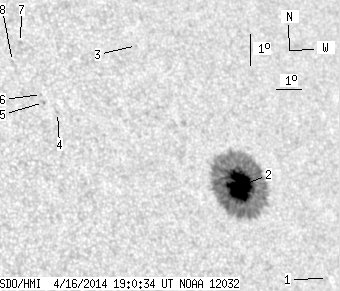

SDO HMI 2014-04-16 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.84 | 286.71 | 28.55 | 195.33 | 11.99 | 275.38 | 39.86 | 293.99 | 0.6884 | -895.1 | -342.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.56 | 9.27 | 278.68 | 43.16 | 288.75 | 0.7153 | -529.0 | -457.0 | |
| 41.84 | 279.27 | 28.55 | 190.57 | 11.93 | 275.52 | 40.00 | 293.82 | 0.6897 | -1195.8 | -363.8 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 16.22 | 272.29 | 36.77 | 301.46 | 0.6762 | -558.0 | -511.0 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 13.88 | 268.83 | 33.31 | 300.70 | 0.6222 | 698.0 | 584.5 | |
| 0.00 | 1.77 | 0.00 | 1.11 | 14.18 | 268.36 | 32.84 | 301.46 | 0.6187 | 678.0 | 580.4 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 14.43 | 268.33 | 32.81 | 301.85 | 0.6200 | 676.0 | 529.2 | |
| 0.00 | 1.95 | 0.00 | 1.23 | 16.07 | 267.84 | 32.32 | 304.52 | 0.6257 | 749.0 | 588.0 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 15.44 | 267.43 | 31.91 | 303.97 | 0.6166 | 603.0 | 487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
