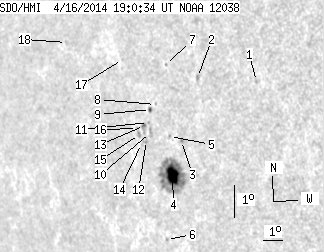

SDO HMI 2014-04-16 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.65 | 94.40 | 13.20 | 79.82 | -13.09 | 181.14 | -54.38 | 102.19 | 0.8123 | 188.1 | 9.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 1.07 | -11.08 | 186.20 | -49.32 | 99.91 | 0.7578 | 491.0 | 358.6 | |
| 0.00 | 2.03 | 0.00 | 1.63 | -10.75 | 183.41 | -52.11 | 99.37 | 0.7881 | 555.0 | 394.4 | |
| 0.00 | 1.24 | 0.00 | 1.02 | -12.58 | 182.09 | -53.43 | 101.61 | 0.8025 | -697.0 | -479.7 | |
| 14.33 | 66.52 | 12.07 | 56.10 | -13.59 | 181.29 | -54.23 | 102.82 | 0.8111 | 826.9 | 153.3 | |
| 0.00 | 1.33 | 0.00 | 1.11 | -12.41 | 181.51 | -54.01 | 101.37 | 0.8083 | -475.0 | -299.3 | |
| 0.00 | 1.15 | 0.00 | 1.00 | -15.48 | 180.26 | -55.26 | 105.06 | 0.8223 | 434.0 | 375.8 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -10.24 | 181.90 | -53.62 | 98.69 | 0.8037 | -519.0 | -460.6 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -11.40 | 181.07 | -54.45 | 100.10 | 0.8124 | -396.0 | -345.0 | |
| 0.88 | 1.95 | 0.75 | 1.66 | -11.53 | 180.76 | -54.76 | 100.25 | 0.8154 | 175.9 | 221.1 | |
| 0.00 | 3.63 | 0.00 | 3.10 | -12.21 | 180.56 | -54.97 | 101.09 | 0.8177 | -741.0 | -557.4 | |
| 0.00 | 0.88 | 0.00 | 0.76 | -11.91 | 180.54 | -54.98 | 100.71 | 0.8177 | -676.0 | -529.4 | |
| 0.00 | 2.03 | 0.00 | 1.75 | -12.43 | 180.27 | -55.25 | 101.35 | 0.8206 | -599.0 | -528.9 | |
| 0.44 | 4.42 | 0.38 | 3.81 | -11.98 | 180.30 | -55.22 | 100.79 | 0.8201 | -737.2 | -562.0 | |
| 0.00 | 1.06 | 0.00 | 0.92 | -12.50 | 179.97 | -55.55 | 101.42 | 0.8235 | -488.0 | -464.7 | |
| 0.00 | 2.48 | 0.00 | 2.15 | -12.23 | 179.95 | -55.57 | 101.08 | 0.8236 | -585.0 | -398.6 | |
| 0.00 | 1.24 | 0.00 | 1.08 | -12.04 | 179.90 | -55.62 | 100.85 | 0.8240 | -466.0 | -314.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -9.92 | 179.69 | -55.83 | 98.27 | 0.8257 | 498.0 | 437.7 | |
| 0.00 | 1.33 | 0.00 | 1.25 | -9.16 | 176.71 | -58.82 | 97.39 | 0.8537 | 61.0 | 102.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
