SDO HMI 2014-04-16 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.03 | 818.13 | 92.54 | 418.87 | 4.28 | 245.36 | 10.39 | 314.49 | 0.2497 | -153.9 | -126.2 | |
|
previous
or next observation for the same group /

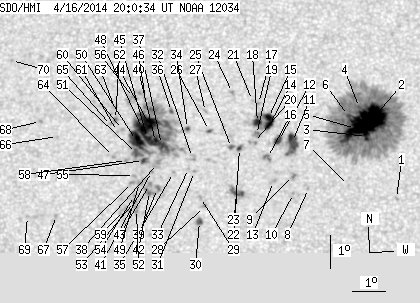

back to the solar disc SDO HMI 2014-04-16 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.73 | 2.31 | 248.97 | 14.00 | 298.80 | 0.2771 | -629.0 | -531.4 | |
| 44.94 | 433.66 | 23.25 | 224.07 | 4.76 | 248.29 | 13.33 | 307.37 | 0.2903 | -1411.8 | -413.4 | |
| 3.27 | -2.00 | 1.69 | -2.00 | 4.18 | 248.07 | 13.10 | 306.21 | 0.2813 | -1214.8 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | 5.06 | 247.87 | 12.90 | 309.10 | 0.2878 | -850.3 | 999999 | |
| 27.96 | -2.00 | 14.41 | -2.00 | 4.41 | 247.73 | 12.76 | 307.61 | 0.2792 | -1499.1 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | 4.81 | 247.52 | 12.55 | 309.18 | 0.2806 | -932.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 2.67 | 247.49 | 12.52 | 302.84 | 0.2589 | 741.0 | 523.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 2.56 | 246.26 | 11.29 | 305.25 | 0.2405 | -756.0 | -592.9 | |
| 0.00 | 2.48 | 0.00 | 1.26 | 2.95 | 245.80 | 10.83 | 307.70 | 0.2382 | -916.0 | -781.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 2.40 | 245.79 | 10.82 | 305.85 | 0.2325 | -973.0 | -789.8 | |
| 10.62 | 19.99 | 5.43 | 10.22 | 3.98 | 245.78 | 10.81 | 311.03 | 0.2492 | -1010.0 | -855.6 | |
| 3.80 | 6.90 | 1.94 | 3.52 | 4.00 | 245.35 | 10.38 | 312.26 | 0.2441 | -1104.8 | -555.3 | |
| 0.00 | 2.74 | 0.00 | 1.39 | 2.75 | 245.18 | 10.22 | 308.69 | 0.2280 | -936.0 | -776.1 | |
| 5.22 | 29.37 | 2.67 | 15.00 | 4.49 | 245.08 | 10.12 | 314.45 | 0.2464 | -1161.1 | -657.5 | |
| 4.87 | -14.00 | 2.49 | -14.00 | 4.70 | 245.06 | 10.09 | 315.15 | 0.2486 | -929.4 | 999999 | |
| 0.00 | 4.69 | 0.00 | 2.39 | 3.48 | 245.01 | 10.04 | 311.59 | 0.2337 | -1128.0 | -936.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.12 | 244.76 | 9.79 | 317.19 | 0.2503 | -577.0 | -449.2 | |
| 4.60 | -14.00 | 2.35 | -14.00 | 4.54 | 244.72 | 9.75 | 315.68 | 0.2427 | -1159.8 | 999999 | |
| 0.00 | 4.25 | 0.00 | 2.17 | 4.18 | 244.68 | 9.71 | 314.71 | 0.2378 | -893.0 | -916.0 | |
| 0.00 | 2.57 | 0.00 | 1.31 | 3.93 | 244.59 | 9.62 | 314.25 | 0.2337 | -962.0 | -887.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 5.21 | 244.58 | 9.61 | 317.97 | 0.2494 | -510.0 | -464.9 | |
| 1.24 | 2.39 | 0.63 | 1.21 | 3.74 | 244.16 | 9.19 | 314.98 | 0.2263 | -943.5 | -734.2 | |
| 4.16 | 8.94 | 2.11 | 4.53 | 2.37 | 244.08 | 9.11 | 310.59 | 0.2093 | -1081.3 | -756.5 | |
| 0.00 | 2.48 | 0.00 | 1.27 | 5.45 | 243.97 | 9.00 | 320.46 | 0.2457 | -825.0 | -646.0 | |
| 0.88 | 2.03 | 0.45 | 1.03 | 3.77 | 243.91 | 8.94 | 315.84 | 0.2237 | -987.4 | -742.0 | |
| 0.53 | 2.21 | 0.27 | 1.12 | 4.28 | 243.25 | 8.28 | 319.59 | 0.2225 | 754.2 | 605.4 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 4.86 | 243.13 | 8.16 | 321.62 | 0.2289 | -642.0 | -486.1 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 1.96 | 243.07 | 8.11 | 312.43 | 0.1918 | 784.0 | 505.2 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 2.24 | 242.96 | 7.99 | 313.88 | 0.1935 | 673.0 | 523.4 | |
| 1.95 | 3.80 | 0.98 | 1.92 | 1.51 | 242.92 | 7.95 | 311.17 | 0.1845 | 969.9 | 791.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 3.02 | 242.78 | 7.81 | 317.32 | 0.2011 | -822.0 | -650.0 | |
| 0.00 | 4.51 | 0.00 | 2.28 | 3.45 | 242.72 | 7.75 | 318.93 | 0.2059 | -240.0 | -319.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 3.11 | 242.60 | 7.63 | 318.30 | 0.2001 | -638.0 | -356.6 | |
| 0.80 | 198.25 | 0.40 | 100.29 | 4.33 | 242.58 | 7.61 | 322.12 | 0.2160 | 721.3 | 479.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 2.98 | 242.14 | 7.17 | 319.63 | 0.1934 | 678.0 | 465.6 | |
| 0.71 | 2.57 | 0.36 | 1.30 | 4.84 | 242.10 | 7.13 | 325.31 | 0.2183 | 789.2 | 564.7 | |
| 4.95 | -34.00 | 2.50 | -34.00 | 3.83 | 241.78 | 6.81 | 323.73 | 0.2011 | 990.5 | 999999 | |
| 0.00 | 6.81 | 0.00 | 3.44 | 3.25 | 241.66 | 6.69 | 322.47 | 0.1918 | 51.0 | 102.2 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 2.49 | 241.65 | 6.68 | 319.94 | 0.1815 | 1003.0 | 868.2 | |
| 5.13 | -34.00 | 2.59 | -34.00 | 3.92 | 241.60 | 6.63 | 324.73 | 0.2005 | 1098.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 3.01 | 241.47 | 6.50 | 322.46 | 0.1865 | 760.0 | 651.2 | |
| 0.00 | 4.60 | 0.00 | 2.32 | 2.40 | 241.41 | 6.44 | 320.66 | 0.1776 | 976.0 | 908.8 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 2.61 | 241.41 | 6.44 | 321.40 | 0.1804 | 1023.0 | 836.0 | |
| 16.81 | -34.00 | 8.51 | -34.00 | 4.50 | 241.40 | 6.43 | 327.16 | 0.2067 | 1115.2 | 999999 | |
| 5.93 | -34.00 | 3.00 | -34.00 | 4.01 | 241.36 | 6.39 | 325.98 | 0.1994 | 1274.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.23 | 241.31 | 6.34 | 329.33 | 0.2167 | 614.0 | 503.7 | |
| 1.86 | -34.00 | 0.94 | -34.00 | 3.34 | 241.23 | 6.26 | 324.54 | 0.1887 | 1108.8 | 999999 | |
| 10.88 | -34.00 | 5.50 | -34.00 | 4.32 | 241.21 | 6.24 | 327.43 | 0.2024 | 1245.0 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 2.67 | 241.11 | 6.14 | 322.94 | 0.1781 | 1120.0 | 989.1 | |
| 15.84 | -34.00 | 8.00 | -34.00 | 3.95 | 241.03 | 6.06 | 327.22 | 0.1953 | 1284.8 | 999999 | |
| 3.54 | -34.00 | 1.79 | -34.00 | 3.55 | 241.02 | 6.05 | 326.10 | 0.1896 | 1225.0 | 999999 | |
| 0.00 | 4.07 | 0.00 | 2.04 | 1.85 | 241.01 | 6.04 | 320.41 | 0.1659 | 715.0 | 747.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.09 | 240.95 | 5.98 | 321.60 | 0.1685 | 1187.0 | 1018.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.27 | 240.95 | 5.99 | 322.26 | 0.1710 | 1055.0 | 808.2 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 2.88 | 240.96 | 5.99 | 324.32 | 0.1795 | 909.0 | 661.4 | |
| 0.00 | 13.09 | 0.00 | 6.64 | 5.26 | 240.95 | 5.98 | 330.86 | 0.2140 | 894.0 | 667.2 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 2.67 | 240.90 | 5.93 | 323.90 | 0.1759 | 946.0 | 779.4 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 3.34 | 240.72 | 5.75 | 326.82 | 0.1836 | 1024.0 | 850.9 | |
| 0.00 | 5.66 | 0.00 | 2.84 | 1.82 | 240.65 | 5.68 | 322.03 | 0.1615 | 703.0 | 709.4 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 4.28 | 240.61 | 5.64 | 329.94 | 0.1964 | 889.0 | 647.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 4.22 | 240.45 | 5.48 | 330.46 | 0.1942 | 877.0 | 613.1 | |
| 0.00 | 2.21 | 0.00 | 1.12 | 4.58 | 240.40 | 5.43 | 331.62 | 0.1993 | 1173.0 | 1002.4 | |
| 0.00 | 2.74 | 0.00 | 1.39 | 4.95 | 240.37 | 5.40 | 332.59 | 0.2046 | 592.0 | 532.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 3.45 | 240.33 | 5.36 | 329.00 | 0.1818 | 882.0 | 694.3 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 4.40 | 240.27 | 5.30 | 331.73 | 0.1955 | 492.0 | 522.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 4.05 | 238.64 | 3.67 | 338.93 | 0.1783 | 865.0 | 632.1 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 1.65 | 238.60 | 3.63 | 333.01 | 0.1400 | 846.0 | 671.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 4.51 | 238.13 | 3.16 | 342.44 | 0.1828 | 957.0 | 802.7 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 1.62 | 237.72 | 2.75 | 338.77 | 0.1333 | 734.0 | 602.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.37 | 237.26 | 2.29 | 349.06 | 0.2103 | 793.0 | 596.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
