SDO HMI 2014-04-16 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.46 | 701.91 | 58.70 | 360.79 | -15.91 | 224.20 | -10.77 | 137.06 | 0.2614 | 522.5 | 264.0 | |
|
previous
or next observation for the same group /

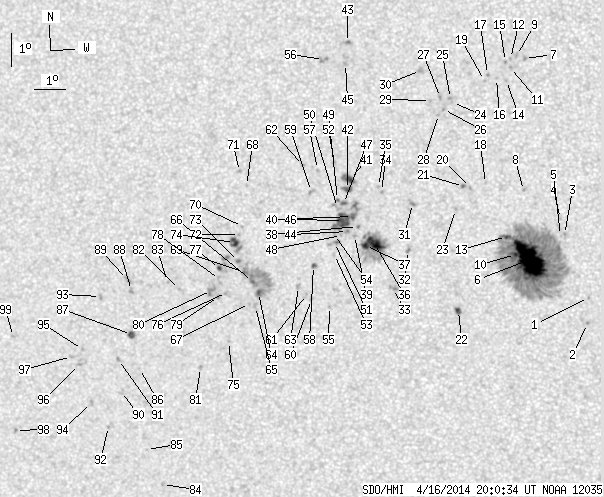

back to the solar disc SDO HMI 2014-04-16 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.43 | 229.50 | -5.47 | 156.32 | 0.2274 | 802.0 | 611.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.23 | 229.44 | -5.53 | 157.51 | 0.2402 | 997.0 | 794.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.49 | 228.80 | -6.16 | 149.29 | 0.2036 | -587.0 | -409.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -15.01 | 228.69 | -6.27 | 147.52 | 0.1975 | -762.0 | -491.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -15.52 | 228.68 | -6.29 | 148.86 | 0.2051 | 553.0 | 428.0 | |
| 57.41 | 363.51 | 29.18 | 184.77 | -16.25 | 227.68 | -7.29 | 146.96 | 0.2245 | 1531.1 | 474.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -10.14 | 227.71 | -7.26 | 123.35 | 0.1496 | 978.0 | 841.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -14.14 | 227.56 | -7.40 | 140.41 | 0.1970 | -891.0 | -751.2 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -10.05 | 227.47 | -7.50 | 121.98 | 0.1522 | 1032.0 | 775.1 | |
| 2.12 | -6.00 | 1.08 | -6.00 | -16.09 | 227.24 | -7.73 | 145.03 | 0.2264 | 1084.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.41 | 227.27 | -7.70 | 123.31 | 0.1583 | 1068.0 | 905.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.14 | 227.28 | -7.69 | 121.86 | 0.1558 | 1106.0 | 909.1 | |
| 2.48 | -6.00 | 1.26 | -6.00 | -15.53 | 226.98 | -7.99 | 142.61 | 0.2216 | 948.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.80 | 227.14 | -7.83 | 124.91 | 0.1639 | 985.0 | 695.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.23 | 227.12 | -7.84 | 121.84 | 0.1588 | 1058.0 | 892.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.73 | 226.83 | -8.14 | 123.58 | 0.1677 | 837.0 | 646.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.61 | 226.56 | -8.41 | 122.11 | 0.1705 | 967.0 | 918.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -13.91 | 226.38 | -8.59 | 135.49 | 0.2077 | -990.0 | -754.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.79 | 226.46 | -8.51 | 122.71 | 0.1736 | 826.0 | 658.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.02 | 225.91 | -9.06 | 134.38 | 0.2147 | -906.0 | -785.1 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -13.99 | 225.69 | -9.28 | 133.60 | 0.2170 | -1098.0 | -935.1 | |
| 2.21 | 4.60 | 1.14 | 2.36 | -17.78 | 225.35 | -9.62 | 143.37 | 0.2680 | 1078.7 | 788.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -14.68 | 225.41 | -9.56 | 135.07 | 0.2285 | -909.0 | -559.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -11.44 | 225.45 | -9.52 | 122.89 | 0.1940 | 704.0 | 505.0 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -11.32 | 225.39 | -9.58 | 122.20 | 0.1938 | 939.0 | 817.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.64 | 225.16 | -9.81 | 123.04 | 0.2000 | 1013.0 | 841.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -11.28 | 225.08 | -9.89 | 121.26 | 0.1980 | 1011.0 | 811.2 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -11.79 | 225.00 | -9.97 | 123.26 | 0.2037 | 878.0 | 691.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -11.37 | 224.76 | -10.21 | 120.87 | 0.2033 | 773.0 | 689.1 | |
| 0.00 | 4.07 | 0.00 | 2.06 | -10.45 | 224.48 | -10.48 | 116.21 | 0.2004 | 887.0 | 745.3 | |
| 0.00 | 3.10 | 0.00 | 1.58 | -14.48 | 224.06 | -10.91 | 130.75 | 0.2430 | 1066.0 | 855.7 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -15.91 | 223.86 | -11.11 | 134.56 | 0.2613 | 952.0 | 781.0 | |
| 0.00 | 3.54 | 0.00 | 1.83 | -17.06 | 223.31 | -11.66 | 136.33 | 0.2812 | 942.0 | 824.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.09 | 223.10 | -11.87 | 127.22 | 0.2517 | 949.0 | 850.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.94 | 223.01 | -11.96 | 126.53 | 0.2513 | 909.0 | 750.6 | |
| 12.92 | 58.39 | 6.65 | 30.06 | -15.67 | 222.78 | -12.18 | 131.35 | 0.2719 | 1349.8 | 479.8 | |
| 3.98 | -36.00 | 2.05 | -36.00 | -15.73 | 222.49 | -12.48 | 130.86 | 0.2762 | 963.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -15.14 | 222.27 | -12.69 | 128.70 | 0.2730 | 1024.0 | 919.7 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -15.42 | 222.16 | -12.81 | 129.26 | 0.2772 | 733.0 | 649.0 | |
| 1.59 | 30.52 | 0.82 | 15.72 | -14.84 | 222.13 | -12.83 | 127.48 | 0.2718 | 1205.9 | 862.7 | |
| 3.89 | 14.33 | 2.00 | 7.36 | -13.71 | 222.11 | -12.86 | 123.88 | 0.2617 | 1165.9 | 822.3 | |
| 2.57 | -41.00 | 1.32 | -41.00 | -14.01 | 222.02 | -12.94 | 124.70 | 0.2655 | 1121.8 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -9.56 | 222.24 | -12.73 | 108.65 | 0.2303 | 997.0 | 835.5 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -15.29 | 221.95 | -13.02 | 128.44 | 0.2788 | 876.0 | 691.2 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -10.20 | 222.15 | -12.82 | 111.13 | 0.2351 | 1003.0 | 767.4 | |
| 11.59 | -40.00 | 5.97 | -40.00 | -14.95 | 221.84 | -13.13 | 127.23 | 0.2769 | 1044.5 | 999999 | |
| 0.97 | 4.16 | 0.50 | 2.14 | -14.43 | 221.87 | -13.10 | 125.72 | 0.2715 | 1169.1 | 845.4 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -15.41 | 221.75 | -13.22 | 128.38 | 0.2826 | 664.0 | 548.8 | |
| 0.35 | -47.00 | 0.18 | -47.00 | -14.31 | 221.69 | -13.28 | 124.98 | 0.2729 | 698.5 | 999999 | |
| 0.00 | 4.42 | 0.00 | 2.28 | -14.55 | 221.67 | -13.30 | 125.70 | 0.2753 | 536.0 | 539.5 | |
| 0.00 | 4.33 | 0.00 | 2.24 | -15.62 | 221.51 | -13.46 | 128.49 | 0.2877 | 715.0 | 683.9 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -13.18 | 221.66 | -13.31 | 121.30 | 0.2635 | 815.0 | 616.1 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -15.98 | 221.48 | -13.49 | 129.47 | 0.2917 | 441.0 | 405.9 | |
| 0.00 | 1.95 | 0.00 | 1.01 | -15.37 | 221.52 | -13.45 | 127.83 | 0.2851 | 709.0 | 591.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -17.57 | 221.20 | -13.77 | 133.04 | 0.3118 | 767.0 | 634.7 | |
| 0.00 | 4.78 | 0.00 | 2.44 | -10.06 | 221.47 | -13.50 | 109.69 | 0.2452 | 629.0 | 710.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -13.38 | 221.11 | -13.86 | 120.99 | 0.2731 | 679.0 | 588.2 | |
| 0.97 | 2.39 | 0.51 | 1.24 | -16.30 | 220.78 | -14.19 | 128.98 | 0.3040 | 870.4 | 732.2 | |
| 0.00 | 3.10 | 0.00 | 1.60 | -14.04 | 220.87 | -14.09 | 122.67 | 0.2819 | 760.0 | 599.2 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -17.34 | 220.63 | -14.33 | 131.38 | 0.3164 | 745.0 | 569.5 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -17.19 | 220.48 | -14.48 | 130.71 | 0.3166 | 652.0 | 524.7 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -13.25 | 220.67 | -14.30 | 119.83 | 0.2784 | 879.0 | 619.5 | |
| 0.00 | 2.92 | 0.00 | 1.52 | -16.93 | 220.25 | -14.72 | 129.63 | 0.3171 | 681.0 | 546.6 | |
| 1.33 | 61.40 | 0.70 | 32.23 | -17.08 | 218.93 | -16.04 | 127.75 | 0.3355 | -1108.7 | -600.7 | |
| 0.00 | 3.27 | 0.00 | 1.72 | -17.51 | 218.79 | -16.18 | 128.56 | 0.3413 | -684.0 | -537.1 | |
| 0.71 | -64.00 | 0.37 | -64.00 | -16.74 | 218.76 | -16.21 | 126.63 | 0.3345 | -1234.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -17.41 | 218.60 | -16.37 | 128.03 | 0.3428 | -881.0 | -770.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.81 | 218.80 | -16.17 | 118.75 | 0.3097 | 749.0 | 529.8 | |
| 0.53 | -64.00 | 0.28 | -64.00 | -16.46 | 218.52 | -16.44 | 125.55 | 0.3351 | -1160.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -15.05 | 218.58 | -16.39 | 121.94 | 0.3225 | -853.0 | -693.1 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -13.38 | 218.61 | -16.36 | 117.22 | 0.3095 | 970.0 | 731.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -15.29 | 218.46 | -16.51 | 122.42 | 0.3261 | -935.0 | -782.8 | |
| 0.44 | -64.00 | 0.23 | -64.00 | -16.12 | 218.36 | -16.61 | 124.43 | 0.3344 | -1144.0 | 999999 | |
| 4.60 | 10.53 | 2.41 | 5.52 | -15.53 | 218.28 | -16.69 | 122.79 | 0.3306 | -1111.2 | -884.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -18.56 | 217.79 | -17.18 | 129.43 | 0.3640 | -1038.0 | -751.6 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -17.06 | 217.88 | -17.09 | 126.05 | 0.3490 | -809.0 | -669.9 | |
| 1.15 | 8.94 | 0.61 | 4.71 | -16.31 | 217.72 | -17.25 | 123.99 | 0.3448 | -1017.5 | -831.6 | |
| 0.00 | 3.72 | 0.00 | 1.96 | -16.65 | 217.69 | -17.28 | 124.78 | 0.3480 | -428.0 | -745.4 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -17.17 | 217.60 | -17.36 | 125.92 | 0.3537 | -984.0 | -864.1 | |
| 0.00 | 6.10 | 0.00 | 3.23 | -16.98 | 217.39 | -17.58 | 125.16 | 0.3548 | -1073.0 | -881.4 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -19.34 | 216.77 | -18.20 | 129.61 | 0.3841 | -893.0 | -728.0 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -16.92 | 216.34 | -18.63 | 123.58 | 0.3684 | -949.0 | -683.6 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.66 | 215.97 | -19.00 | 122.50 | 0.3714 | -723.0 | -638.8 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -22.95 | 214.98 | -19.98 | 134.13 | 0.4403 | -726.0 | -574.8 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -21.83 | 214.60 | -20.37 | 131.60 | 0.4339 | -603.0 | -448.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -19.31 | 214.72 | -20.25 | 126.79 | 0.4097 | -557.0 | -426.2 | |
| 2.65 | 4.16 | 1.44 | 2.25 | -18.25 | 214.58 | -20.39 | 124.39 | 0.4027 | -1037.4 | -805.1 | |
| 0.00 | 2.39 | 0.00 | 1.28 | -16.90 | 214.74 | -20.23 | 121.58 | 0.3900 | -842.0 | -759.7 | |
| 0.00 | 2.92 | 0.00 | 1.57 | -16.56 | 214.64 | -20.32 | 120.69 | 0.3888 | -833.0 | -818.7 | |
| 0.00 | 2.74 | 0.00 | 1.50 | -20.00 | 214.01 | -20.96 | 127.34 | 0.4246 | -636.0 | -602.6 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -19.00 | 214.04 | -20.93 | 125.36 | 0.4159 | -863.0 | -746.9 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -21.07 | 213.40 | -21.57 | 128.70 | 0.4414 | -702.0 | -604.7 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -17.05 | 213.68 | -21.29 | 120.75 | 0.4056 | -851.0 | -654.3 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -20.30 | 212.93 | -22.04 | 126.69 | 0.4407 | -903.0 | -703.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -18.65 | 212.86 | -22.11 | 123.31 | 0.4285 | -778.0 | -624.5 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -19.11 | 212.69 | -22.28 | 124.07 | 0.4342 | -787.0 | -671.2 | |
| 0.00 | 1.95 | 0.00 | 1.07 | -18.85 | 212.45 | -22.52 | 123.30 | 0.4354 | -800.0 | -599.8 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -21.07 | 210.14 | -24.83 | 125.24 | 0.4818 | 843.0 | 679.2 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -18.16 | 210.55 | -24.42 | 120.07 | 0.4559 | -751.0 | -621.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
