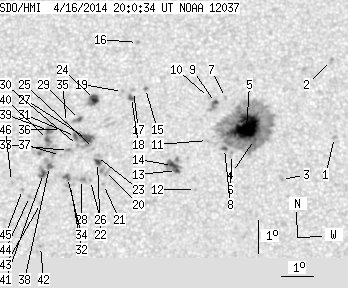

SDO HMI 2014-04-16 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.12 | 361.13 | 38.09 | 183.27 | -9.40 | 246.66 | 11.69 | 249.57 | 0.2140 | 354.7 | 207.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 0.92 | -9.39 | 251.35 | 16.38 | 255.52 | 0.2886 | 824.0 | 608.6 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -7.08 | 251.16 | 16.19 | 263.52 | 0.2797 | 852.0 | 666.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.70 | 249.73 | 14.76 | 249.45 | 0.2686 | 667.0 | 647.3 | |
| 0.27 | 201.70 | 0.14 | 102.97 | -9.51 | 248.83 | 13.86 | 252.86 | 0.2483 | 938.7 | 474.7 | |
| 39.63 | -4.00 | 20.23 | -4.00 | -9.15 | 248.56 | 13.59 | 254.00 | 0.2425 | 1405.2 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -9.98 | 248.12 | 13.15 | 250.20 | 0.2393 | 635.0 | 590.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -8.27 | 247.87 | 12.90 | 257.06 | 0.2278 | 737.0 | 596.6 | |
| 1.06 | -4.00 | 0.54 | -4.00 | -9.80 | 247.90 | 12.93 | 250.62 | 0.2347 | 814.1 | 999999 | |
| 1.33 | 6.81 | 0.67 | 3.46 | -8.42 | 247.57 | 12.60 | 256.10 | 0.2233 | 1103.5 | 898.9 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -8.28 | 247.34 | 12.38 | 256.54 | 0.2191 | 689.0 | 561.9 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.57 | 247.36 | 12.39 | 250.88 | 0.2249 | 680.0 | 474.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -11.06 | 247.04 | 12.07 | 244.23 | 0.2289 | -767.0 | -608.0 | |
| 1.77 | 15.84 | 0.90 | 8.03 | -10.49 | 246.42 | 11.45 | 245.48 | 0.2156 | -995.5 | -671.5 | |
| 4.87 | -13.00 | 2.47 | -13.00 | -10.34 | 246.29 | 11.32 | 245.89 | 0.2126 | -1041.5 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -8.04 | 245.38 | 10.42 | 255.59 | 0.1857 | -980.0 | -823.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -6.66 | 245.11 | 10.14 | 262.87 | 0.1770 | 853.0 | 682.5 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -8.13 | 245.02 | 10.05 | 254.60 | 0.1800 | -390.0 | -455.6 | |
| 1.33 | 3.01 | 0.67 | 1.51 | -8.32 | 244.96 | 9.99 | 253.54 | 0.1798 | -1057.2 | -812.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -8.14 | 244.68 | 9.71 | 254.10 | 0.1744 | -975.0 | -802.4 | |
| 0.00 | 6.02 | 0.00 | 3.03 | -10.56 | 244.18 | 9.22 | 240.37 | 0.1820 | -591.0 | -747.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.95 | 244.17 | 9.20 | 238.45 | 0.1850 | -876.0 | -686.2 | |
| 2.30 | 3.89 | 1.16 | 1.96 | -10.29 | 243.96 | 8.99 | 241.12 | 0.1764 | -1088.2 | -856.9 | |
| 0.00 | 3.27 | 0.00 | 1.65 | -10.11 | 243.92 | 8.96 | 241.95 | 0.1745 | -827.0 | -730.5 | |
| 5.66 | 10.26 | 2.84 | 5.15 | -8.39 | 243.82 | 8.85 | 251.23 | 0.1615 | 1108.3 | 762.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.87 | 243.83 | 8.86 | 242.95 | 0.1711 | -691.0 | -640.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.84 | 243.76 | 8.79 | 237.87 | 0.1780 | -815.0 | -638.6 | |
| 6.37 | 21.41 | 3.20 | 10.75 | -9.57 | 243.60 | 8.63 | 244.00 | 0.1654 | -1040.9 | -803.0 | |
| 0.00 | 4.69 | 0.00 | 2.36 | -10.81 | 243.48 | 8.51 | 237.19 | 0.1738 | -986.0 | -759.1 | |
| 1.24 | 4.16 | 0.62 | 2.09 | -9.00 | 243.37 | 8.40 | 246.68 | 0.1579 | -853.6 | -712.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.79 | 243.33 | 8.36 | 242.10 | 0.1629 | -877.0 | -761.3 | |
| 1.42 | -27.00 | 0.71 | -27.00 | -9.51 | 243.26 | 8.29 | 243.43 | 0.1598 | -1248.3 | 999999 | |
| 0.00 | 3.10 | 0.00 | 1.56 | -11.00 | 243.14 | 8.18 | 235.24 | 0.1707 | -734.0 | -647.6 | |
| 0.00 | 2.48 | 0.00 | 1.24 | -9.94 | 243.06 | 8.09 | 240.47 | 0.1600 | -906.0 | -745.4 | |
| 1.68 | 3.89 | 0.84 | 1.96 | -10.75 | 243.05 | 8.08 | 236.13 | 0.1670 | -1075.5 | -853.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.10 | 242.98 | 8.01 | 245.12 | 0.1523 | 1010.0 | 746.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -9.31 | 242.83 | 7.86 | 243.43 | 0.1515 | 695.0 | 493.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.09 | 242.81 | 7.84 | 238.88 | 0.1577 | -526.0 | -486.9 | |
| 1.42 | 6.28 | 0.71 | 3.15 | -10.43 | 242.48 | 7.51 | 235.96 | 0.1559 | -929.6 | -374.9 | |
| 0.97 | 26.45 | 0.49 | 13.25 | -9.34 | 242.43 | 7.46 | 242.04 | 0.1457 | 1136.5 | 415.4 | |
| 1.50 | -39.00 | 0.75 | -39.00 | -9.62 | 242.40 | 7.43 | 240.32 | 0.1475 | 1100.9 | 999999 | |
| 2.30 | 6.02 | 1.15 | 3.02 | -10.64 | 242.30 | 7.33 | 234.18 | 0.1554 | -1076.2 | -558.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.85 | 242.26 | 7.30 | 223.86 | 0.1795 | 934.0 | 741.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.55 | 242.23 | 7.26 | 229.36 | 0.1639 | 856.0 | 712.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.34 | 241.89 | 6.92 | 229.01 | 0.1571 | 1004.0 | 790.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.13 | 241.66 | 6.70 | 229.15 | 0.1519 | 906.0 | 772.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.89 | 241.32 | 6.35 | 228.91 | 0.1448 | 752.0 | 537.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
