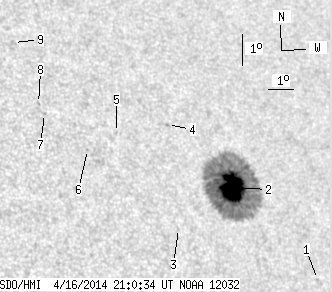

SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.62 | 287.90 | 30.27 | 199.49 | 12.00 | 275.40 | 40.99 | 293.41 | 0.7013 | -806.5 | -327.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.89 | 9.28 | 278.64 | 44.22 | 288.34 | 0.7274 | -617.0 | -441.2 | |
| 43.62 | 277.37 | 30.27 | 192.56 | 11.95 | 275.55 | 41.14 | 293.25 | 0.7028 | -1059.2 | -348.8 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 10.51 | 273.14 | 38.73 | 292.52 | 0.6682 | -593.0 | -419.6 | |
| 0.00 | 1.24 | 0.00 | 0.84 | 13.79 | 273.28 | 38.87 | 296.94 | 0.6859 | -616.0 | -476.1 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 13.41 | 271.21 | 36.79 | 297.67 | 0.6601 | 568.0 | 443.1 | |
| 0.00 | 1.06 | 0.00 | 0.68 | 12.81 | 269.99 | 35.57 | 297.60 | 0.6424 | 654.0 | 503.0 | |
| 0.00 | 1.24 | 0.00 | 0.79 | 13.87 | 268.54 | 34.13 | 300.08 | 0.6317 | 614.0 | 494.9 | |
| 0.00 | 1.33 | 0.00 | 0.85 | 14.18 | 268.37 | 33.96 | 300.63 | 0.6317 | 639.0 | 512.7 | |
| 0.00 | 2.21 | 0.00 | 1.42 | 16.10 | 267.79 | 33.37 | 303.72 | 0.6377 | 547.0 | 511.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
