SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.07 | 693.18 | 58.90 | 355.74 | -15.96 | 224.27 | -10.15 | 139.03 | 0.2551 | 474.1 | 248.3 | |
|
previous
or next observation for the same group /

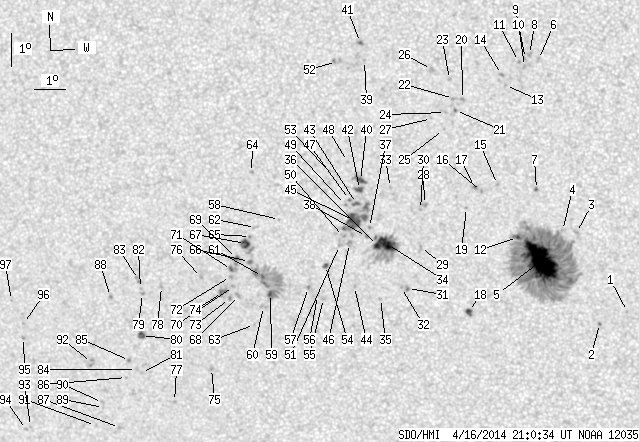

back to the solar disc SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.49 | -17.84 | 230.36 | -4.06 | 162.54 | 0.2255 | 774.0 | 583.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.21 | 229.46 | -4.95 | 159.58 | 0.2363 | 833.0 | 736.0 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -15.41 | 228.82 | -5.60 | 151.42 | 0.1975 | 13.0 | 45.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.34 | 228.38 | -6.04 | 149.42 | 0.2002 | 226.0 | 180.6 | |
| 61.31 | 366.99 | 31.13 | 186.35 | -16.25 | 227.69 | -6.73 | 149.03 | 0.2195 | 1485.5 | 466.5 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -10.15 | 227.77 | -6.64 | 125.70 | 0.1409 | 936.0 | 716.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.08 | 227.60 | -6.81 | 142.53 | 0.1899 | -1015.0 | -842.9 | |
| 0.00 | 2.83 | 0.00 | 1.42 | -9.99 | 227.50 | -6.92 | 123.74 | 0.1433 | 975.0 | 762.9 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -10.11 | 227.37 | -7.04 | 123.96 | 0.1462 | 829.0 | 675.3 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -10.35 | 227.34 | -7.08 | 125.20 | 0.1490 | 945.0 | 824.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.20 | 227.16 | -7.26 | 123.68 | 0.1502 | 961.0 | 855.7 | |
| 1.33 | -5.00 | 0.67 | -5.00 | -15.54 | 226.96 | -7.46 | 144.50 | 0.2163 | 938.5 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -10.92 | 226.74 | -7.68 | 126.04 | 0.1630 | 781.0 | 637.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.59 | 226.62 | -7.79 | 123.93 | 0.1614 | 1075.0 | 903.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.92 | 226.39 | -8.02 | 137.42 | 0.2011 | -995.0 | -689.0 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.12 | 225.88 | -8.53 | 136.40 | 0.2096 | -1028.0 | -825.1 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -14.00 | 225.67 | -8.75 | 135.27 | 0.2106 | -1099.0 | -907.2 | |
| 2.30 | 4.07 | 1.18 | 2.09 | -17.78 | 225.30 | -9.11 | 144.84 | 0.2630 | 1066.5 | 785.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.60 | 225.39 | -9.02 | 136.42 | 0.2212 | -737.0 | -577.8 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -11.32 | 225.39 | -9.02 | 123.76 | 0.1858 | 1057.0 | 879.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -11.65 | 225.16 | -9.25 | 124.58 | 0.1921 | 988.0 | 806.9 | |
| 0.00 | 2.03 | 0.00 | 1.03 | -11.29 | 225.11 | -9.30 | 122.82 | 0.1895 | 939.0 | 767.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.71 | 225.01 | -9.41 | 119.88 | 0.1861 | 899.0 | 706.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -11.71 | 224.85 | -9.57 | 123.96 | 0.1971 | 834.0 | 553.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -12.22 | 224.77 | -9.65 | 125.89 | 0.2031 | 798.0 | 576.6 | |
| 0.00 | 3.72 | 0.00 | 1.88 | -10.40 | 224.46 | -9.96 | 117.10 | 0.1919 | 914.0 | 765.0 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -11.88 | 224.41 | -10.01 | 123.54 | 0.2050 | 630.0 | 464.9 | |
| 0.00 | 3.10 | 0.00 | 1.58 | -14.49 | 224.07 | -10.34 | 132.25 | 0.2359 | 932.0 | 848.3 | |
| 0.00 | 3.36 | 0.00 | 1.72 | -15.80 | 223.88 | -10.54 | 135.72 | 0.2532 | 793.0 | 688.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -14.64 | 223.94 | -10.48 | 132.38 | 0.2392 | 878.0 | 734.0 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -17.04 | 223.39 | -11.02 | 137.85 | 0.2736 | 1032.0 | 885.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -17.01 | 223.20 | -11.21 | 137.29 | 0.2754 | 883.0 | 760.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -13.95 | 223.03 | -11.39 | 127.85 | 0.2438 | 905.0 | 768.9 | |
| 15.31 | 49.90 | 7.86 | 25.64 | -15.68 | 222.84 | -11.58 | 132.78 | 0.2645 | 1275.9 | 431.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -17.33 | 222.51 | -11.91 | 136.45 | 0.2872 | 732.0 | 646.3 | |
| 3.80 | -34.00 | 1.96 | -34.00 | -15.71 | 222.51 | -11.90 | 132.10 | 0.2688 | 958.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -15.15 | 222.29 | -12.12 | 129.97 | 0.2657 | 1126.0 | 986.8 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -15.43 | 222.18 | -12.24 | 130.53 | 0.2700 | 849.0 | 664.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -10.09 | 222.38 | -12.03 | 111.84 | 0.2221 | 820.0 | 632.7 | |
| 2.65 | 7.79 | 1.36 | 3.99 | -13.72 | 222.09 | -12.33 | 125.00 | 0.2543 | 1190.6 | 851.5 | |
| 0.53 | 2.74 | 0.27 | 1.39 | -9.54 | 222.28 | -12.13 | 109.35 | 0.2207 | 970.0 | 750.8 | |
| 2.03 | 4.34 | 1.04 | 2.22 | -13.99 | 222.04 | -12.37 | 125.80 | 0.2575 | 1156.3 | 891.9 | |
| 0.97 | 3.01 | 0.50 | 1.54 | -14.41 | 221.92 | -12.49 | 126.90 | 0.2632 | 1125.1 | 907.7 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -16.95 | 221.70 | -12.72 | 133.64 | 0.2924 | 741.0 | 614.1 | |
| 11.94 | 37.16 | 6.14 | 19.10 | -14.93 | 221.80 | -12.62 | 128.22 | 0.2699 | 1004.9 | 846.2 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -15.63 | 221.62 | -12.79 | 129.90 | 0.2792 | 822.0 | 693.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -14.29 | 221.71 | -12.71 | 126.06 | 0.2649 | 733.0 | 694.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.13 | 221.71 | -12.71 | 122.27 | 0.2545 | 729.0 | 533.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -14.44 | 221.57 | -12.84 | 126.25 | 0.2681 | 736.0 | 601.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -15.41 | 221.45 | -12.97 | 128.91 | 0.2793 | 686.0 | 626.6 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -15.68 | 221.30 | -13.12 | 129.38 | 0.2839 | 582.0 | 482.4 | |
| 0.00 | 3.98 | 0.00 | 2.03 | -10.10 | 221.51 | -12.91 | 110.62 | 0.2360 | 524.0 | 704.2 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -13.42 | 221.12 | -13.29 | 122.14 | 0.2653 | 838.0 | 547.0 | |
| 1.06 | 2.65 | 0.55 | 1.38 | -16.28 | 220.81 | -13.61 | 130.05 | 0.2963 | 881.1 | 640.2 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -17.29 | 220.67 | -13.75 | 132.40 | 0.3086 | 658.0 | 507.0 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -17.20 | 220.48 | -13.94 | 131.79 | 0.3099 | 702.0 | 590.7 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -16.94 | 220.21 | -14.21 | 130.62 | 0.3107 | 694.0 | 606.8 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -14.84 | 219.43 | -14.99 | 123.54 | 0.3012 | -688.0 | -493.2 | |
| 1.59 | 60.87 | 0.83 | 31.86 | -17.10 | 218.96 | -15.46 | 128.76 | 0.3281 | -1094.7 | -548.2 | |
| 0.00 | 3.45 | 0.00 | 1.81 | -17.49 | 218.69 | -15.72 | 129.28 | 0.3353 | -797.0 | -681.6 | |
| 0.88 | -59.00 | 0.46 | -59.00 | -16.57 | 218.74 | -15.67 | 127.07 | 0.3259 | -1180.9 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -15.07 | 218.64 | -15.78 | 122.90 | 0.3141 | -263.0 | -342.3 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -18.04 | 218.35 | -16.07 | 130.00 | 0.3450 | -693.0 | -530.7 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -13.39 | 218.63 | -15.78 | 118.05 | 0.3012 | 923.0 | 728.9 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -15.34 | 218.45 | -15.96 | 123.36 | 0.3189 | -905.0 | -783.9 | |
| 0.00 | 2.30 | 0.00 | 1.21 | -16.10 | 218.36 | -16.06 | 125.24 | 0.3268 | -1063.0 | -927.8 | |
| 4.95 | 11.32 | 2.59 | 5.93 | -15.55 | 218.28 | -16.14 | 123.65 | 0.3231 | -1066.8 | -861.9 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -17.13 | 217.91 | -16.51 | 127.12 | 0.3421 | -935.0 | -772.4 | |
| 0.88 | 9.91 | 0.46 | 5.20 | -16.00 | 217.94 | -16.47 | 124.33 | 0.3315 | -983.6 | -863.8 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -16.85 | 217.77 | -16.65 | 126.22 | 0.3413 | -971.0 | -793.2 | |
| 0.80 | -69.00 | 0.42 | -69.00 | -16.33 | 217.75 | -16.66 | 124.89 | 0.3370 | -1115.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -16.54 | 217.70 | -16.72 | 125.35 | 0.3395 | -831.0 | -762.6 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -17.22 | 217.60 | -16.81 | 126.86 | 0.3468 | -949.0 | -779.3 | |
| 0.00 | 4.95 | 0.00 | 2.62 | -17.02 | 217.39 | -17.02 | 126.08 | 0.3479 | -1056.0 | -884.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -19.35 | 216.78 | -17.63 | 130.48 | 0.3773 | -874.0 | -718.9 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -16.55 | 216.75 | -17.67 | 123.98 | 0.3524 | -909.0 | -654.3 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -20.34 | 215.42 | -19.00 | 130.55 | 0.4034 | -741.0 | -537.0 | |
| 0.00 | 2.39 | 0.00 | 1.27 | -16.78 | 215.40 | -19.02 | 122.77 | 0.3726 | -796.0 | -606.8 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -16.98 | 214.74 | -19.67 | 122.42 | 0.3830 | -895.0 | -743.8 | |
| 2.74 | 4.60 | 1.48 | 2.48 | -18.26 | 214.56 | -19.85 | 125.08 | 0.3958 | -976.0 | -692.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -19.41 | 214.42 | -20.00 | 127.32 | 0.4073 | -864.0 | -661.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.82 | 214.69 | -19.72 | 122.00 | 0.3825 | -788.0 | -652.7 | |
| 0.00 | 3.45 | 0.00 | 1.85 | -16.54 | 214.66 | -19.76 | 121.31 | 0.3809 | -777.0 | -736.6 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -19.31 | 214.26 | -20.15 | 126.92 | 0.4085 | -743.0 | -563.7 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -19.02 | 214.06 | -20.35 | 126.08 | 0.4086 | -913.0 | -762.5 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -19.54 | 213.89 | -20.53 | 126.95 | 0.4152 | -751.0 | -655.3 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -21.09 | 213.43 | -20.99 | 129.43 | 0.4345 | -660.0 | -566.5 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -17.03 | 213.66 | -20.75 | 121.31 | 0.3982 | -877.0 | -777.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -20.45 | 212.97 | -21.44 | 127.65 | 0.4345 | -583.0 | -457.3 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -20.29 | 212.96 | -21.45 | 127.34 | 0.4333 | -923.0 | -693.4 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -21.00 | 212.61 | -21.80 | 128.29 | 0.4436 | -675.0 | -487.6 | |
| 0.00 | 3.01 | 0.00 | 1.65 | -19.04 | 212.76 | -21.65 | 124.60 | 0.4256 | -601.0 | -781.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -20.95 | 210.35 | -24.07 | 125.75 | 0.4713 | 649.0 | 538.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -21.03 | 210.19 | -24.23 | 125.76 | 0.4739 | 735.0 | 548.3 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -18.18 | 210.54 | -23.87 | 120.61 | 0.4486 | -708.0 | -616.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -17.75 | 210.60 | -23.81 | 119.79 | 0.4449 | -703.0 | -608.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.03 | 210.29 | -24.12 | 118.03 | 0.4446 | -657.0 | -567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
