SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.12 | 354.16 | 38.19 | 180.12 | -9.44 | 246.64 | 12.23 | 250.25 | 0.2227 | 525.5 | 159.5 | |
|
previous
or next observation for the same group /

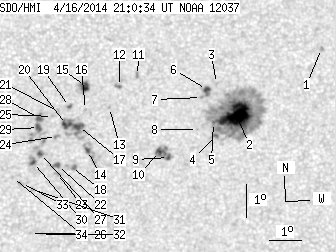

back to the solar disc SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.01 | -7.09 | 251.17 | 16.76 | 263.63 | 0.2892 | 825.0 | 720.8 | |
| 41.85 | 208.18 | 21.41 | 106.53 | -9.17 | 248.57 | 14.16 | 254.48 | 0.2517 | 1347.8 | 456.0 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -8.22 | 247.91 | 13.49 | 257.72 | 0.2374 | 686.0 | 548.2 | |
| 0.97 | -2.00 | 0.50 | -2.00 | -9.79 | 247.94 | 13.52 | 251.40 | 0.2442 | 827.8 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -9.40 | 247.86 | 13.44 | 252.86 | 0.2411 | 951.7 | 999999 | |
| 2.57 | 5.75 | 1.31 | 2.93 | -8.41 | 247.60 | 13.19 | 256.69 | 0.2330 | 1077.6 | 891.8 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -8.65 | 247.46 | 13.04 | 255.52 | 0.2314 | 936.0 | 726.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.62 | 247.37 | 12.95 | 251.39 | 0.2342 | 770.0 | 563.4 | |
| 1.24 | 15.75 | 0.63 | 8.00 | -10.48 | 246.49 | 12.08 | 246.59 | 0.2252 | -924.6 | -792.6 | |
| 2.12 | -9.00 | 1.08 | -9.00 | -10.30 | 246.20 | 11.79 | 246.86 | 0.2196 | -1118.0 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.30 | -8.03 | 245.45 | 11.03 | 256.35 | 0.1959 | -964.0 | -739.9 | |
| 0.35 | 2.48 | 0.18 | 1.25 | -8.37 | 244.90 | 10.49 | 253.96 | 0.1882 | -916.8 | -725.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.00 | 244.61 | 10.19 | 250.24 | 0.1866 | 655.0 | 530.8 | |
| 1.59 | 11.86 | 0.80 | 5.98 | -10.31 | 243.96 | 9.55 | 242.40 | 0.1850 | -1086.7 | -810.7 | |
| 5.40 | 7.52 | 2.71 | 3.78 | -8.38 | 243.85 | 9.44 | 252.31 | 0.1710 | 1033.8 | 743.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.08 | 243.87 | 9.45 | 248.52 | 0.1751 | -692.0 | -385.0 | |
| 4.69 | 29.37 | 2.36 | 14.77 | -9.59 | 243.67 | 9.25 | 245.35 | 0.1752 | -1012.8 | -732.6 | |
| 0.00 | 4.87 | 0.00 | 2.45 | -10.83 | 243.48 | 9.07 | 238.67 | 0.1821 | -763.0 | -713.1 | |
| 0.62 | 2.30 | 0.31 | 1.16 | -8.99 | 243.37 | 8.96 | 247.97 | 0.1667 | -827.1 | -636.9 | |
| 4.34 | -17.00 | 2.18 | -17.00 | -9.54 | 243.29 | 8.88 | 244.78 | 0.1690 | -1100.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -9.15 | 243.04 | 8.62 | 246.34 | 0.1623 | 757.0 | 558.4 | |
| 1.59 | 4.42 | 0.80 | 2.23 | -10.78 | 243.05 | 8.63 | 237.71 | 0.1752 | -1112.8 | -848.8 | |
| 0.00 | 2.03 | 0.00 | 1.02 | -11.02 | 243.05 | 8.64 | 236.56 | 0.1775 | -919.0 | -774.0 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -9.90 | 242.99 | 8.58 | 242.05 | 0.1671 | -996.0 | -785.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.30 | 242.86 | 8.44 | 245.03 | 0.1605 | 788.0 | 603.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -12.87 | 242.61 | 8.20 | 227.05 | 0.1908 | 776.0 | 680.3 | |
| 1.42 | 30.88 | 0.71 | 15.49 | -10.42 | 242.51 | 8.10 | 237.91 | 0.1643 | -895.7 | 104.7 | |
| 2.03 | -27.00 | 1.02 | -27.00 | -9.37 | 242.46 | 8.04 | 243.60 | 0.1548 | 1139.3 | 999999 | |
| 2.57 | -27.00 | 1.29 | -27.00 | -9.64 | 242.43 | 8.02 | 241.96 | 0.1565 | 1058.2 | 999999 | |
| 1.50 | 5.04 | 0.76 | 2.53 | -10.69 | 242.30 | 7.89 | 235.82 | 0.1638 | -1158.3 | -670.8 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -11.51 | 242.29 | 7.88 | 231.78 | 0.1717 | 789.0 | 593.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.84 | 242.27 | 7.85 | 225.96 | 0.1862 | 818.0 | 609.7 | |
| 0.00 | 2.65 | 0.00 | 1.33 | -11.33 | 241.95 | 7.53 | 231.40 | 0.1652 | 772.0 | 741.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.15 | 241.67 | 7.25 | 231.23 | 0.1595 | 964.0 | 709.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
