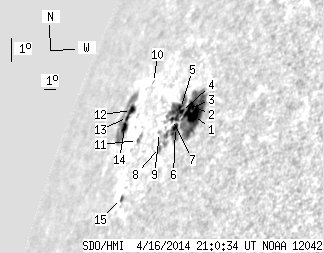

SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.48 | 174.56 | 47.63 | 283.74 | 18.82 | 165.48 | -68.93 | 68.15 | 0.9518 | -243.8 | -160.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.25 | 102.72 | 10.37 | 150.84 | 18.68 | 168.03 | -66.39 | 67.74 | 0.9393 | -883.4 | -195.4 | |
| 3.80 | -1.00 | 5.54 | -1.00 | 19.01 | 167.69 | -66.72 | 67.49 | 0.9416 | -437.0 | 999999 | |
| 0.27 | -1.00 | 0.39 | -1.00 | 18.96 | 167.48 | -66.93 | 67.59 | 0.9427 | -369.0 | 999999 | |
| 1.15 | -1.00 | 1.73 | -1.00 | 18.92 | 166.85 | -67.57 | 67.77 | 0.9460 | 40.5 | 999999 | |
| 0.80 | -1.00 | 1.21 | -1.00 | 19.04 | 166.67 | -67.75 | 67.69 | 0.9471 | 17.6 | 999999 | |
| 3.54 | 19.64 | 5.33 | 29.71 | 18.41 | 166.77 | -67.65 | 68.32 | 0.9458 | -447.8 | -208.7 | |
| 1.06 | -1.00 | 1.65 | -1.00 | 18.72 | 166.25 | -68.16 | 68.11 | 0.9488 | 218.2 | 999999 | |
| 0.00 | 3.36 | 0.00 | 5.25 | 17.85 | 165.85 | -68.56 | 69.10 | 0.9498 | -65.0 | 27.7 | |
| 0.00 | 1.42 | 0.00 | 2.28 | 18.38 | 165.40 | -69.01 | 68.65 | 0.9527 | 367.0 | 389.1 | |
| 0.00 | 0.97 | 0.00 | 1.82 | 20.22 | 163.01 | -71.40 | 67.26 | 0.9655 | 269.0 | 262.8 | |
| 0.53 | 3.80 | 0.95 | 6.74 | 18.30 | 163.40 | -71.02 | 69.14 | 0.9620 | 402.5 | 437.5 | |
| 3.80 | 40.26 | 7.69 | 82.97 | 19.45 | 161.56 | -72.85 | 68.33 | 0.9707 | 150.9 | -210.2 | |
| 1.86 | -12.00 | 3.80 | -12.00 | 19.24 | 161.36 | -73.06 | 68.58 | 0.9713 | -252.2 | 999999 | |
| 4.42 | -12.00 | 8.97 | -12.00 | 18.91 | 161.40 | -73.01 | 68.90 | 0.9708 | -51.8 | 999999 | |
| 0.00 | 2.39 | 0.00 | 4.13 | 16.43 | 163.55 | -70.87 | 71.02 | 0.9595 | 511.0 | 396.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
