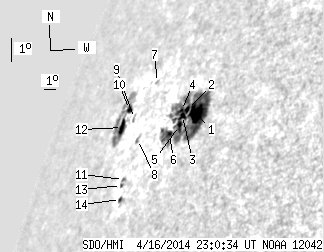

SDO HMI 2014-04-16 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.62 | 193.10 | 57.00 | 296.24 | 18.74 | 165.58 | -67.73 | 67.96 | 0.9456 | -282.0 | -134.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.64 | 139.65 | 22.71 | 195.89 | 18.75 | 168.04 | -65.27 | 67.41 | 0.9331 | -761.8 | -171.4 | |
| 1.95 | -1.00 | 2.76 | -1.00 | 18.96 | 167.18 | -66.13 | 67.40 | 0.9383 | -69.8 | 999999 | |
| 2.04 | -1.00 | 2.90 | -1.00 | 18.79 | 166.91 | -66.40 | 67.64 | 0.9395 | -294.4 | 999999 | |
| 1.33 | -1.00 | 1.92 | -1.00 | 18.97 | 166.69 | -66.62 | 67.51 | 0.9410 | 263.0 | 999999 | |
| 3.89 | -1.00 | 5.54 | -1.00 | 18.46 | 166.93 | -66.38 | 67.98 | 0.9390 | -473.5 | 999999 | |
| 2.04 | -1.00 | 2.97 | -1.00 | 18.26 | 166.27 | -67.04 | 68.34 | 0.9423 | -127.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 2.58 | 20.17 | 163.51 | -69.79 | 66.98 | 0.9584 | 347.0 | 358.8 | |
| 0.00 | 2.65 | 0.00 | 4.45 | 18.33 | 163.41 | -69.90 | 68.88 | 0.9569 | 467.0 | 392.7 | |
| 0.00 | 2.57 | 0.00 | 4.62 | 19.11 | 162.37 | -70.94 | 68.30 | 0.9624 | 397.0 | 372.6 | |
| 2.30 | 40.62 | 4.37 | 78.58 | 19.49 | 161.47 | -71.84 | 68.10 | 0.9666 | 198.5 | -200.2 | |
| 0.00 | 2.21 | 0.00 | 3.70 | 17.06 | 163.22 | -70.09 | 70.22 | 0.9565 | 304.0 | 325.6 | |
| 6.19 | -10.00 | 11.80 | -10.00 | 18.91 | 161.36 | -71.95 | 68.70 | 0.9666 | -10.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 2.36 | 16.87 | 163.20 | -70.11 | 70.42 | 0.9564 | 404.0 | 437.8 | |
| 1.24 | 2.48 | 2.03 | 4.06 | 16.40 | 163.50 | -69.81 | 70.85 | 0.9545 | 345.1 | 279.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
