SDO HMI 2014-04-17 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.23 | 89.76 | 17.50 | 70.73 | -13.18 | 181.00 | -51.21 | 102.56 | 0.7797 | 293.2 | 88.8 | |
|
previous
or next observation for the same group /

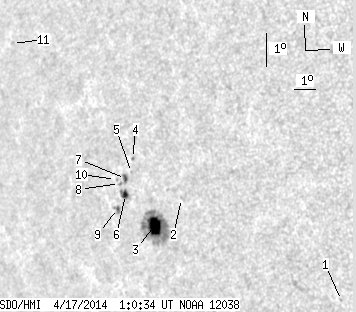

back to the solar disc SDO HMI 2014-04-17 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.42 | -16.37 | 189.06 | -43.15 | 108.05 | 0.6924 | -549.0 | -487.3 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -12.81 | 182.80 | -49.40 | 102.20 | 0.7598 | 561.0 | 497.0 | |
| 16.47 | 68.16 | 12.89 | 53.37 | -13.53 | 181.29 | -50.92 | 103.01 | 0.7768 | 888.1 | 222.1 | |
| 0.00 | 1.24 | 0.00 | 0.98 | -11.44 | 180.78 | -51.42 | 100.29 | 0.7810 | 493.0 | 335.5 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -11.85 | 180.62 | -51.58 | 100.81 | 0.7829 | -577.0 | -490.3 | |
| 3.01 | 6.55 | 2.41 | 5.26 | -12.49 | 180.15 | -52.06 | 101.60 | 0.7883 | -787.2 | -548.5 | |
| 1.86 | 4.07 | 1.48 | 3.25 | -12.01 | 180.28 | -51.92 | 101.00 | 0.7866 | -737.2 | -554.3 | |
| 0.00 | 1.15 | 0.00 | 0.93 | -12.14 | 179.94 | -52.26 | 101.14 | 0.7902 | -586.0 | -544.7 | |
| 0.89 | 4.34 | 0.72 | 3.52 | -12.88 | 179.63 | -52.58 | 102.06 | 0.7939 | -753.1 | -578.6 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -12.01 | 179.78 | -52.43 | 100.96 | 0.7919 | -300.0 | -338.8 | |
| 0.00 | 1.42 | 0.00 | 1.27 | -7.53 | 175.41 | -56.80 | 95.41 | 0.8354 | 224.0 | 224.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
