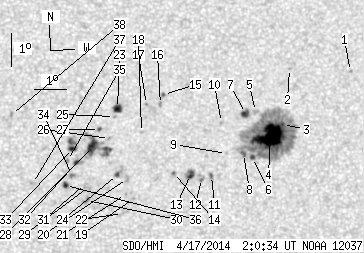

SDO HMI 2014-04-17 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.95 | 324.67 | 36.02 | 167.26 | -9.34 | 247.00 | 15.34 | 254.26 | 0.2722 | 340.6 | 197.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.60 | -7.11 | 251.23 | 19.57 | 264.13 | 0.3356 | 665.0 | 573.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -7.08 | 249.27 | 17.62 | 263.82 | 0.3035 | 769.0 | 604.0 | |
| 0.97 | 200.71 | 0.51 | 104.16 | -8.77 | 249.12 | 17.47 | 258.21 | 0.3044 | 822.1 | 463.1 | |
| 38.07 | -3.00 | 19.76 | -3.00 | -9.11 | 248.76 | 17.10 | 256.87 | 0.2995 | 1283.9 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.47 | -8.40 | 248.25 | 16.59 | 258.97 | 0.2891 | 799.0 | 678.3 | |
| 1.42 | -3.00 | 0.73 | -3.00 | -9.79 | 248.22 | 16.56 | 254.25 | 0.2931 | 786.9 | 999999 | |
| 3.45 | 5.40 | 1.78 | 2.79 | -8.47 | 247.93 | 16.28 | 258.55 | 0.2841 | 1066.1 | 823.9 | |
| 1.15 | -3.00 | 0.60 | -3.00 | -9.68 | 247.92 | 16.27 | 254.39 | 0.2880 | 914.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -9.69 | 247.38 | 15.73 | 253.90 | 0.2794 | 761.0 | 562.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.76 | 247.18 | 15.53 | 257.05 | 0.2727 | 868.0 | 730.1 | |
| 0.44 | 2.74 | 0.23 | 1.41 | -10.37 | 246.94 | 15.29 | 251.13 | 0.2753 | -838.0 | -673.4 | |
| 0.00 | 3.10 | 0.00 | 1.59 | -10.46 | 246.63 | 14.97 | 250.45 | 0.2708 | -755.0 | -711.3 | |
| 3.19 | 7.17 | 1.64 | 3.68 | -10.35 | 246.27 | 14.62 | 250.46 | 0.2647 | -1009.4 | -818.5 | |
| 0.35 | 1.42 | 0.18 | 0.73 | -10.30 | 245.74 | 14.08 | 250.01 | 0.2559 | 761.8 | 623.1 | |
| 0.53 | 1.86 | 0.27 | 0.95 | -7.96 | 245.33 | 13.68 | 258.86 | 0.2397 | -883.7 | -746.3 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -8.26 | 245.25 | 13.59 | 257.55 | 0.2393 | -784.0 | -641.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.27 | 244.81 | 13.16 | 257.16 | 0.2321 | -647.0 | -564.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -9.12 | 244.68 | 13.03 | 253.48 | 0.2332 | 739.0 | 452.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -11.11 | 244.51 | 12.86 | 245.25 | 0.2415 | -753.0 | -588.8 | |
| 0.00 | 3.72 | 0.00 | 1.89 | -10.51 | 244.30 | 12.64 | 247.27 | 0.2344 | -671.0 | -653.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -11.00 | 244.26 | 12.60 | 245.28 | 0.2368 | -737.0 | -607.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -11.57 | 244.19 | 12.53 | 242.95 | 0.2398 | -478.0 | -323.4 | |
| 4.52 | 6.82 | 2.29 | 3.46 | -8.41 | 243.91 | 12.26 | 255.73 | 0.2177 | 1023.8 | 707.3 | |
| 1.24 | 5.14 | 0.63 | 2.61 | -10.40 | 243.98 | 12.33 | 247.24 | 0.2287 | -992.0 | -803.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.65 | 243.83 | 12.17 | 254.55 | 0.2172 | 712.0 | 514.0 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -9.32 | 243.69 | 12.04 | 251.42 | 0.2181 | -609.0 | -404.7 | |
| 0.71 | 1.86 | 0.36 | 0.94 | -9.05 | 243.37 | 11.72 | 252.19 | 0.2116 | -661.6 | -536.8 | |
| 8.15 | 33.47 | 4.13 | 16.97 | -9.57 | 243.17 | 11.52 | 249.56 | 0.2110 | -1038.0 | -643.0 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -10.81 | 243.06 | 11.40 | 243.96 | 0.2171 | -944.0 | -746.1 | |
| 0.00 | 3.36 | 0.00 | 1.71 | -11.20 | 243.04 | 11.39 | 242.30 | 0.2197 | -816.0 | -779.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.69 | 242.99 | 11.34 | 244.34 | 0.2153 | -727.0 | -507.5 | |
| 1.33 | 4.69 | 0.67 | 2.38 | -10.06 | 242.69 | 11.03 | 246.55 | 0.2063 | -700.8 | -604.3 | |
| 2.48 | 12.04 | 1.25 | 6.09 | -9.64 | 242.55 | 10.90 | 248.24 | 0.2016 | 899.4 | 830.3 | |
| 0.00 | 2.74 | 0.00 | 1.39 | -10.45 | 242.58 | 10.92 | 244.58 | 0.2072 | -965.0 | -801.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -10.00 | 242.41 | 10.75 | 246.29 | 0.2016 | 706.0 | 529.3 | |
| 1.95 | 3.10 | 0.99 | 1.57 | -10.76 | 242.37 | 10.71 | 242.82 | 0.2063 | -970.9 | -755.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -10.71 | 241.34 | 9.69 | 240.71 | 0.1904 | 851.0 | 739.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -8.64 | 240.64 | 8.98 | 249.89 | 0.1651 | 1011.0 | 769.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
