SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.57 | 687.18 | 54.55 | 349.47 | -16.03 | 224.70 | -6.41 | 151.71 | 0.2209 | 451.9 | 244.8 | |
|
previous
or next observation for the same group /

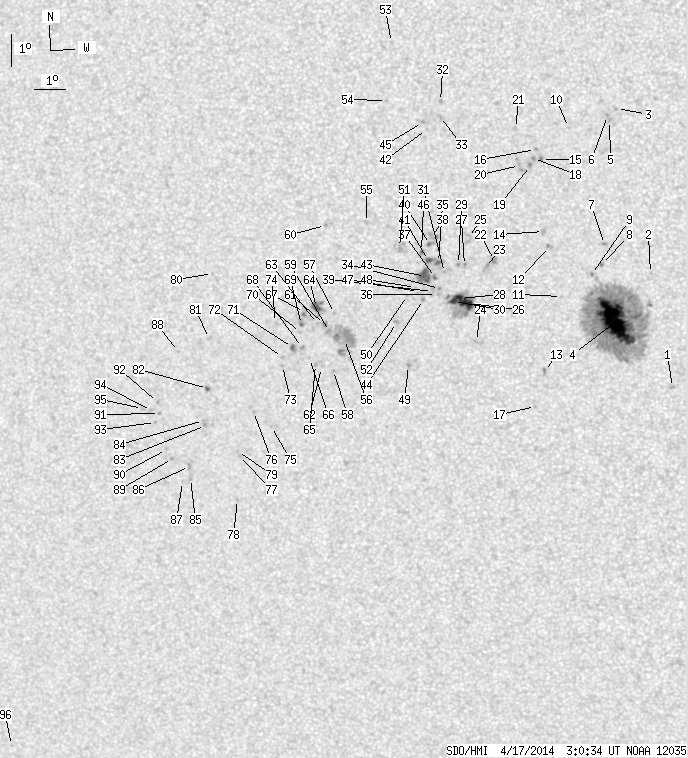

back to the solar disc SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.21 | 0.00 | 1.13 | -18.39 | 229.47 | -1.63 | 173.12 | 0.2264 | 870.0 | 620.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.89 | 228.82 | -2.28 | 166.79 | 0.1691 | 780.0 | 588.2 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.88 | 227.83 | -3.27 | 143.95 | 0.0960 | 901.0 | 760.4 | |
| 70.57 | 391.92 | 35.66 | 198.06 | -16.35 | 227.71 | -3.40 | 163.26 | 0.1983 | 1381.5 | 404.5 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.25 | 227.62 | -3.49 | 144.36 | 0.1033 | 1045.0 | 845.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.09 | 227.56 | -3.55 | 143.01 | 0.1018 | 1116.0 | 933.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -14.00 | 227.41 | -3.70 | 157.16 | 0.1620 | -916.0 | -711.5 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -14.61 | 227.30 | -3.80 | 158.03 | 0.1724 | -961.0 | -758.5 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -14.91 | 226.98 | -4.12 | 157.10 | 0.1793 | 928.0 | 782.6 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -10.45 | 226.36 | -4.75 | 136.95 | 0.1198 | 897.0 | 767.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.57 | 226.03 | -5.08 | 154.15 | 0.1964 | 261.0 | 203.3 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -14.05 | 225.69 | -5.41 | 148.56 | 0.1762 | -897.0 | -812.4 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -17.87 | 225.43 | -5.68 | 156.37 | 0.2360 | 935.0 | 746.6 | |
| 0.00 | 3.01 | 0.00 | 1.51 | -13.59 | 225.52 | -5.59 | 146.28 | 0.1712 | -809.0 | -631.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -11.41 | 225.51 | -5.60 | 137.39 | 0.1419 | 1073.0 | 919.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.10 | 225.33 | -5.78 | 134.98 | 0.1403 | 964.0 | 818.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -18.95 | 225.10 | -6.00 | 157.05 | 0.2549 | -727.0 | -610.5 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -11.37 | 225.26 | -5.84 | 136.02 | 0.1444 | 1267.0 | 984.7 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -11.58 | 225.16 | -5.94 | 136.57 | 0.1482 | 1032.0 | 920.4 | |
| 0.00 | 5.67 | 0.00 | 2.84 | -11.58 | 224.82 | -6.28 | 134.98 | 0.1522 | 827.0 | 742.0 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -10.46 | 224.73 | -6.38 | 128.75 | 0.1407 | 811.0 | 615.7 | |
| 0.00 | 4.16 | 0.00 | 2.10 | -14.45 | 223.96 | -7.14 | 142.52 | 0.1987 | 1070.0 | 884.4 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -14.66 | 223.68 | -7.43 | 142.09 | 0.2045 | 884.0 | 743.4 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -16.92 | 223.30 | -7.80 | 146.93 | 0.2391 | 740.0 | 662.5 | |
| 0.00 | 5.84 | 0.00 | 2.95 | -13.74 | 223.18 | -7.93 | 137.23 | 0.1982 | 463.0 | 617.3 | |
| 10.18 | 51.27 | 5.18 | 26.08 | -15.75 | 223.07 | -8.04 | 143.14 | 0.2254 | 1149.4 | 443.5 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -14.59 | 223.02 | -8.09 | 139.53 | 0.2107 | 796.0 | 707.5 | |
| 5.22 | -26.00 | 2.66 | -26.00 | -15.60 | 222.82 | -8.28 | 141.89 | 0.2259 | 1260.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.56 | 222.83 | -8.27 | 138.79 | 0.2124 | 954.0 | 815.1 | |
| 3.10 | -26.00 | 1.58 | -26.00 | -15.69 | 222.63 | -8.48 | 141.51 | 0.2291 | 1029.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -14.80 | 222.38 | -8.72 | 138.07 | 0.2204 | 859.0 | 655.2 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -9.61 | 222.44 | -8.67 | 116.30 | 0.1665 | 921.0 | 778.4 | |
| 0.00 | 2.83 | 0.00 | 1.42 | -10.07 | 222.42 | -8.68 | 118.69 | 0.1702 | 832.0 | 709.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.28 | 222.20 | -8.90 | 138.99 | 0.2285 | 992.0 | 860.0 | |
| 0.71 | 9.30 | 0.36 | 4.72 | -14.49 | 222.21 | -8.90 | 136.53 | 0.2187 | 1197.1 | 897.0 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -15.46 | 222.10 | -9.00 | 139.20 | 0.2319 | 515.0 | 529.5 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -14.94 | 222.09 | -9.01 | 137.62 | 0.2256 | 1114.0 | 980.4 | |
| 0.00 | 4.43 | 0.00 | 2.24 | -13.70 | 222.05 | -9.05 | 133.35 | 0.2112 | 644.0 | 876.6 | |
| 0.00 | 4.16 | 0.00 | 2.12 | -15.37 | 221.98 | -9.13 | 138.55 | 0.2321 | 652.0 | 589.7 | |
| 0.00 | 3.36 | 0.00 | 1.71 | -13.94 | 221.98 | -9.13 | 133.97 | 0.2149 | 1112.0 | 870.6 | |
| 1.68 | -35.00 | 0.85 | -35.00 | -14.42 | 221.89 | -9.21 | 135.35 | 0.2216 | 1111.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.45 | 221.98 | -9.13 | 119.47 | 0.1800 | 787.0 | 595.4 | |
| 8.32 | 16.12 | 4.23 | 8.20 | -14.91 | 221.78 | -9.33 | 136.55 | 0.2288 | 1050.2 | 733.8 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -15.61 | 221.68 | -9.42 | 138.37 | 0.2384 | 764.0 | 617.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.24 | 221.86 | -9.24 | 118.12 | 0.1800 | 859.0 | 788.9 | |
| 0.35 | 2.83 | 0.18 | 1.44 | -14.15 | 221.69 | -9.42 | 133.80 | 0.2209 | 1009.2 | 755.8 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -15.36 | 221.54 | -9.57 | 137.22 | 0.2371 | 290.0 | 429.8 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -15.24 | 221.45 | -9.66 | 136.59 | 0.2366 | 758.0 | 603.1 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -17.63 | 221.10 | -10.01 | 142.01 | 0.2703 | 790.0 | 675.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.48 | 221.18 | -9.92 | 136.55 | 0.2426 | 631.0 | 488.6 | |
| 0.00 | 7.26 | 0.00 | 3.69 | -14.01 | 221.00 | -10.11 | 131.40 | 0.2280 | 760.0 | 644.8 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -16.30 | 220.79 | -10.32 | 137.79 | 0.2570 | 927.0 | 668.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -7.81 | 220.97 | -10.13 | 103.68 | 0.1802 | 752.0 | 585.1 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -9.56 | 220.77 | -10.34 | 112.39 | 0.1923 | 766.0 | 462.0 | |
| 0.00 | 2.39 | 0.00 | 1.22 | -13.23 | 220.00 | -11.11 | 126.13 | 0.2333 | 687.0 | 443.0 | |
| 0.00 | 43.30 | 0.00 | 22.35 | -16.79 | 219.10 | -12.01 | 134.88 | 0.2824 | -440.0 | -505.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -15.99 | 218.83 | -12.28 | 132.10 | 0.2767 | -883.0 | -691.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -17.73 | 218.68 | -12.43 | 136.32 | 0.2981 | -997.0 | -763.9 | |
| 0.00 | 5.05 | 0.00 | 2.61 | -16.53 | 218.63 | -12.47 | 133.16 | 0.2851 | -1058.0 | -815.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -13.30 | 218.70 | -12.41 | 123.52 | 0.2519 | 966.0 | 726.4 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -16.32 | 218.48 | -12.62 | 132.25 | 0.2845 | -1071.0 | -877.2 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -17.63 | 218.30 | -12.81 | 135.24 | 0.3014 | -675.0 | -701.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -16.28 | 218.26 | -12.84 | 131.68 | 0.2869 | -907.0 | -727.7 | |
| 4.78 | 14.61 | 2.47 | 7.54 | -15.79 | 218.26 | -12.84 | 130.33 | 0.2818 | -1086.4 | -731.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -17.54 | 218.11 | -13.00 | 134.60 | 0.3025 | -922.0 | -824.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -17.35 | 217.93 | -13.18 | 133.75 | 0.3026 | -811.0 | -641.5 | |
| 0.00 | 3.19 | 0.00 | 1.65 | -15.93 | 217.87 | -13.24 | 129.91 | 0.2883 | -653.0 | -669.9 | |
| 0.00 | 1.95 | 0.00 | 1.01 | -17.01 | 217.73 | -13.38 | 132.47 | 0.3013 | -1053.0 | -895.9 | |
| 0.71 | 3.45 | 0.37 | 1.79 | -16.30 | 217.75 | -13.36 | 130.66 | 0.2936 | -1138.9 | -812.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -16.54 | 217.70 | -13.41 | 131.21 | 0.2968 | -891.0 | -717.5 | |
| 1.24 | 3.45 | 0.64 | 1.80 | -17.00 | 217.40 | -13.70 | 131.80 | 0.3052 | -1101.9 | -946.9 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -17.30 | 217.06 | -14.05 | 131.88 | 0.3127 | -825.0 | -665.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -17.54 | 217.04 | -14.07 | 132.45 | 0.3155 | -730.0 | -600.0 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -16.22 | 216.91 | -14.19 | 128.82 | 0.3035 | -745.0 | -684.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -19.42 | 216.51 | -14.59 | 135.76 | 0.3421 | -804.0 | -687.8 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -18.94 | 215.96 | -15.14 | 133.71 | 0.3432 | -820.0 | -686.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -20.29 | 215.37 | -15.74 | 135.54 | 0.3648 | -731.0 | -623.1 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -21.66 | 215.15 | -15.96 | 137.86 | 0.3824 | -806.0 | -666.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -20.16 | 215.31 | -15.79 | 135.18 | 0.3641 | -807.0 | -609.6 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -14.67 | 214.99 | -16.11 | 121.36 | 0.3158 | -691.0 | -593.8 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -16.65 | 214.73 | -16.38 | 126.21 | 0.3362 | -801.0 | -591.2 | |
| 0.71 | 1.42 | 0.37 | 0.75 | -18.19 | 214.52 | -16.59 | 129.56 | 0.3533 | -945.2 | -831.8 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -19.33 | 214.33 | -16.77 | 131.80 | 0.3668 | -857.0 | -757.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -19.17 | 214.28 | -16.82 | 131.39 | 0.3659 | -709.0 | -540.0 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -20.96 | 213.64 | -17.46 | 134.08 | 0.3917 | -798.0 | -645.3 | |
| 0.00 | 2.57 | 0.00 | 1.38 | -20.59 | 213.66 | -17.45 | 133.35 | 0.3877 | -826.0 | -740.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -21.05 | 213.36 | -17.74 | 133.81 | 0.3958 | -722.0 | -562.5 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -17.02 | 213.68 | -17.43 | 125.54 | 0.3535 | -819.0 | -625.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -20.32 | 213.11 | -17.99 | 132.00 | 0.3914 | -1005.0 | -813.6 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -20.04 | 212.95 | -18.16 | 131.17 | 0.3906 | -834.0 | -579.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -18.91 | 212.84 | -18.26 | 128.66 | 0.3812 | -856.0 | -712.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -18.57 | 212.82 | -18.29 | 127.87 | 0.3785 | -935.0 | -739.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -19.19 | 212.68 | -18.43 | 129.01 | 0.3859 | -851.0 | -618.7 | |
| 0.00 | 1.86 | 0.00 | 1.00 | -18.81 | 212.59 | -18.52 | 128.08 | 0.3836 | -848.0 | -619.6 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -18.74 | 212.29 | -18.81 | 127.52 | 0.3867 | -711.0 | -631.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -29.26 | 205.68 | -25.42 | 137.70 | 0.5586 | -525.0 | -432.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
