SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.95 | 315.69 | 39.75 | 163.02 | -9.36 | 247.01 | 15.91 | 254.70 | 0.2813 | 354.2 | 199.1 | |
|
previous
or next observation for the same group /

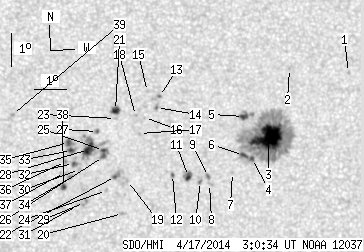

back to the solar disc SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | -7.09 | 251.26 | 20.15 | 264.30 | 0.3451 | 671.0 | 551.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -7.03 | 249.36 | 18.25 | 264.12 | 0.3139 | 854.0 | 703.6 | |
| 42.06 | 193.04 | 21.90 | 100.48 | -9.12 | 248.78 | 17.68 | 257.18 | 0.3088 | 1307.4 | 471.9 | |
| 1.51 | -3.00 | 0.78 | -3.00 | -9.77 | 248.30 | 17.20 | 254.79 | 0.3033 | 820.4 | 999999 | |
| 3.28 | 8.94 | 1.70 | 4.63 | -8.51 | 247.96 | 16.85 | 258.72 | 0.2936 | 1073.1 | 748.0 | |
| 2.48 | -3.00 | 1.29 | -3.00 | -9.69 | 248.01 | 16.91 | 254.84 | 0.2983 | 904.6 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -10.21 | 247.69 | 16.58 | 252.87 | 0.2952 | 248.0 | 251.6 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -10.56 | 246.97 | 15.87 | 251.04 | 0.2855 | -693.0 | -442.5 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -10.35 | 246.93 | 15.83 | 251.71 | 0.2838 | -894.0 | -733.4 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -10.50 | 246.68 | 15.58 | 250.93 | 0.2806 | -889.0 | -698.1 | |
| 3.45 | 7.17 | 1.78 | 3.69 | -10.36 | 246.30 | 15.19 | 251.02 | 0.2738 | -975.7 | -755.4 | |
| 0.53 | 2.04 | 0.27 | 1.05 | -10.31 | 245.79 | 14.68 | 250.64 | 0.2655 | 761.3 | 624.5 | |
| 0.35 | 1.42 | 0.18 | 0.72 | -7.97 | 245.28 | 14.18 | 259.12 | 0.2481 | -879.8 | -781.2 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -8.30 | 245.20 | 14.10 | 257.73 | 0.2477 | -800.0 | -683.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -7.83 | 244.90 | 13.80 | 259.45 | 0.2414 | -732.0 | -455.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -8.61 | 244.84 | 13.73 | 256.20 | 0.2428 | 542.0 | 408.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -9.10 | 244.70 | 13.59 | 254.11 | 0.2424 | 765.0 | 618.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -8.56 | 244.55 | 13.45 | 256.18 | 0.2379 | 827.0 | 595.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -10.52 | 244.38 | 13.27 | 248.11 | 0.2444 | -684.0 | -592.8 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -11.52 | 244.26 | 13.16 | 244.16 | 0.2490 | -818.0 | -537.5 | |
| 3.81 | 5.93 | 1.94 | 3.02 | -8.42 | 243.92 | 12.82 | 256.19 | 0.2270 | 1041.9 | 778.4 | |
| 1.06 | 6.20 | 0.54 | 3.16 | -10.41 | 244.00 | 12.89 | 248.01 | 0.2377 | -1002.3 | -828.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -8.66 | 243.93 | 12.83 | 255.16 | 0.2281 | 579.0 | 434.2 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -10.84 | 243.73 | 12.63 | 245.92 | 0.2362 | -706.0 | -520.8 | |
| 1.33 | 36.75 | 0.68 | 18.66 | -9.63 | 243.59 | 12.49 | 250.63 | 0.2270 | -876.1 | -547.0 | |
| 1.33 | -25.00 | 0.68 | -25.00 | -9.82 | 243.60 | 12.49 | 249.88 | 0.2280 | -1006.7 | 999999 | |
| 0.53 | 1.68 | 0.27 | 0.85 | -9.07 | 243.38 | 12.28 | 252.81 | 0.2208 | -795.7 | -614.3 | |
| 7.79 | -25.00 | 3.96 | -25.00 | -9.61 | 243.12 | 12.02 | 250.07 | 0.2193 | -1070.4 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.76 | -11.22 | 243.06 | 11.95 | 243.28 | 0.2284 | -679.0 | -801.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.22 | 242.86 | 11.76 | 247.05 | 0.2187 | -685.0 | -563.7 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -11.31 | 242.84 | 11.74 | 242.50 | 0.2259 | -632.0 | -496.0 | |
| 1.06 | 5.49 | 0.54 | 2.78 | -10.04 | 242.67 | 11.56 | 247.50 | 0.2146 | -767.2 | -472.3 | |
| 2.13 | 10.27 | 1.08 | 5.20 | -9.65 | 242.59 | 11.49 | 249.11 | 0.2111 | 925.7 | 789.5 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -10.47 | 242.59 | 11.48 | 245.53 | 0.2161 | -968.0 | -845.0 | |
| 2.30 | -33.00 | 1.17 | -33.00 | -9.41 | 242.49 | 11.39 | 250.04 | 0.2081 | 1048.7 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -9.99 | 242.42 | 11.31 | 247.33 | 0.2103 | 762.0 | 557.7 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -10.32 | 242.40 | 11.29 | 245.83 | 0.2121 | -268.0 | -319.7 | |
| 1.95 | 3.10 | 0.99 | 1.57 | -10.77 | 242.38 | 11.28 | 243.84 | 0.2150 | -1051.9 | -791.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -8.60 | 240.73 | 9.63 | 251.30 | 0.1754 | 961.0 | 789.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
