SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.01 | 101.67 | 15.42 | 78.00 | -13.17 | 181.20 | -49.90 | 102.64 | 0.7655 | 264.0 | 97.8 | |
|
previous
or next observation for the same group /

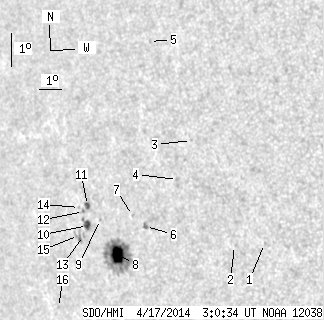

back to the solar disc SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.60 | -13.65 | 187.91 | -43.19 | 104.14 | 0.6882 | 522.0 | 382.6 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -13.63 | 186.63 | -44.48 | 103.90 | 0.7038 | 442.0 | 468.6 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -10.35 | 185.45 | -45.65 | 99.15 | 0.7149 | 563.0 | 450.3 | |
| 0.00 | 1.77 | 0.00 | 1.27 | -11.48 | 184.60 | -46.50 | 100.66 | 0.7257 | 150.0 | 253.4 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -7.25 | 184.10 | -47.01 | 94.83 | 0.7305 | 475.0 | 381.6 | |
| 0.00 | 2.83 | 0.00 | 2.10 | -12.79 | 182.83 | -48.28 | 102.29 | 0.7472 | 683.0 | 520.3 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -12.42 | 182.32 | -48.79 | 101.75 | 0.7527 | -642.0 | -525.8 | |
| 14.61 | 69.78 | 11.19 | 53.46 | -13.54 | 181.30 | -49.81 | 103.13 | 0.7649 | 937.2 | 237.3 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -12.43 | 180.78 | -50.32 | 101.64 | 0.7697 | 184.0 | 199.2 | |
| 3.45 | 7.26 | 2.71 | 5.69 | -12.56 | 180.11 | -50.99 | 101.77 | 0.7770 | -806.7 | -530.0 | |
| 1.95 | 3.63 | 1.52 | 2.83 | -11.96 | 180.27 | -50.83 | 101.00 | 0.7749 | -733.9 | -573.2 | |
| 0.00 | 0.89 | 0.00 | 0.69 | -12.13 | 180.03 | -51.07 | 101.20 | 0.7776 | -568.0 | -539.0 | |
| 0.00 | 2.04 | 0.00 | 1.61 | -12.85 | 179.83 | -51.27 | 102.12 | 0.7802 | -734.0 | -567.7 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -11.99 | 179.87 | -51.23 | 101.02 | 0.7793 | -351.0 | -332.4 | |
| 0.00 | 6.38 | 0.00 | 5.05 | -12.83 | 179.59 | -51.52 | 102.07 | 0.7828 | -805.0 | -493.8 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -14.92 | 177.89 | -53.21 | 104.57 | 0.8018 | 400.0 | 345.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
