SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.57 | 0.00 | 3.68 | 16.50 | 196.10 | -35.01 | 56.72 | 0.6583 | -691.2 | -579.6 | |
|
previous
or next observation for the same group /

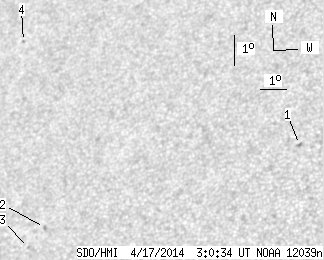

back to the solar disc SDO HMI 2014-04-17 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 1.02 | 17.02 | 203.26 | -27.85 | 50.22 | 0.5834 | -814.0 | -625.9 | |
| 0.00 | 1.59 | 0.00 | 1.06 | 14.84 | 194.17 | -36.94 | 60.51 | 0.6697 | -769.0 | -676.1 | |
| 0.00 | 1.33 | 0.00 | 0.89 | 14.24 | 193.66 | -37.44 | 61.64 | 0.6720 | -660.0 | -544.4 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 21.06 | 191.73 | -39.37 | 54.23 | 0.7319 | -522.0 | -411.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
