SDO HMI 2014-04-17 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.51 | 194.38 | 15.86 | 120.56 | 11.97 | 263.36 | 32.81 | 298.33 | 0.6040 | -774.7 | -381.9 | |
|
previous
or next observation for the same group /

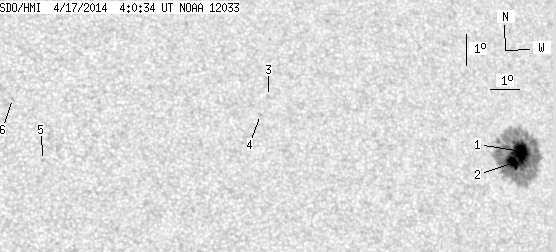

back to the solar disc SDO HMI 2014-04-17 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.27 | 190.40 | 10.76 | 118.33 | 12.08 | 263.71 | 33.16 | 298.15 | 0.6088 | -1031.3 | -401.2 | |
| 8.24 | -1.00 | 5.10 | -1.00 | 11.71 | 263.37 | 32.81 | 297.85 | 0.6024 | -1347.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 13.41 | 254.95 | 24.40 | 308.11 | 0.5127 | 621.0 | 509.5 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 12.83 | 254.62 | 24.06 | 307.55 | 0.5035 | 636.0 | 538.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 11.13 | 247.35 | 16.79 | 314.81 | 0.4012 | 666.0 | 516.9 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 13.07 | 246.48 | 15.92 | 319.61 | 0.4142 | 658.0 | 480.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
