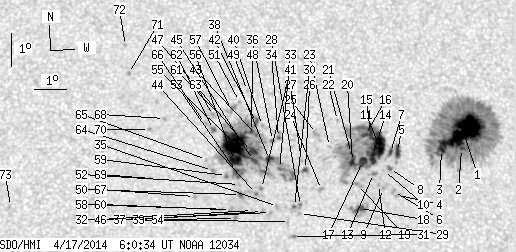

SDO HMI 2014-04-17 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 217.72 | 895.55 | 113.50 | 468.19 | 4.24 | 245.10 | 15.64 | 302.12 | 0.3174 | -93.8 | -170.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.52 | 356.94 | 31.66 | 189.85 | 4.71 | 248.26 | 18.80 | 298.06 | 0.3656 | -1418.7 | -446.9 | |
| 1.15 | -1.00 | 0.61 | -1.00 | 4.22 | 248.18 | 18.72 | 296.96 | 0.3607 | -1017.3 | 999999 | |
| 3.37 | -1.00 | 1.78 | -1.00 | 4.17 | 247.54 | 18.08 | 297.67 | 0.3511 | -1266.6 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.48 | 2.73 | 246.16 | 16.70 | 295.71 | 0.3199 | -811.0 | -654.3 | |
| 4.43 | 14.53 | 2.32 | 7.61 | 4.07 | 246.15 | 16.69 | 299.38 | 0.3302 | -875.0 | -614.3 | |
| 0.00 | 2.13 | 0.00 | 1.11 | 2.85 | 246.00 | 16.54 | 296.26 | 0.3185 | -867.0 | -739.7 | |
| 1.95 | -5.00 | 1.02 | -5.00 | 4.03 | 245.93 | 16.47 | 299.62 | 0.3267 | -959.1 | 999999 | |
| 0.62 | 2.48 | 0.32 | 1.30 | 3.54 | 245.89 | 16.43 | 298.36 | 0.3222 | -945.6 | -819.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 2.93 | 245.69 | 16.23 | 296.94 | 0.3145 | -943.0 | -749.5 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 3.48 | 245.70 | 16.24 | 298.46 | 0.3189 | -700.0 | -611.9 | |
| 23.65 | 169.26 | 12.37 | 88.27 | 4.30 | 245.56 | 16.10 | 300.90 | 0.3237 | -1111.2 | -610.7 | |
| 0.00 | 1.77 | 0.00 | 0.92 | 3.05 | 245.53 | 16.07 | 297.51 | 0.3131 | -970.0 | -703.0 | |
| 0.00 | 3.45 | 0.00 | 1.80 | 3.38 | 245.38 | 15.92 | 298.67 | 0.3135 | -1145.0 | -867.8 | |
| 10.63 | -11.00 | 5.55 | -11.00 | 3.93 | 245.36 | 15.90 | 300.22 | 0.3177 | -1221.8 | 999999 | |
| 5.58 | -11.00 | 2.92 | -11.00 | 4.63 | 245.31 | 15.85 | 302.17 | 0.3231 | -960.2 | 999999 | |
| 3.10 | -11.00 | 1.62 | -11.00 | 4.56 | 245.16 | 15.70 | 302.26 | 0.3203 | -1035.9 | 999999 | |
| 6.38 | -11.00 | 3.32 | -11.00 | 3.74 | 245.04 | 15.58 | 300.20 | 0.3116 | -1234.6 | 999999 | |
| 3.99 | 14.88 | 2.07 | 7.72 | 2.30 | 244.93 | 15.47 | 296.24 | 0.2984 | -1170.1 | -819.8 | |
| 0.00 | 3.45 | 0.00 | 1.80 | 3.03 | 244.88 | 15.42 | 298.48 | 0.3033 | -942.0 | -850.9 | |
| 4.78 | -11.00 | 2.49 | -11.00 | 3.73 | 244.73 | 15.27 | 300.70 | 0.3070 | -1306.5 | 999999 | |
| 2.04 | -11.00 | 1.06 | -11.00 | 3.97 | 244.70 | 15.24 | 301.42 | 0.3088 | -1184.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 4.97 | 244.29 | 14.83 | 304.86 | 0.3121 | -825.0 | -672.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 4.17 | 244.02 | 14.56 | 303.18 | 0.3009 | 345.0 | 207.6 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 2.85 | 243.75 | 14.29 | 299.83 | 0.2855 | -810.0 | -642.6 | |
| 0.00 | 3.45 | 0.00 | 1.79 | 4.56 | 243.62 | 14.17 | 305.00 | 0.2991 | 502.0 | 309.9 | |
| 1.24 | 246.49 | 0.64 | 126.61 | 3.45 | 243.26 | 13.80 | 302.53 | 0.2837 | 746.9 | 445.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 3.72 | 243.14 | 13.68 | 303.56 | 0.2845 | -810.0 | -640.8 | |
| 0.00 | 2.75 | 0.00 | 1.41 | 2.35 | 243.09 | 13.63 | 299.45 | 0.2717 | 720.0 | 587.5 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 2.11 | 243.06 | 13.60 | 298.73 | 0.2691 | 691.0 | 464.4 | |
| 0.53 | 2.66 | 0.27 | 1.37 | 2.32 | 242.91 | 13.45 | 299.69 | 0.2686 | 923.5 | 782.7 | |
| 0.00 | 2.48 | 0.00 | 1.27 | 1.41 | 242.84 | 13.38 | 296.78 | 0.2602 | 741.0 | 523.6 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 1.86 | 242.75 | 13.29 | 298.48 | 0.2625 | 444.0 | 586.5 | |
| 0.53 | -26.00 | 0.27 | -26.00 | 3.46 | 242.46 | 13.00 | 304.18 | 0.2726 | 882.2 | 999999 | |
| 0.62 | 6.82 | 0.32 | 3.52 | 4.41 | 242.44 | 12.98 | 306.99 | 0.2817 | 795.1 | 458.1 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 2.31 | 242.38 | 12.92 | 300.67 | 0.2609 | 876.0 | 748.1 | |
| 0.53 | -34.00 | 0.27 | -34.00 | 4.31 | 242.25 | 12.79 | 307.12 | 0.2782 | 820.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 2.12 | 242.16 | 12.70 | 300.48 | 0.2561 | 890.0 | 698.6 | |
| 3.90 | -26.00 | 2.00 | -26.00 | 3.73 | 242.15 | 12.69 | 305.63 | 0.2710 | 709.9 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 2.15 | 241.91 | 12.45 | 301.07 | 0.2528 | 934.0 | 761.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 4.77 | 241.95 | 12.49 | 309.07 | 0.2789 | 691.0 | 517.9 | |
| 0.00 | 1.95 | 0.00 | 1.00 | 2.84 | 241.89 | 12.43 | 303.43 | 0.2588 | 885.0 | 739.5 | |
| 2.04 | -26.00 | 1.05 | -26.00 | 4.85 | 241.77 | 12.31 | 309.74 | 0.2775 | 800.7 | 999999 | |
| 0.80 | -26.00 | 0.41 | -26.00 | 4.49 | 241.76 | 12.30 | 308.72 | 0.2735 | 834.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 2.69 | 241.74 | 12.28 | 303.26 | 0.2551 | 971.0 | 860.8 | |
| 3.63 | -26.00 | 1.86 | -26.00 | 3.69 | 241.66 | 12.20 | 306.61 | 0.2638 | 692.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 2.17 | 241.61 | 12.15 | 301.80 | 0.2485 | 734.0 | 563.7 | |
| 7.26 | -26.00 | 3.73 | -26.00 | 3.97 | 241.60 | 12.14 | 307.57 | 0.2659 | 647.3 | 999999 | |
| 1.68 | -26.00 | 0.87 | -26.00 | 4.58 | 241.61 | 12.15 | 309.33 | 0.2724 | 853.8 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 5.83 | 241.51 | 12.05 | 312.96 | 0.2851 | 689.0 | 594.6 | |
| 0.80 | 1.95 | 0.41 | 1.00 | 2.65 | 241.24 | 11.78 | 304.23 | 0.2478 | 1186.6 | 1014.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 5.49 | 241.26 | 11.80 | 312.67 | 0.2781 | 602.0 | 488.2 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 2.95 | 241.21 | 11.76 | 305.30 | 0.2504 | 965.0 | 774.8 | |
| 3.19 | -26.00 | 1.63 | -26.00 | 3.35 | 241.13 | 11.67 | 306.77 | 0.2532 | 1192.7 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.08 | 1.92 | 241.08 | 11.62 | 302.08 | 0.2387 | 972.0 | 799.9 | |
| 46.32 | -26.00 | 23.77 | -26.00 | 4.20 | 241.08 | 11.62 | 309.50 | 0.2615 | 1231.1 | 999999 | |
| 12.40 | -26.00 | 6.35 | -26.00 | 3.68 | 241.07 | 11.61 | 307.95 | 0.2559 | 1340.0 | 999999 | |
| 0.00 | 6.47 | 0.00 | 3.33 | 5.24 | 241.01 | 11.55 | 312.63 | 0.2721 | 874.0 | 701.2 | |
| 0.00 | 2.92 | 0.00 | 1.49 | 2.19 | 240.93 | 11.47 | 303.38 | 0.2390 | 902.0 | 790.2 | |
| 0.00 | 2.66 | 0.00 | 1.36 | 3.22 | 240.82 | 11.36 | 307.11 | 0.2477 | 1111.0 | 920.0 | |
| 0.00 | 2.04 | 0.00 | 1.04 | 2.18 | 240.65 | 11.19 | 304.02 | 0.2351 | 885.0 | 694.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 5.05 | 240.66 | 11.20 | 312.97 | 0.2657 | 809.0 | 670.5 | |
| 1.06 | 2.92 | 0.54 | 1.50 | 4.62 | 240.44 | 10.98 | 312.33 | 0.2580 | 1066.5 | 862.0 | |
| 0.00 | 2.30 | 0.00 | 1.18 | 5.04 | 240.45 | 10.99 | 313.52 | 0.2630 | 847.0 | 691.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 3.36 | 240.39 | 10.93 | 308.66 | 0.2435 | 988.0 | 716.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 3.70 | 240.21 | 10.75 | 310.18 | 0.2447 | 821.0 | 725.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 4.80 | 240.20 | 10.74 | 313.49 | 0.2570 | 764.0 | 715.7 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 2.56 | 239.83 | 10.37 | 307.46 | 0.2276 | 891.0 | 741.4 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 4.93 | 238.94 | 9.48 | 317.44 | 0.2438 | 905.0 | 737.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 3.09 | 238.49 | 9.03 | 313.22 | 0.2160 | 937.0 | 763.0 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 4.59 | 238.48 | 9.02 | 317.91 | 0.2341 | 995.0 | 767.2 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 6.29 | 237.86 | 8.40 | 324.34 | 0.2502 | 947.0 | 805.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 7.15 | 237.79 | 8.33 | 326.50 | 0.2615 | 833.0 | 705.2 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 2.20 | 234.23 | 4.78 | 327.90 | 0.1573 | 704.0 | 537.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
