SDO HMI 2014-04-17 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.33 | 644.25 | 47.70 | 326.80 | -16.01 | 224.66 | -4.80 | 158.42 | 0.2095 | 400.8 | 261.9 | |
|
previous
or next observation for the same group /

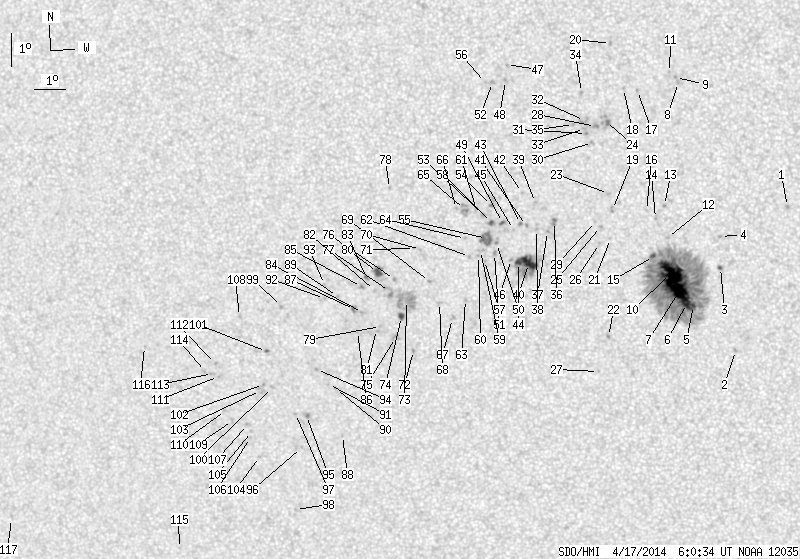

back to the solar disc SDO HMI 2014-04-17 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.75 | -13.97 | 231.13 | 1.67 | 190.78 | 0.1516 | 972.0 | 753.0 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -18.38 | 229.51 | 0.05 | 180.21 | 0.2248 | 866.0 | 654.0 | |
| 0.80 | 1.86 | 0.40 | 0.94 | -15.83 | 229.04 | -0.42 | 177.78 | 0.1812 | -807.0 | -484.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.88 | 229.05 | -0.41 | 177.57 | 0.1648 | 1044.0 | 757.0 | |
| 1.59 | 365.18 | 0.81 | 184.34 | -16.99 | 228.19 | -1.27 | 173.96 | 0.2022 | 935.6 | 438.5 | |
| 7.17 | -5.00 | 3.63 | -5.00 | -16.93 | 227.97 | -1.49 | 172.88 | 0.2016 | 1097.1 | 999999 | |
| 22.50 | -5.00 | 11.36 | -5.00 | -16.53 | 227.75 | -1.71 | 171.56 | 0.1953 | 1439.2 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.20 | 227.78 | -1.68 | 160.80 | 0.0883 | 1011.0 | 880.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.05 | 227.68 | -1.77 | 159.23 | 0.0864 | 1070.0 | 916.8 | |
| 35.61 | -5.00 | 17.95 | -5.00 | -16.00 | 227.48 | -1.98 | 169.72 | 0.1872 | 1555.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.90 | 227.50 | -1.96 | 156.61 | 0.0851 | 955.0 | 719.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -14.90 | 227.40 | -2.06 | 168.05 | 0.1688 | 755.0 | 473.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -13.93 | 227.31 | -2.15 | 166.16 | 0.1527 | -975.0 | -750.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.32 | 227.03 | -2.43 | 165.10 | 0.1605 | -880.0 | -652.8 | |
| 1.51 | -5.00 | 0.76 | -5.00 | -15.48 | 226.95 | -2.51 | 166.41 | 0.1802 | 864.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -14.08 | 226.75 | -2.71 | 163.04 | 0.1578 | 721.0 | 540.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.44 | 226.52 | -2.94 | 149.95 | 0.1012 | 873.0 | 692.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.38 | 226.09 | -3.37 | 146.14 | 0.1042 | 854.0 | 590.2 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -14.04 | 225.70 | -3.76 | 156.96 | 0.1634 | -701.0 | -789.7 | |
| 0.00 | 2.21 | 0.00 | 1.10 | -9.02 | 225.71 | -3.75 | 134.06 | 0.0903 | 909.0 | 752.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -14.92 | 225.62 | -3.84 | 158.57 | 0.1780 | 823.0 | 521.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.93 | 225.49 | -3.97 | 163.07 | 0.2272 | 976.0 | 714.0 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -13.55 | 225.58 | -3.88 | 155.04 | 0.1565 | -898.0 | -699.9 | |
| 0.00 | 8.77 | 0.00 | 4.38 | -11.37 | 225.52 | -3.94 | 146.97 | 0.1240 | 1172.0 | 856.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.56 | 225.31 | -4.15 | 156.19 | 0.1742 | 914.0 | 588.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.07 | 225.27 | -4.19 | 157.17 | 0.1826 | -813.0 | -583.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -19.01 | 225.15 | -4.31 | 163.15 | 0.2464 | -902.0 | -670.1 | |
| 0.00 | 3.01 | 0.00 | 1.50 | -11.52 | 225.21 | -4.25 | 145.64 | 0.1291 | 1011.0 | 907.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.40 | 225.16 | -4.30 | 155.04 | 0.1728 | -591.0 | -236.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -12.00 | 225.11 | -4.35 | 147.08 | 0.1370 | 967.0 | 800.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -11.73 | 224.93 | -4.53 | 144.86 | 0.1348 | 1023.0 | 851.5 | |
| 0.00 | 4.69 | 0.00 | 2.35 | -11.33 | 224.88 | -4.58 | 142.74 | 0.1299 | 683.0 | 799.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.58 | 224.87 | -4.58 | 143.83 | 0.1333 | 964.0 | 815.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -10.49 | 224.80 | -4.66 | 137.85 | 0.1196 | 950.0 | 674.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.45 | 224.54 | -4.92 | 141.32 | 0.1352 | 927.0 | 737.5 | |
| 0.00 | 3.90 | 0.00 | 1.96 | -14.39 | 223.88 | -5.58 | 148.89 | 0.1830 | 1162.0 | 978.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.69 | 223.66 | -5.80 | 148.75 | 0.1894 | 887.0 | 758.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -14.63 | 223.31 | -6.15 | 147.10 | 0.1916 | 853.0 | 563.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -13.81 | 223.31 | -6.15 | 144.51 | 0.1801 | 896.0 | 712.6 | |
| 13.55 | 41.72 | 6.86 | 21.14 | -15.66 | 223.03 | -6.43 | 148.80 | 0.2090 | 1245.6 | 471.4 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -14.50 | 223.01 | -6.45 | 145.45 | 0.1928 | 998.0 | 785.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.50 | 222.91 | -6.55 | 141.75 | 0.1800 | 849.0 | 631.3 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -14.44 | 222.82 | -6.64 | 144.50 | 0.1937 | 1095.0 | 877.2 | |
| 3.01 | -40.00 | 1.53 | -40.00 | -15.63 | 222.72 | -6.74 | 147.50 | 0.2114 | 1087.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.62 | 222.59 | -6.87 | 144.16 | 0.1984 | 893.0 | 747.0 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -15.53 | 222.50 | -6.96 | 146.43 | 0.2121 | 961.0 | 716.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.62 | 222.51 | -6.95 | 121.65 | 0.1407 | 818.0 | 718.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -10.10 | 222.47 | -6.99 | 124.36 | 0.1457 | 1041.0 | 818.4 | |
| 0.80 | 2.13 | 0.40 | 1.07 | -14.40 | 222.26 | -7.20 | 142.18 | 0.1989 | 1114.9 | 894.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -15.04 | 222.05 | -7.41 | 143.35 | 0.2097 | 911.0 | 791.5 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.34 | 221.97 | -7.49 | 143.96 | 0.2146 | 863.0 | 764.0 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -10.16 | 222.07 | -7.39 | 123.23 | 0.1520 | 830.0 | 769.8 | |
| 1.06 | 2.83 | 0.54 | 1.43 | -14.40 | 221.91 | -7.55 | 140.88 | 0.2026 | 1181.5 | 936.6 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -13.88 | 221.93 | -7.53 | 139.23 | 0.1957 | 944.0 | 763.8 | |
| 0.00 | 12.31 | 0.00 | 6.24 | -14.88 | 221.74 | -7.72 | 141.77 | 0.2108 | 992.0 | 981.7 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -10.15 | 221.85 | -7.60 | 122.48 | 0.1551 | 717.0 | 556.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.55 | 221.65 | -7.81 | 143.42 | 0.2207 | 731.0 | 607.3 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -14.15 | 221.67 | -7.79 | 139.20 | 0.2020 | 1075.0 | 882.3 | |
| 0.00 | 2.75 | 0.00 | 1.39 | -15.25 | 221.54 | -7.92 | 142.15 | 0.2177 | 455.0 | 559.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.40 | 221.47 | -7.99 | 142.35 | 0.2205 | 729.0 | 629.5 | |
| 0.00 | 2.04 | 0.00 | 1.03 | -14.00 | 221.46 | -8.00 | 137.92 | 0.2025 | 806.0 | 629.0 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -15.43 | 221.18 | -8.28 | 141.47 | 0.2238 | 733.0 | 547.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.74 | 221.00 | -8.46 | 144.40 | 0.2432 | 764.0 | 663.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.87 | 221.08 | -8.38 | 139.48 | 0.2178 | 735.0 | 512.8 | |
| 0.00 | 7.62 | 0.00 | 3.86 | -13.99 | 221.08 | -8.38 | 136.62 | 0.2068 | 851.0 | 703.6 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.96 | 220.83 | -8.63 | 135.68 | 0.2093 | 607.0 | 499.8 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -17.32 | 220.56 | -8.90 | 144.46 | 0.2553 | 594.0 | 548.8 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -16.82 | 220.17 | -9.29 | 142.08 | 0.2527 | 577.0 | 507.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -16.17 | 219.88 | -9.58 | 139.54 | 0.2474 | 772.0 | 613.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -15.19 | 219.64 | -9.82 | 136.04 | 0.2381 | -650.0 | -470.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.15 | 219.46 | -10.00 | 135.40 | 0.2399 | -681.0 | -361.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -18.28 | 219.25 | -10.21 | 143.04 | 0.2811 | -1027.0 | -888.8 | |
| 0.00 | 32.59 | 0.00 | 16.73 | -16.74 | 219.12 | -10.34 | 138.94 | 0.2629 | -471.0 | -484.2 | |
| 2.30 | 3.99 | 1.18 | 2.05 | -17.23 | 218.93 | -10.53 | 139.69 | 0.2710 | -1024.3 | -798.5 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -17.87 | 218.70 | -10.76 | 140.66 | 0.2816 | -848.0 | -789.0 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -16.09 | 218.77 | -10.69 | 136.28 | 0.2590 | -922.0 | -730.5 | |
| 0.00 | 6.47 | 0.00 | 3.32 | -16.45 | 218.59 | -10.87 | 136.81 | 0.2654 | -566.0 | -895.4 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -13.31 | 218.76 | -10.70 | 127.47 | 0.2288 | 873.0 | 651.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -17.52 | 218.24 | -11.22 | 138.67 | 0.2823 | -862.0 | -742.5 | |
| 3.99 | 8.06 | 2.05 | 4.14 | -15.87 | 218.24 | -11.22 | 134.31 | 0.2626 | -1115.8 | -834.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -17.61 | 218.10 | -11.36 | 138.56 | 0.2848 | -513.0 | -689.0 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -16.41 | 218.11 | -11.35 | 135.51 | 0.2705 | -1014.0 | -801.9 | |
| 0.00 | 2.39 | 0.00 | 1.23 | -16.01 | 217.88 | -11.58 | 133.84 | 0.2686 | -1057.0 | -819.4 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -17.08 | 217.69 | -11.77 | 136.24 | 0.2832 | -1035.0 | -903.4 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -16.28 | 217.71 | -11.75 | 134.17 | 0.2738 | -1163.0 | -1000.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -17.66 | 217.49 | -11.97 | 137.22 | 0.2923 | -746.0 | -709.7 | |
| 0.00 | 3.81 | 0.00 | 1.97 | -16.98 | 217.44 | -12.02 | 135.40 | 0.2850 | -1087.0 | -904.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -20.87 | 216.75 | -12.71 | 142.53 | 0.3395 | -779.0 | -690.3 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -16.57 | 216.92 | -12.54 | 133.16 | 0.2866 | -872.0 | -626.2 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -19.41 | 216.64 | -12.82 | 139.33 | 0.3225 | -924.0 | -722.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -19.28 | 216.42 | -13.04 | 138.59 | 0.3233 | -834.0 | -735.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -16.63 | 216.49 | -12.96 | 132.39 | 0.2924 | -953.0 | -798.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.20 | 216.52 | -12.94 | 131.31 | 0.2874 | -797.0 | -674.8 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -18.81 | 216.07 | -13.39 | 136.81 | 0.3217 | -1092.0 | -805.6 | |
| 0.00 | 2.83 | 0.00 | 1.49 | -20.22 | 215.62 | -13.84 | 138.94 | 0.3433 | -1017.0 | -907.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -21.22 | 215.35 | -14.10 | 140.39 | 0.3579 | -765.0 | -577.6 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -20.15 | 215.26 | -14.20 | 138.10 | 0.3463 | -771.0 | -663.1 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -23.16 | 214.95 | -14.51 | 143.12 | 0.3856 | -772.0 | -599.3 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -16.84 | 215.09 | -14.37 | 130.15 | 0.3122 | -940.0 | -776.8 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -19.33 | 214.58 | -14.88 | 135.07 | 0.3447 | -837.0 | -718.5 | |
| 0.44 | 1.59 | 0.23 | 0.84 | -18.21 | 214.48 | -14.98 | 132.39 | 0.3338 | -1010.2 | -873.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -19.23 | 214.29 | -15.17 | 134.33 | 0.3469 | -946.0 | -833.1 | |
| 0.00 | 3.63 | 0.00 | 1.92 | -19.41 | 214.17 | -15.29 | 134.52 | 0.3503 | -543.0 | -650.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -21.47 | 213.92 | -15.53 | 138.25 | 0.3759 | -618.0 | -556.7 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -20.68 | 213.74 | -15.72 | 136.40 | 0.3691 | -699.0 | -650.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -20.86 | 213.69 | -15.77 | 136.67 | 0.3717 | -780.0 | -582.9 | |
| 0.00 | 2.30 | 0.00 | 1.23 | -20.46 | 213.63 | -15.83 | 135.76 | 0.3679 | -906.0 | -734.0 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -17.11 | 213.70 | -15.76 | 128.38 | 0.3327 | -888.0 | -737.0 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -20.32 | 213.15 | -16.31 | 134.66 | 0.3719 | -1028.0 | -634.8 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -20.00 | 212.95 | -16.51 | 133.68 | 0.3709 | -761.0 | -557.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -18.94 | 212.83 | -16.63 | 131.22 | 0.3615 | -814.0 | -719.8 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -18.54 | 212.77 | -16.69 | 130.23 | 0.3582 | -898.0 | -748.3 | |
| 0.00 | 2.21 | 0.00 | 1.18 | -18.84 | 212.64 | -16.82 | 130.70 | 0.3628 | -840.0 | -646.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -18.78 | 212.41 | -17.05 | 130.20 | 0.3650 | -502.0 | -437.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -24.29 | 210.82 | -18.64 | 138.35 | 0.4402 | -667.0 | -624.3 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -17.95 | 210.47 | -18.99 | 125.57 | 0.3822 | -623.0 | -514.4 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -23.14 | 205.08 | -24.38 | 129.39 | 0.4932 | 600.0 | 531.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
