SDO HMI 2014-04-17 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.50 | 111.52 | 16.82 | 82.86 | -13.17 | 181.21 | -48.25 | 102.82 | 0.7472 | 231.7 | 109.0 | |
|
previous
or next observation for the same group /

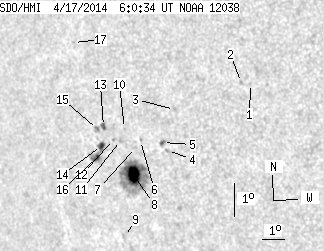

back to the solar disc SDO HMI 2014-04-17 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.53 | -11.12 | 186.99 | -42.47 | 100.55 | 0.6762 | 623.0 | 546.1 | |
| 0.00 | 1.51 | 0.00 | 1.02 | -11.07 | 186.63 | -42.83 | 100.43 | 0.6807 | 561.0 | 447.9 | |
| 0.00 | 1.95 | 0.00 | 1.38 | -11.69 | 183.61 | -45.84 | 101.03 | 0.7181 | 79.0 | 163.2 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -12.90 | 183.02 | -46.44 | 102.65 | 0.7262 | 463.0 | 392.6 | |
| 0.89 | 2.48 | 0.64 | 1.79 | -12.65 | 182.86 | -46.60 | 102.28 | 0.7279 | 656.1 | 492.8 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -12.52 | 181.89 | -47.57 | 102.01 | 0.7390 | -624.0 | -441.6 | |
| 0.00 | 1.42 | 0.00 | 1.04 | -12.71 | 181.61 | -47.85 | 102.25 | 0.7423 | -259.0 | -156.5 | |
| 13.46 | 74.05 | 9.98 | 54.95 | -13.52 | 181.31 | -48.15 | 103.30 | 0.7465 | 991.7 | 243.6 | |
| 0.00 | 1.77 | 0.00 | 1.34 | -15.36 | 180.34 | -49.12 | 105.62 | 0.7593 | 435.0 | 486.3 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -12.11 | 181.25 | -48.21 | 101.40 | 0.7460 | -244.0 | -221.7 | |
| 0.00 | 1.59 | 0.00 | 1.19 | -12.46 | 180.98 | -48.48 | 101.84 | 0.7493 | -330.0 | -384.6 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -12.40 | 180.67 | -48.79 | 101.75 | 0.7528 | 335.0 | 195.3 | |
| 1.77 | 3.01 | 1.34 | 2.27 | -11.98 | 180.30 | -49.16 | 101.15 | 0.7566 | -707.5 | -608.1 | |
| 3.19 | 14.79 | 2.42 | 11.27 | -12.54 | 180.06 | -49.40 | 101.88 | 0.7597 | -749.7 | -619.5 | |
| 0.00 | 3.10 | 0.00 | 2.35 | -12.05 | 180.00 | -49.46 | 101.23 | 0.7600 | -623.0 | -494.2 | |
| 3.19 | -14.00 | 2.44 | -14.00 | -12.89 | 179.73 | -49.73 | 102.30 | 0.7636 | -783.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -9.36 | 179.46 | -50.00 | 97.67 | 0.7649 | 619.0 | 501.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
