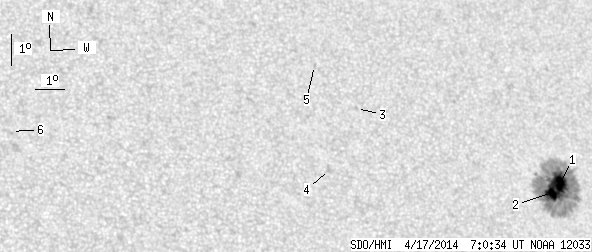

SDO HMI 2014-04-17 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.83 | 196.01 | 21.44 | 123.82 | 11.95 | 263.24 | 34.33 | 297.20 | 0.6222 | -938.0 | -316.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.75 | 187.68 | 12.55 | 118.96 | 12.03 | 263.70 | 34.79 | 296.94 | 0.6282 | -1085.9 | -346.8 | |
| 14.08 | -1.00 | 8.89 | -1.00 | 11.73 | 263.39 | 34.48 | 296.70 | 0.6228 | -1333.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.90 | 14.05 | 256.63 | 27.72 | 305.60 | 0.5571 | 552.0 | 359.8 | |
| 0.00 | 4.78 | 0.00 | 2.78 | 12.07 | 255.46 | 26.54 | 303.66 | 0.5271 | 69.0 | 159.1 | |
| 0.00 | 1.51 | 0.00 | 0.89 | 15.37 | 255.34 | 26.43 | 308.85 | 0.5532 | 668.0 | 557.5 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 12.90 | 244.99 | 16.07 | 319.06 | 0.4136 | 327.0 | 491.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
