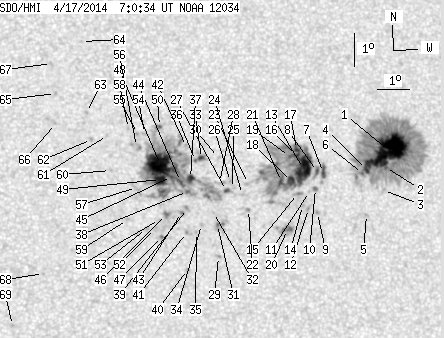

SDO HMI 2014-04-17 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 206.99 | 952.52 | 108.48 | 499.12 | 4.23 | 245.00 | 16.09 | 301.33 | 0.3235 | -186.8 | -110.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.77 | 363.23 | 37.78 | 193.92 | 4.77 | 248.29 | 19.38 | 297.46 | 0.3742 | -1385.2 | -393.1 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 4.24 | 248.18 | 19.26 | 296.34 | 0.3687 | -1037.7 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 3.54 | 248.09 | 19.18 | 294.69 | 0.3625 | -738.0 | -560.8 | |
| 3.01 | -1.00 | 1.60 | -1.00 | 4.16 | 247.57 | 18.66 | 296.90 | 0.3593 | -1241.6 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 2.79 | 247.54 | 18.62 | 293.42 | 0.3492 | 778.0 | 509.8 | |
| 0.62 | -1.00 | 0.33 | -1.00 | 4.04 | 247.44 | 18.52 | 296.75 | 0.3564 | -1192.9 | 999999 | |
| 3.90 | 14.70 | 2.05 | 7.73 | 4.03 | 246.20 | 17.29 | 298.40 | 0.3385 | -811.0 | -644.1 | |
| 1.51 | -7.00 | 0.79 | -7.00 | 4.06 | 246.01 | 17.10 | 298.73 | 0.3359 | -1007.1 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 2.81 | 245.99 | 17.07 | 295.40 | 0.3261 | -1030.0 | -789.1 | |
| 0.89 | 2.48 | 0.46 | 1.30 | 3.54 | 245.94 | 17.02 | 297.46 | 0.3308 | -890.2 | -699.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 3.44 | 245.75 | 16.83 | 297.47 | 0.3272 | -776.0 | -623.6 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 2.92 | 245.70 | 16.79 | 296.10 | 0.3227 | -952.0 | -813.2 | |
| 31.35 | 188.92 | 16.45 | 98.81 | 4.14 | 245.57 | 16.66 | 299.59 | 0.3303 | -1172.3 | -634.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 3.01 | 245.52 | 16.60 | 296.61 | 0.3206 | -872.0 | -757.0 | |
| 0.00 | 3.54 | 0.00 | 1.85 | 3.37 | 245.37 | 16.45 | 297.83 | 0.3211 | -1077.0 | -856.2 | |
| 3.28 | -13.00 | 1.72 | -13.00 | 4.53 | 245.36 | 16.45 | 300.94 | 0.3305 | -1110.0 | 999999 | |
| 3.54 | -13.00 | 1.86 | -13.00 | 4.71 | 245.36 | 16.45 | 301.41 | 0.3322 | -928.2 | 999999 | |
| 7.00 | -13.00 | 3.66 | -13.00 | 3.73 | 245.18 | 16.27 | 299.09 | 0.3214 | -1252.3 | 999999 | |
| 0.27 | -13.00 | 0.14 | -13.00 | 4.49 | 245.14 | 16.23 | 301.20 | 0.3271 | -1099.3 | 999999 | |
| 2.83 | 11.87 | 1.48 | 6.17 | 2.27 | 245.03 | 16.12 | 295.16 | 0.3079 | -1207.3 | -866.3 | |
| 3.99 | -13.00 | 2.08 | -13.00 | 3.72 | 244.87 | 15.96 | 299.55 | 0.3168 | -1325.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 2.85 | 243.82 | 14.91 | 298.73 | 0.2944 | -873.0 | -690.8 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 3.64 | 243.84 | 14.92 | 301.02 | 0.3012 | -22.0 | -115.3 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 3.30 | 243.64 | 14.73 | 300.37 | 0.2955 | 572.0 | 294.1 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 3.47 | 243.33 | 14.42 | 301.43 | 0.2926 | 379.0 | 382.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 3.69 | 243.28 | 14.36 | 302.15 | 0.2937 | 691.0 | 540.4 | |
| 1.51 | 264.92 | 0.78 | 136.34 | 3.41 | 243.15 | 14.23 | 301.58 | 0.2894 | 797.1 | 495.0 | |
| 0.00 | 3.99 | 0.00 | 2.06 | 3.65 | 242.93 | 14.02 | 302.67 | 0.2885 | -193.0 | -241.5 | |
| 0.00 | 2.21 | 0.00 | 1.14 | 1.40 | 242.87 | 13.96 | 295.72 | 0.2689 | 796.0 | 510.7 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 4.41 | 242.92 | 14.00 | 304.88 | 0.2954 | -408.0 | -386.1 | |
| 0.53 | 10.89 | 0.27 | 5.62 | 2.37 | 242.85 | 13.94 | 298.93 | 0.2762 | 976.5 | 646.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 2.73 | 242.73 | 13.82 | 300.28 | 0.2775 | 653.0 | 427.2 | |
| 2.21 | 8.68 | 1.14 | 4.49 | 4.37 | 242.39 | 13.48 | 305.82 | 0.2878 | 756.7 | 476.3 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 2.36 | 242.36 | 13.44 | 299.80 | 0.2689 | 849.0 | 686.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 2.11 | 242.20 | 13.29 | 299.29 | 0.2645 | 848.0 | 698.1 | |
| 0.53 | -33.00 | 0.27 | -33.00 | 4.30 | 242.20 | 13.29 | 306.02 | 0.2846 | 799.3 | 999999 | |
| 4.16 | -27.00 | 2.15 | -27.00 | 3.75 | 242.04 | 13.12 | 304.75 | 0.2770 | 742.4 | 999999 | |
| 1.15 | -27.00 | 0.59 | -27.00 | 3.35 | 241.94 | 13.02 | 303.76 | 0.2718 | 724.5 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.46 | 2.83 | 241.93 | 13.02 | 302.16 | 0.2669 | 885.0 | 657.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 0.98 | 241.91 | 13.00 | 295.94 | 0.2512 | 944.0 | 763.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 2.10 | 241.89 | 12.98 | 299.86 | 0.2599 | 944.0 | 688.8 | |
| 0.00 | 2.66 | 0.00 | 1.37 | 4.72 | 241.93 | 13.02 | 307.78 | 0.2853 | 619.0 | 531.1 | |
| 0.00 | 2.39 | 0.00 | 1.23 | 2.71 | 241.74 | 12.83 | 302.14 | 0.2631 | 983.0 | 812.6 | |
| 2.83 | -27.00 | 1.46 | -27.00 | 3.65 | 241.72 | 12.81 | 305.11 | 0.2717 | 777.1 | 999999 | |
| 2.21 | -27.00 | 1.14 | -27.00 | 3.80 | 241.45 | 12.54 | 306.16 | 0.2694 | 733.0 | 999999 | |
| 1.15 | 4.16 | 0.59 | 2.13 | 2.64 | 241.28 | 12.37 | 302.88 | 0.2559 | 1145.5 | 926.4 | |
| 0.35 | 1.59 | 0.18 | 0.81 | 1.97 | 241.12 | 12.20 | 300.96 | 0.2475 | 949.2 | 774.6 | |
| 45.53 | -27.00 | 23.41 | -27.00 | 4.16 | 241.11 | 12.20 | 307.98 | 0.2686 | 1238.2 | 999999 | |
| 10.54 | -27.00 | 5.41 | -27.00 | 3.70 | 241.11 | 12.19 | 306.62 | 0.2638 | 1349.2 | 999999 | |
| 1.06 | -27.00 | 0.55 | -27.00 | 5.32 | 241.11 | 12.19 | 311.26 | 0.2810 | 789.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 2.48 | 241.06 | 12.15 | 302.83 | 0.2513 | 878.0 | 805.9 | |
| 0.00 | 2.39 | 0.00 | 1.22 | 2.21 | 240.93 | 12.02 | 302.18 | 0.2470 | 842.0 | 725.0 | |
| 0.00 | 1.77 | 0.00 | 0.90 | 2.20 | 240.66 | 11.74 | 302.77 | 0.2430 | 810.0 | 584.6 | |
| 0.00 | 2.21 | 0.00 | 1.14 | 5.10 | 240.64 | 11.73 | 311.78 | 0.2727 | 721.0 | 640.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 5.09 | 240.42 | 11.51 | 312.30 | 0.2699 | 926.0 | 792.1 | |
| 0.00 | 7.44 | 0.00 | 3.82 | 4.69 | 240.38 | 11.47 | 311.28 | 0.2650 | 604.0 | 764.8 | |
| 0.00 | 7.17 | 0.00 | 3.67 | 3.44 | 240.36 | 11.45 | 307.58 | 0.2512 | 842.0 | 730.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 5.24 | 240.15 | 11.24 | 313.40 | 0.2682 | 778.0 | 630.5 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 2.46 | 240.08 | 11.16 | 305.05 | 0.2373 | 792.0 | 645.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 3.95 | 239.57 | 10.66 | 311.18 | 0.2463 | 804.0 | 594.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 5.02 | 239.50 | 10.58 | 314.50 | 0.2577 | 862.0 | 676.1 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 4.89 | 239.00 | 10.09 | 315.51 | 0.2503 | 820.0 | 699.1 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 5.71 | 238.86 | 9.95 | 318.14 | 0.2589 | 723.0 | 531.8 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 7.89 | 238.76 | 9.85 | 323.53 | 0.2863 | 750.0 | 624.6 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 6.28 | 237.92 | 9.01 | 322.36 | 0.2561 | 858.0 | 655.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.36 | 237.91 | 9.00 | 320.09 | 0.2438 | 991.0 | 778.2 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 7.20 | 237.82 | 8.91 | 324.79 | 0.2676 | 748.0 | 595.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 0.79 | 237.50 | 8.59 | 305.73 | 0.1847 | 897.0 | 702.0 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -0.79 | 236.55 | 7.64 | 301.06 | 0.1559 | 837.0 | 636.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
