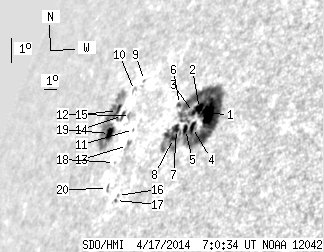

SDO HMI 2014-04-17 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.64 | 279.62 | 55.88 | 354.61 | 18.71 | 165.58 | -63.33 | 66.94 | 0.9202 | -232.9 | -141.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.53 | 200.97 | 16.60 | 235.68 | 18.72 | 168.39 | -60.52 | 66.20 | 0.9029 | -902.0 | -206.2 | |
| 4.87 | -1.00 | 5.73 | -1.00 | 18.95 | 167.66 | -61.25 | 66.17 | 0.9083 | -354.7 | 999999 | |
| 0.97 | -1.00 | 1.15 | -1.00 | 18.84 | 167.32 | -61.59 | 66.37 | 0.9104 | -247.6 | 999999 | |
| 3.99 | -1.00 | 4.66 | -1.00 | 18.34 | 167.57 | -61.34 | 66.84 | 0.9077 | -530.9 | 999999 | |
| 3.10 | -1.00 | 3.69 | -1.00 | 18.31 | 167.11 | -61.80 | 66.99 | 0.9107 | -310.3 | 999999 | |
| 0.80 | -1.00 | 0.99 | -1.00 | 19.21 | 166.11 | -62.80 | 66.31 | 0.9188 | -169.3 | 999999 | |
| 3.63 | -1.00 | 4.43 | -1.00 | 18.37 | 166.46 | -62.45 | 67.11 | 0.9151 | -52.2 | 999999 | |
| 2.48 | -1.00 | 3.01 | -1.00 | 18.08 | 166.44 | -62.47 | 67.42 | 0.9147 | -368.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.66 | 20.30 | 162.65 | -66.26 | 66.06 | 0.9408 | 372.0 | 326.5 | |
| 0.00 | 2.21 | 0.00 | 3.28 | 20.03 | 162.07 | -66.84 | 66.48 | 0.9435 | 304.0 | 191.9 | |
| 0.00 | 0.62 | 0.00 | 0.86 | 18.67 | 163.09 | -65.82 | 67.65 | 0.9360 | 314.0 | 341.0 | |
| 0.00 | 4.34 | 0.00 | 6.24 | 19.18 | 162.45 | -66.46 | 67.27 | 0.9403 | 443.0 | 362.0 | |
| 0.00 | 4.78 | 0.00 | 6.64 | 18.16 | 163.00 | -65.91 | 68.20 | 0.9358 | 573.0 | 472.6 | |
| 1.59 | 60.67 | 2.37 | 93.52 | 19.24 | 161.74 | -67.17 | 67.37 | 0.9442 | 394.2 | -138.5 | |
| 3.81 | -14.00 | 5.83 | -14.00 | 19.46 | 161.13 | -67.78 | 67.28 | 0.9477 | 69.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 1.07 | 16.52 | 163.37 | -65.54 | 69.83 | 0.9313 | 407.0 | 356.7 | |
| 0.00 | 1.24 | 0.00 | 1.67 | 16.36 | 163.32 | -65.59 | 70.00 | 0.9314 | 531.0 | 435.6 | |
| 0.00 | 0.27 | 0.00 | 0.38 | 17.67 | 162.33 | -66.58 | 68.86 | 0.9389 | 337.0 | 335.0 | |
| 4.87 | -14.00 | 7.42 | -14.00 | 18.72 | 161.09 | -67.82 | 68.06 | 0.9470 | 327.7 | 999999 | |
| 0.00 | 2.57 | 0.00 | 3.61 | 16.83 | 162.37 | -66.54 | 69.72 | 0.9375 | 257.0 | 190.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
