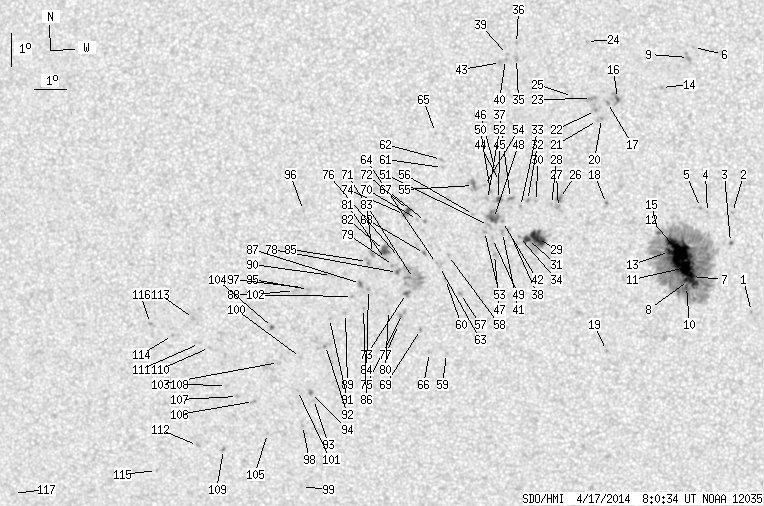

SDO HMI 2014-04-17 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.63 | 653.61 | 50.84 | 331.25 | -16.02 | 224.57 | -3.79 | 163.04 | 0.2049 | 420.9 | 279.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.87 | 229.80 | 1.44 | 186.32 | 0.2177 | 909.0 | 729.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.84 | 229.19 | 0.83 | 184.88 | 0.1648 | 863.0 | 628.5 | |
| 0.35 | 1.42 | 0.18 | 0.71 | -15.75 | 229.13 | 0.77 | 184.11 | 0.1805 | -842.5 | -685.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -14.84 | 228.41 | 0.05 | 180.29 | 0.1642 | 741.0 | 521.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -14.68 | 228.20 | -0.17 | 178.99 | 0.1615 | 885.0 | 667.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -9.83 | 227.99 | -0.37 | 175.22 | 0.0774 | 831.0 | 623.0 | |
| 7.71 | 380.50 | 3.89 | 192.00 | -16.79 | 227.91 | -0.46 | 177.79 | 0.1981 | 1175.5 | 424.1 | |
| 4.43 | -7.00 | 2.24 | -7.00 | -16.92 | 227.81 | -0.55 | 177.36 | 0.2002 | 1079.1 | 999999 | |
| 0.00 | 4.61 | 0.00 | 2.29 | -10.13 | 227.84 | -0.53 | 173.70 | 0.0829 | 1006.0 | 790.7 | |
| 1.33 | -7.00 | 0.67 | -7.00 | -17.10 | 227.75 | -0.61 | 177.10 | 0.2034 | 627.5 | 999999 | |
| 14.70 | -7.00 | 7.42 | -7.00 | -16.52 | 227.72 | -0.64 | 176.80 | 0.1935 | 1490.1 | 999999 | |
| 35.78 | -7.00 | 18.04 | -7.00 | -16.03 | 227.51 | -0.86 | 175.51 | 0.1853 | 1577.1 | 999999 | |
| 2.83 | -7.00 | 1.43 | -7.00 | -16.03 | 227.22 | -1.14 | 174.05 | 0.1857 | 1262.3 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.04 | 227.01 | -1.36 | 166.62 | 0.1009 | 881.0 | 720.1 | |
| 0.62 | -7.00 | 0.31 | -7.00 | -15.44 | 226.88 | -1.48 | 171.85 | 0.1765 | 971.0 | 999999 | |
| 0.80 | 7.00 | 0.40 | 3.49 | -11.37 | 225.66 | -2.71 | 155.87 | 0.1139 | 1090.1 | 865.3 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -11.48 | 225.35 | -3.02 | 153.95 | 0.1181 | 1079.0 | 904.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -14.55 | 225.27 | -3.09 | 161.78 | 0.1678 | 816.0 | 591.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -19.06 | 225.19 | -3.17 | 167.50 | 0.2426 | -699.0 | -601.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.97 | 225.16 | -3.21 | 154.33 | 0.1270 | 962.0 | 755.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.03 | 225.03 | -3.33 | 153.69 | 0.1289 | 783.0 | 640.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -11.72 | 224.97 | -3.39 | 152.19 | 0.1247 | 1046.0 | 878.6 | |
| 0.00 | 3.90 | 0.00 | 1.94 | -11.36 | 224.86 | -3.51 | 149.89 | 0.1202 | 1114.0 | 928.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.64 | 224.72 | -3.64 | 139.60 | 0.0970 | 714.0 | 576.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -11.30 | 224.27 | -4.09 | 145.65 | 0.1246 | 726.0 | 559.5 | |
| 0.00 | 4.52 | 0.00 | 2.27 | -14.39 | 223.81 | -4.55 | 153.76 | 0.1747 | 1196.0 | 957.7 | |
| 0.00 | 4.16 | 0.00 | 2.10 | -14.66 | 223.78 | -4.59 | 154.28 | 0.1792 | 908.0 | 770.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.57 | 223.56 | -4.81 | 153.00 | 0.1794 | 917.0 | 696.3 | |
| 13.64 | 33.75 | 6.89 | 17.06 | -15.60 | 223.10 | -5.27 | 153.44 | 0.1987 | 1233.5 | 569.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.47 | 223.09 | -5.27 | 150.55 | 0.1817 | 1038.0 | 814.2 | |
| 3.37 | -29.00 | 1.70 | -29.00 | -15.63 | 222.78 | -5.58 | 152.17 | 0.2016 | 1027.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.44 | 222.81 | -5.55 | 149.17 | 0.1837 | 1188.0 | 1004.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.62 | 222.59 | -5.77 | 148.70 | 0.1883 | 952.0 | 814.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.53 | 222.53 | -5.83 | 150.90 | 0.2022 | 868.0 | 691.4 | |
| 0.00 | 2.75 | 0.00 | 1.37 | -10.13 | 222.57 | -5.79 | 129.68 | 0.1297 | 962.0 | 759.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.68 | 222.58 | -5.78 | 126.88 | 0.1248 | 852.0 | 683.0 | |
| 0.00 | 2.66 | 0.00 | 1.34 | -14.37 | 222.28 | -6.08 | 146.65 | 0.1875 | 1210.0 | 960.7 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -15.32 | 222.19 | -6.17 | 148.95 | 0.2019 | 1040.0 | 736.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.01 | 222.30 | -6.07 | 127.65 | 0.1321 | 820.0 | 644.1 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -10.16 | 222.23 | -6.13 | 128.27 | 0.1345 | 946.0 | 732.2 | |
| 0.00 | 2.39 | 0.00 | 1.21 | -15.41 | 222.00 | -6.36 | 148.42 | 0.2049 | 794.0 | 716.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.07 | 222.01 | -6.35 | 147.55 | 0.2000 | 1014.0 | 805.0 | |
| 0.00 | 2.57 | 0.00 | 1.28 | -10.25 | 222.08 | -6.29 | 128.10 | 0.1376 | 718.0 | 656.6 | |
| 0.00 | 2.30 | 0.00 | 1.16 | -13.85 | 221.96 | -6.41 | 143.60 | 0.1835 | 969.0 | 735.3 | |
| 1.33 | 3.72 | 0.67 | 1.88 | -14.40 | 221.91 | -6.46 | 145.16 | 0.1915 | 1178.8 | 866.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.52 | 221.84 | -6.52 | 141.97 | 0.1801 | 748.0 | 521.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.08 | 221.73 | -6.64 | 149.07 | 0.2170 | 747.0 | 638.3 | |
| 4.52 | 12.49 | 2.28 | 6.31 | -14.98 | 221.73 | -6.63 | 146.17 | 0.2013 | 1049.6 | 920.2 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -15.59 | 221.68 | -6.68 | 147.65 | 0.2104 | 821.0 | 485.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.15 | 221.67 | -6.70 | 143.39 | 0.1905 | 1077.0 | 908.3 | |
| 0.00 | 2.83 | 0.00 | 1.43 | -15.19 | 221.57 | -6.79 | 146.13 | 0.2058 | 804.0 | 598.7 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -14.39 | 221.57 | -6.80 | 143.76 | 0.1949 | 734.0 | 456.2 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -15.37 | 221.44 | -6.93 | 146.13 | 0.2096 | 722.0 | 602.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -13.97 | 221.48 | -6.88 | 142.06 | 0.1899 | 980.0 | 771.0 | |
| 0.00 | 7.88 | 0.00 | 3.98 | -13.96 | 221.14 | -7.22 | 140.70 | 0.1935 | 991.0 | 771.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -14.85 | 221.11 | -7.25 | 143.40 | 0.2056 | 686.0 | 461.2 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -17.26 | 220.61 | -7.76 | 147.93 | 0.2439 | 805.0 | 613.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -16.09 | 220.28 | -8.09 | 143.96 | 0.2309 | 853.0 | 686.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -19.10 | 220.07 | -8.30 | 150.12 | 0.2749 | 782.0 | 571.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -16.82 | 220.15 | -8.22 | 145.42 | 0.2421 | 661.0 | 553.2 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.40 | 220.19 | -8.17 | 135.27 | 0.1974 | 757.0 | 600.0 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -13.16 | 220.17 | -8.20 | 134.29 | 0.1948 | 913.0 | 642.4 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -16.42 | 219.98 | -8.39 | 143.86 | 0.2383 | 725.0 | 489.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -16.33 | 219.89 | -8.48 | 143.32 | 0.2380 | 733.0 | 597.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -12.34 | 220.01 | -8.35 | 130.50 | 0.1875 | 763.0 | 551.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.06 | 219.52 | -8.84 | 148.47 | 0.2790 | 821.0 | 629.8 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -15.04 | 219.59 | -8.77 | 138.76 | 0.2244 | -951.0 | -744.2 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -16.02 | 219.52 | -8.85 | 141.34 | 0.2377 | 745.0 | 636.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -18.35 | 219.27 | -9.09 | 146.28 | 0.2713 | -1031.0 | -878.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -14.97 | 219.34 | -9.02 | 137.78 | 0.2264 | -660.0 | -387.5 | |
| 0.00 | 32.68 | 0.00 | 16.72 | -16.78 | 219.13 | -9.23 | 142.18 | 0.2516 | -564.0 | -433.0 | |
| 2.04 | 6.11 | 1.04 | 3.11 | -14.69 | 219.07 | -9.29 | 136.08 | 0.2262 | -1034.9 | -657.8 | |
| 0.80 | 3.63 | 0.41 | 1.86 | -17.23 | 218.89 | -9.48 | 142.61 | 0.2602 | -1132.6 | -871.3 | |
| 0.44 | -72.00 | 0.23 | -72.00 | -14.81 | 218.94 | -9.42 | 136.06 | 0.2292 | -965.6 | 999999 | |
| 0.00 | 3.90 | 0.00 | 2.00 | -17.85 | 218.72 | -9.64 | 143.61 | 0.2699 | -811.0 | -800.1 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -16.13 | 218.72 | -9.64 | 139.26 | 0.2477 | -789.0 | -573.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -18.18 | 218.58 | -9.79 | 143.97 | 0.2758 | -812.0 | -696.0 | |
| 0.62 | 3.01 | 0.32 | 1.54 | -16.58 | 218.63 | -9.73 | 140.24 | 0.2544 | -1149.6 | -935.3 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -16.37 | 218.52 | -9.85 | 139.34 | 0.2530 | -914.0 | -802.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -17.75 | 218.28 | -10.08 | 142.16 | 0.2731 | -737.0 | -540.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.18 | 218.27 | -10.09 | 138.15 | 0.2534 | -1028.0 | -773.0 | |
| 3.99 | 7.35 | 2.04 | 3.76 | -15.90 | 218.26 | -10.11 | 137.34 | 0.2502 | -1109.8 | -866.6 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -15.99 | 217.87 | -10.50 | 136.53 | 0.2557 | -980.0 | -804.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.09 | 217.68 | -10.69 | 138.96 | 0.2712 | -1073.0 | -929.2 | |
| 0.00 | 3.72 | 0.00 | 1.91 | -16.23 | 217.70 | -10.67 | 136.75 | 0.2606 | -965.0 | -836.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.67 | 217.48 | -10.88 | 139.90 | 0.2805 | -910.0 | -713.1 | |
| 0.71 | 3.37 | 0.36 | 1.73 | -16.90 | 217.43 | -10.93 | 137.85 | 0.2716 | -1043.2 | -808.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -17.30 | 217.15 | -11.21 | 138.15 | 0.2795 | -936.0 | -767.5 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -17.81 | 216.89 | -11.47 | 138.79 | 0.2887 | -603.0 | -460.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.64 | 216.52 | -11.84 | 134.94 | 0.2791 | -1026.0 | -703.5 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -17.96 | 216.37 | -12.00 | 137.90 | 0.2963 | -685.0 | -537.5 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -18.79 | 216.18 | -12.19 | 139.38 | 0.3084 | -980.0 | -873.9 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -20.46 | 215.65 | -12.71 | 141.73 | 0.3344 | -598.0 | -599.2 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -20.24 | 215.57 | -12.79 | 141.12 | 0.3325 | -1055.0 | -945.7 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -17.05 | 215.75 | -12.61 | 134.28 | 0.2929 | -812.0 | -651.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -14.63 | 215.75 | -12.62 | 127.49 | 0.2675 | -762.0 | -584.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.99 | 215.56 | -12.80 | 133.71 | 0.2945 | -836.0 | -696.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -21.26 | 215.22 | -13.15 | 142.37 | 0.3488 | -788.0 | -645.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -23.17 | 214.99 | -13.37 | 145.31 | 0.3751 | -724.0 | -507.8 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -19.14 | 215.33 | -13.03 | 138.33 | 0.3218 | -782.0 | -536.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -20.16 | 215.15 | -13.22 | 140.10 | 0.3360 | -871.0 | -688.6 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -17.07 | 215.30 | -13.07 | 133.37 | 0.2986 | -875.0 | -680.3 | |
| 0.00 | 2.13 | 0.00 | 1.12 | -19.28 | 214.60 | -13.76 | 137.13 | 0.3316 | -697.0 | -629.6 | |
| 0.62 | 1.51 | 0.32 | 0.79 | -18.19 | 214.50 | -13.87 | 134.47 | 0.3205 | -923.3 | -804.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -21.48 | 214.03 | -14.34 | 140.47 | 0.3636 | -710.0 | -540.4 | |
| 0.00 | 2.13 | 0.00 | 1.13 | -20.47 | 213.66 | -14.70 | 137.82 | 0.3556 | -808.0 | -708.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -20.30 | 213.15 | -15.22 | 136.54 | 0.3594 | -1037.0 | -789.0 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -19.95 | 212.82 | -15.55 | 135.24 | 0.3593 | -684.0 | -482.7 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -21.95 | 212.50 | -15.86 | 138.60 | 0.3851 | -926.0 | -697.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -18.76 | 212.38 | -15.99 | 131.90 | 0.3519 | -814.0 | -640.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -18.63 | 212.06 | -16.31 | 131.08 | 0.3545 | -753.0 | -666.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -21.80 | 211.64 | -16.72 | 136.90 | 0.3927 | -786.0 | -675.4 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -17.85 | 211.94 | -16.43 | 129.10 | 0.3484 | -844.0 | -653.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -18.36 | 211.19 | -17.17 | 129.09 | 0.3627 | -674.0 | -434.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -22.54 | 210.15 | -18.22 | 135.96 | 0.4172 | -813.0 | -572.5 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -17.97 | 210.50 | -17.86 | 127.19 | 0.3679 | -767.0 | -695.8 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -23.10 | 205.06 | -23.31 | 130.48 | 0.4805 | 879.0 | 680.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
