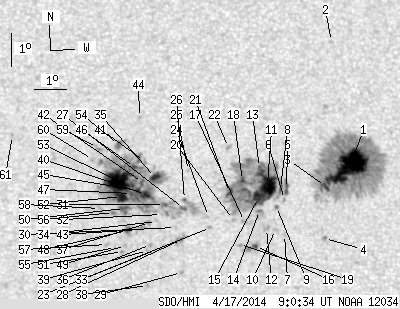

SDO HMI 2014-04-17 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 211.85 | 962.19 | 111.56 | 507.37 | 4.22 | 245.14 | 17.32 | 299.28 | 0.3407 | -196.5 | -157.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.22 | 359.76 | 36.15 | 193.44 | 4.78 | 248.35 | 20.53 | 296.11 | 0.3909 | -1368.3 | -407.3 | |
| 0.00 | 1.59 | 0.00 | 0.87 | 8.62 | 247.94 | 20.12 | 304.86 | 0.4163 | 758.0 | 551.9 | |
| 3.72 | -1.00 | 1.99 | -1.00 | 4.15 | 247.56 | 19.74 | 295.51 | 0.3749 | -1208.2 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 2.56 | 247.49 | 19.67 | 291.64 | 0.3634 | 851.0 | 669.8 | |
| 2.66 | 217.79 | 1.41 | 114.72 | 4.05 | 246.31 | 18.49 | 296.79 | 0.3559 | -836.3 | -614.6 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 3.71 | 246.24 | 18.42 | 296.03 | 0.3524 | -765.0 | -594.3 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 2.65 | 246.22 | 18.40 | 293.27 | 0.3447 | -764.0 | -607.0 | |
| 2.21 | -5.00 | 1.17 | -5.00 | 4.04 | 246.12 | 18.30 | 297.02 | 0.3531 | -852.2 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 3.49 | 245.98 | 18.16 | 295.78 | 0.3470 | -756.0 | -650.6 | |
| 0.00 | 2.30 | 0.00 | 1.21 | 2.79 | 245.93 | 18.11 | 293.99 | 0.3414 | -747.0 | -598.2 | |
| 32.33 | -5.00 | 17.07 | -5.00 | 4.15 | 245.71 | 17.89 | 297.84 | 0.3480 | -1198.6 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.82 | 2.81 | 245.65 | 17.83 | 294.40 | 0.3373 | -801.0 | -791.4 | |
| 0.27 | -5.00 | 0.14 | -5.00 | 4.67 | 245.47 | 17.65 | 299.47 | 0.3486 | -949.7 | 999999 | |
| 0.53 | 6.38 | 0.28 | 3.35 | 3.35 | 245.44 | 17.62 | 296.12 | 0.3380 | -1123.5 | -882.9 | |
| 12.13 | -5.00 | 6.39 | -5.00 | 3.75 | 245.41 | 17.60 | 297.20 | 0.3406 | -1194.6 | 999999 | |
| 1.59 | 8.06 | 0.84 | 4.22 | 2.25 | 245.29 | 17.47 | 293.31 | 0.3281 | -1179.5 | -903.9 | |
| 0.00 | 2.75 | 0.00 | 1.44 | 3.00 | 244.96 | 17.14 | 295.83 | 0.3284 | -935.0 | -851.4 | |
| 2.48 | -5.00 | 1.30 | -5.00 | 4.25 | 244.92 | 17.10 | 299.21 | 0.3374 | -987.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.02 | 2.30 | 244.79 | 16.97 | 294.08 | 0.3208 | -778.0 | -731.7 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 3.06 | 244.61 | 16.79 | 296.44 | 0.3236 | -891.0 | -686.6 | |
| 3.72 | -5.00 | 1.95 | -5.00 | 3.88 | 244.50 | 16.68 | 298.83 | 0.3284 | -1125.6 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.12 | 5.25 | 244.50 | 16.69 | 302.38 | 0.3400 | 831.0 | 585.2 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 2.79 | 243.88 | 16.07 | 296.74 | 0.3109 | -997.0 | -753.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 3.13 | 243.83 | 16.01 | 297.78 | 0.3126 | -634.0 | -430.7 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 4.51 | 243.23 | 15.41 | 302.57 | 0.3157 | -872.0 | -641.1 | |
| 0.53 | 288.02 | 0.28 | 148.96 | 3.63 | 243.08 | 15.27 | 300.37 | 0.3059 | 686.5 | 420.5 | |
| 1.06 | -26.00 | 0.55 | -26.00 | 3.35 | 243.05 | 15.23 | 299.65 | 0.3031 | 784.2 | 999999 | |
| 0.62 | 7.62 | 0.32 | 3.95 | 2.41 | 242.97 | 15.15 | 296.99 | 0.2944 | 874.1 | 699.7 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 1.41 | 242.96 | 15.14 | 293.89 | 0.2869 | 799.0 | 549.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 2.77 | 242.79 | 14.97 | 298.37 | 0.2945 | 599.0 | 455.8 | |
| 1.24 | -26.00 | 0.64 | -26.00 | 3.46 | 242.46 | 14.64 | 300.97 | 0.2955 | 427.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 3.15 | 242.36 | 14.54 | 300.24 | 0.2915 | 715.0 | 545.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 2.09 | 242.19 | 14.37 | 297.25 | 0.2802 | 880.0 | 713.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 2.94 | 242.20 | 14.38 | 299.87 | 0.2873 | 608.0 | 469.4 | |
| 6.20 | -26.00 | 3.22 | -26.00 | 4.28 | 242.19 | 14.37 | 303.78 | 0.2991 | 624.4 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 2.23 | 242.00 | 14.19 | 298.04 | 0.2787 | 885.0 | 842.6 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 2.90 | 241.98 | 14.16 | 300.15 | 0.2839 | 806.0 | 731.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 0.99 | 241.90 | 14.08 | 294.11 | 0.2677 | 867.0 | 700.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 2.05 | 241.91 | 14.09 | 297.61 | 0.2758 | 868.0 | 684.6 | |
| 7.35 | -26.00 | 3.80 | -26.00 | 3.75 | 241.87 | 14.05 | 302.89 | 0.2898 | 796.7 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.52 | 4.76 | 241.86 | 14.04 | 305.74 | 0.2992 | 639.0 | 487.2 | |
| 1.86 | -26.00 | 0.96 | -26.00 | 4.11 | 241.78 | 13.97 | 304.10 | 0.2920 | 653.8 | 999999 | |
| 0.00 | 5.23 | 0.00 | 2.69 | 2.68 | 241.67 | 13.85 | 300.04 | 0.2774 | 892.0 | 781.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 6.10 | 241.74 | 13.92 | 309.49 | 0.3113 | 592.0 | 490.7 | |
| 3.01 | -26.00 | 1.56 | -26.00 | 3.87 | 241.62 | 13.81 | 303.70 | 0.2874 | 863.1 | 999999 | |
| 1.77 | -26.00 | 0.92 | -26.00 | 4.57 | 241.54 | 13.73 | 305.84 | 0.2931 | 842.9 | 999999 | |
| 1.68 | -26.00 | 0.87 | -26.00 | 3.77 | 241.44 | 13.62 | 303.79 | 0.2839 | 741.3 | 999999 | |
| 1.77 | 4.43 | 0.91 | 2.28 | 2.64 | 241.29 | 13.48 | 300.61 | 0.2717 | 1142.5 | 897.3 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 2.19 | 241.23 | 13.41 | 299.27 | 0.2668 | 906.0 | 684.5 | |
| 3.99 | -26.00 | 2.05 | -26.00 | 3.31 | 241.21 | 13.39 | 302.85 | 0.2765 | 1085.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 2.00 | 241.13 | 13.31 | 298.84 | 0.2639 | 930.0 | 756.1 | |
| 9.48 | -26.00 | 4.89 | -26.00 | 3.67 | 241.12 | 13.31 | 304.12 | 0.2787 | 1288.0 | 999999 | |
| 40.30 | -26.00 | 20.80 | -26.00 | 4.13 | 241.04 | 13.22 | 305.63 | 0.2819 | 1305.6 | 999999 | |
| 2.13 | 6.64 | 1.10 | 3.44 | 5.26 | 241.06 | 13.24 | 308.72 | 0.2937 | 860.2 | 673.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 2.12 | 240.92 | 13.10 | 299.63 | 0.2617 | 866.0 | 672.1 | |
| 0.00 | 2.30 | 0.00 | 1.18 | 3.18 | 240.87 | 13.05 | 303.14 | 0.2705 | 1072.0 | 901.2 | |
| 0.00 | 2.48 | 0.00 | 1.27 | 2.20 | 240.64 | 12.82 | 300.46 | 0.2584 | 833.0 | 526.5 | |
| 0.00 | 4.16 | 0.00 | 2.14 | 3.29 | 240.44 | 12.62 | 304.40 | 0.2655 | 977.0 | 819.1 | |
| 0.00 | 2.75 | 0.00 | 1.42 | 5.16 | 240.41 | 12.59 | 309.88 | 0.2842 | 780.0 | 702.5 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 4.79 | 240.25 | 12.43 | 309.22 | 0.2781 | 878.0 | 811.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 5.48 | 237.80 | 9.98 | 317.42 | 0.2561 | 810.0 | 652.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
