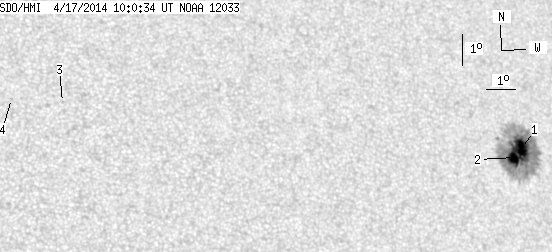

SDO HMI 2014-04-17 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.03 | 180.67 | 21.38 | 116.75 | 11.89 | 263.45 | 36.18 | 295.88 | 0.6441 | -994.9 | -328.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.86 | 178.98 | 12.24 | 115.82 | 12.01 | 263.72 | 36.45 | 295.84 | 0.6480 | -1054.5 | -337.5 | |
| 14.17 | -1.00 | 9.14 | -1.00 | 11.71 | 263.40 | 36.13 | 295.61 | 0.6426 | -1288.9 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 12.73 | 247.65 | 20.38 | 311.99 | 0.4589 | 646.0 | 530.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 12.80 | 245.99 | 18.72 | 314.54 | 0.4408 | 781.0 | 652.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
