SDO HMI 2014-04-17 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.98 | 336.08 | 36.89 | 177.63 | -9.34 | 247.40 | 20.13 | 257.44 | 0.3492 | 267.7 | 252.0 | |
|
previous
or next observation for the same group /

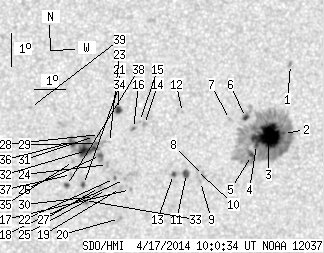

back to the solar disc SDO HMI 2014-04-17 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 1.00 | -6.92 | 249.56 | 22.29 | 264.97 | 0.3796 | 827.0 | 720.9 | |
| 0.27 | 231.76 | 0.14 | 123.56 | -9.00 | 249.45 | 22.17 | 259.46 | 0.3808 | 865.7 | 467.9 | |
| 38.35 | -2.00 | 20.46 | -2.00 | -9.11 | 248.96 | 21.69 | 259.00 | 0.3733 | 1375.5 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -9.36 | 248.58 | 21.31 | 258.17 | 0.3680 | 1047.7 | 999999 | |
| 2.13 | -2.00 | 1.13 | -2.00 | -9.70 | 248.44 | 21.17 | 257.20 | 0.3666 | 1038.9 | 999999 | |
| 2.04 | -2.00 | 1.08 | -2.00 | -8.56 | 248.17 | 20.90 | 260.20 | 0.3596 | 1115.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -8.64 | 247.66 | 20.39 | 259.80 | 0.3515 | 832.0 | 666.4 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -10.35 | 246.92 | 19.64 | 254.56 | 0.3446 | -812.0 | -624.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.54 | 246.83 | 19.56 | 253.98 | 0.3439 | -777.0 | -600.8 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -10.21 | 246.68 | 19.41 | 254.82 | 0.3403 | -772.0 | -672.5 | |
| 3.10 | 4.78 | 1.63 | 2.51 | -10.31 | 246.36 | 19.09 | 254.33 | 0.3357 | -1093.1 | -831.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.47 | 246.13 | 18.86 | 259.68 | 0.3264 | 723.0 | 504.9 | |
| 1.24 | 2.92 | 0.65 | 1.53 | -10.35 | 245.94 | 18.67 | 253.92 | 0.3292 | 864.4 | 502.2 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -8.87 | 244.93 | 17.66 | 257.85 | 0.3080 | 803.0 | 642.9 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -8.78 | 244.77 | 17.50 | 258.04 | 0.3051 | 731.0 | 615.6 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -9.00 | 244.59 | 17.32 | 257.23 | 0.3028 | 1026.0 | 890.8 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -10.84 | 244.59 | 17.32 | 251.35 | 0.3099 | -708.0 | -628.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.54 | 244.38 | 17.11 | 252.10 | 0.3053 | -684.0 | -673.8 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -10.82 | 244.27 | 17.00 | 251.13 | 0.3047 | -853.0 | -698.3 | |
| 0.00 | 2.13 | 0.00 | 1.11 | -11.73 | 244.29 | 17.02 | 248.33 | 0.3097 | -609.0 | -602.8 | |
| 3.01 | 4.69 | 1.56 | 2.43 | -8.44 | 244.08 | 16.81 | 258.80 | 0.2929 | 1037.2 | 757.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.52 | 244.06 | 16.79 | 251.89 | 0.3001 | -913.0 | -869.4 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.44 | 243.84 | 16.57 | 255.27 | 0.2922 | -417.0 | -312.6 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -10.10 | 243.81 | 16.54 | 253.04 | 0.2943 | -794.0 | -733.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -10.86 | 243.82 | 16.55 | 250.58 | 0.2979 | -603.0 | -482.7 | |
| 1.33 | 5.40 | 0.69 | 2.79 | -9.84 | 243.58 | 16.30 | 253.72 | 0.2894 | -973.9 | -828.0 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -10.81 | 243.59 | 16.32 | 250.54 | 0.2941 | -788.0 | -632.9 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -9.21 | 243.51 | 16.24 | 255.82 | 0.2860 | -720.0 | -594.8 | |
| 0.71 | 41.45 | 0.37 | 21.38 | -9.48 | 243.43 | 16.16 | 254.82 | 0.2857 | -807.6 | -173.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.08 | 243.45 | 16.18 | 249.49 | 0.2932 | -792.0 | -567.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -9.27 | 243.36 | 16.09 | 255.49 | 0.2837 | -829.0 | -624.8 | |
| 12.13 | -29.00 | 6.26 | -29.00 | -9.70 | 243.12 | 15.85 | 253.82 | 0.2816 | -1025.5 | 999999 | |
| 0.00 | 4.34 | 0.00 | 2.24 | -11.21 | 243.14 | 15.87 | 248.73 | 0.2891 | -1000.0 | -914.8 | |
| 1.15 | 2.04 | 0.59 | 1.05 | -10.73 | 243.08 | 15.81 | 250.27 | 0.2856 | -1042.0 | -889.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -10.04 | 242.73 | 15.46 | 252.27 | 0.2767 | -969.0 | -658.6 | |
| 3.28 | -29.00 | 1.69 | -29.00 | -9.47 | 242.67 | 15.40 | 254.24 | 0.2734 | 1051.4 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -10.43 | 242.68 | 15.41 | 250.86 | 0.2779 | -980.0 | -680.0 | |
| 0.97 | 2.21 | 0.50 | 1.14 | -10.77 | 242.54 | 15.27 | 249.55 | 0.2774 | -1062.2 | -866.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -8.44 | 241.30 | 14.03 | 256.97 | 0.2473 | 915.0 | 630.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
