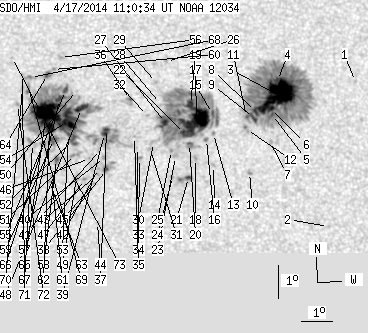

SDO HMI 2014-04-17 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230.14 | 988.81 | 121.70 | 524.56 | 4.17 | 245.07 | 18.35 | 297.67 | 0.3550 | -150.7 | -162.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | 5.35 | 250.97 | 24.24 | 293.59 | 0.4480 | -618.0 | -487.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 0.90 | 249.96 | 23.24 | 284.55 | 0.4093 | -664.0 | -513.4 | |
| 53.93 | 343.76 | 29.24 | 186.36 | 4.83 | 248.42 | 21.70 | 294.93 | 0.4079 | -1367.0 | -389.9 | |
| 0.27 | -3.00 | 0.14 | -3.00 | 5.29 | 248.40 | 21.68 | 295.96 | 0.4109 | -1129.3 | 999999 | |
| 2.39 | -3.00 | 1.29 | -3.00 | 4.24 | 248.20 | 21.48 | 293.82 | 0.4009 | -988.4 | 999999 | |
| 2.92 | -3.00 | 1.58 | -3.00 | 4.42 | 248.18 | 21.45 | 294.27 | 0.4017 | -1106.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.19 | 3.39 | 248.12 | 21.39 | 291.92 | 0.3942 | -700.0 | -615.7 | |
| 1.86 | -3.00 | 1.00 | -3.00 | 4.31 | 247.66 | 20.93 | 294.56 | 0.3934 | -1219.6 | 999999 | |
| 3.19 | -3.00 | 1.71 | -3.00 | 4.13 | 247.59 | 20.86 | 294.21 | 0.3911 | -1122.5 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 2.45 | 247.42 | 20.69 | 290.33 | 0.3781 | 822.0 | 644.6 | |
| 0.53 | -3.00 | 0.29 | -3.00 | 4.15 | 247.36 | 20.64 | 294.50 | 0.3880 | -1234.7 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.57 | 3.76 | 247.35 | 20.63 | 293.57 | 0.3852 | -900.0 | -820.6 | |
| 0.00 | 1.86 | 0.00 | 0.99 | 3.60 | 246.29 | 19.56 | 294.36 | 0.3684 | -710.0 | -542.6 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 2.63 | 246.27 | 19.54 | 291.93 | 0.3618 | -755.0 | -599.5 | |
| 1.33 | 227.14 | 0.71 | 120.53 | 4.21 | 246.27 | 19.55 | 295.87 | 0.3724 | -671.9 | -600.6 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 3.41 | 246.06 | 19.33 | 294.15 | 0.3637 | -937.0 | -690.5 | |
| 45.60 | -15.00 | 24.23 | -15.00 | 3.95 | 245.75 | 19.03 | 295.85 | 0.3630 | -1225.8 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.22 | 2.82 | 245.69 | 18.97 | 293.05 | 0.3544 | -939.0 | -816.7 | |
| 5.67 | -15.00 | 3.01 | -15.00 | 4.46 | 245.57 | 18.85 | 297.34 | 0.3642 | -1018.8 | 999999 | |
| 0.97 | 7.97 | 0.52 | 4.22 | 3.27 | 245.51 | 18.79 | 294.43 | 0.3547 | -1080.4 | -801.8 | |
| 1.59 | 5.49 | 0.84 | 2.90 | 2.24 | 245.46 | 18.74 | 291.77 | 0.3472 | -1196.3 | -990.4 | |
| 3.72 | -15.00 | 1.97 | -15.00 | 3.57 | 245.36 | 18.64 | 295.38 | 0.3545 | -1276.2 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.40 | 2.86 | 245.06 | 18.34 | 293.90 | 0.3452 | -801.0 | -673.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 2.25 | 244.95 | 18.23 | 292.38 | 0.3396 | -937.0 | -784.5 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 3.04 | 244.93 | 18.21 | 294.53 | 0.3445 | -1054.0 | -823.1 | |
| 0.00 | 1.51 | 0.00 | 0.80 | 5.76 | 244.85 | 18.13 | 301.43 | 0.3643 | -874.0 | -585.2 | |
| 3.10 | -15.00 | 1.64 | -15.00 | 3.89 | 244.76 | 18.04 | 296.95 | 0.3481 | -1294.7 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 4.47 | 244.62 | 17.90 | 298.61 | 0.3505 | -517.0 | -635.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 5.10 | 244.51 | 17.79 | 300.35 | 0.3541 | 605.0 | 497.0 | |
| 0.00 | 2.83 | 0.00 | 1.49 | 3.27 | 244.37 | 17.65 | 295.85 | 0.3378 | -198.0 | -263.9 | |
| 0.00 | 1.86 | 0.00 | 0.98 | 3.05 | 244.27 | 17.55 | 295.40 | 0.3347 | -221.0 | -191.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 4.09 | 244.20 | 17.47 | 298.23 | 0.3414 | -812.0 | -595.2 | |
| 0.00 | 2.04 | 0.00 | 1.07 | 2.77 | 243.92 | 17.19 | 295.08 | 0.3275 | -847.0 | -640.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 3.10 | 243.86 | 17.14 | 296.08 | 0.3290 | 378.0 | 276.0 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 3.44 | 243.77 | 17.05 | 297.10 | 0.3302 | 217.0 | 173.4 | |
| 0.44 | 4.96 | 0.23 | 2.61 | 4.56 | 243.67 | 16.95 | 300.21 | 0.3377 | 739.2 | 9.8 | |
| 1.95 | 303.12 | 1.02 | 157.52 | 3.63 | 242.89 | 16.17 | 298.90 | 0.3189 | 680.0 | 371.8 | |
| 1.51 | 7.79 | 0.78 | 4.06 | 2.41 | 242.87 | 16.15 | 295.48 | 0.3092 | 963.1 | 641.2 | |
| 2.39 | -37.00 | 1.25 | -37.00 | 3.50 | 242.83 | 16.11 | 298.66 | 0.3170 | 988.8 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.20 | 2.77 | 242.82 | 16.09 | 296.62 | 0.3111 | 611.0 | 501.9 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 3.01 | 242.70 | 15.97 | 297.49 | 0.3111 | 250.0 | 293.2 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 2.43 | 242.62 | 15.90 | 295.91 | 0.3057 | 890.0 | 677.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 2.25 | 242.59 | 15.87 | 295.42 | 0.3038 | 755.0 | 695.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 0.79 | 242.58 | 15.85 | 290.96 | 0.2938 | 584.0 | 507.4 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 1.97 | 242.46 | 15.74 | 294.77 | 0.2999 | 733.0 | 615.5 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 2.73 | 242.35 | 15.62 | 297.20 | 0.3038 | 882.0 | 759.8 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 2.09 | 242.18 | 15.46 | 295.53 | 0.2965 | 891.0 | 720.6 | |
| 6.64 | -37.00 | 3.46 | -37.00 | 4.25 | 242.12 | 15.40 | 301.85 | 0.3132 | 687.1 | 999999 | |
| 0.00 | 3.90 | 0.00 | 2.02 | 2.14 | 241.93 | 15.21 | 296.07 | 0.2932 | 1044.0 | 815.6 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 4.79 | 241.98 | 15.26 | 303.56 | 0.3161 | 511.0 | 388.4 | |
| 0.00 | 4.87 | 0.00 | 2.53 | 2.84 | 241.91 | 15.19 | 298.21 | 0.2982 | 744.0 | 718.4 | |
| 3.72 | -37.00 | 1.93 | -37.00 | 3.30 | 241.86 | 15.13 | 299.63 | 0.3012 | 858.3 | 999999 | |
| 1.15 | -37.00 | 0.60 | -37.00 | 3.44 | 241.70 | 14.98 | 300.32 | 0.3002 | 773.6 | 999999 | |
| 23.11 | -37.00 | 12.01 | -37.00 | 3.84 | 241.68 | 14.95 | 301.48 | 0.3033 | 638.7 | 999999 | |
| 1.95 | -37.00 | 1.02 | -37.00 | 4.79 | 241.64 | 14.91 | 304.15 | 0.3113 | 734.4 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.30 | 5.79 | 241.51 | 14.78 | 307.00 | 0.3193 | 771.0 | 576.9 | |
| 4.07 | -37.00 | 2.12 | -37.00 | 4.51 | 241.44 | 14.72 | 303.75 | 0.3060 | 831.9 | 999999 | |
| 1.15 | 4.07 | 0.60 | 2.11 | 2.67 | 241.32 | 14.59 | 298.69 | 0.2882 | 1157.7 | 872.7 | |
| 3.72 | -37.00 | 1.93 | -37.00 | 3.28 | 241.23 | 14.51 | 300.65 | 0.2920 | 1076.2 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 5.42 | 241.28 | 14.55 | 306.48 | 0.3125 | 574.0 | 532.4 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 2.15 | 241.15 | 14.43 | 297.35 | 0.2816 | 875.0 | 691.2 | |
| 7.88 | -37.00 | 4.08 | -37.00 | 3.64 | 241.11 | 14.39 | 301.93 | 0.2935 | 1237.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 2.00 | 241.09 | 14.37 | 296.97 | 0.2795 | 812.0 | 635.9 | |
| 1.42 | 4.16 | 0.74 | 2.17 | 5.26 | 241.09 | 14.36 | 306.44 | 0.3084 | 930.8 | 735.6 | |
| 41.97 | -37.00 | 21.76 | -37.00 | 4.10 | 241.03 | 14.31 | 303.39 | 0.2965 | 1319.7 | 999999 | |
| 0.00 | 2.75 | 0.00 | 1.42 | 3.15 | 240.92 | 14.20 | 300.83 | 0.2864 | 1107.0 | 872.6 | |
| 0.00 | 4.96 | 0.00 | 2.56 | 3.14 | 240.58 | 13.85 | 301.44 | 0.2815 | 924.0 | 831.9 | |
| 0.00 | 4.16 | 0.00 | 2.16 | 5.16 | 240.55 | 13.83 | 307.22 | 0.3003 | 868.0 | 688.5 | |
| 0.00 | 3.72 | 0.00 | 1.93 | 4.85 | 240.48 | 13.76 | 306.53 | 0.2963 | 891.0 | 781.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 4.85 | 240.30 | 13.57 | 306.90 | 0.2937 | 825.0 | 757.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 5.24 | 240.31 | 13.58 | 307.95 | 0.2979 | 695.0 | 609.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 4.32 | 240.13 | 13.41 | 305.78 | 0.2863 | 952.0 | 793.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 5.76 | 240.01 | 13.29 | 309.92 | 0.2995 | 824.0 | 662.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
