SDO HMI 2014-04-17 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.54 | 241.11 | 30.34 | 194.63 | 11.96 | 275.60 | 49.43 | 289.73 | 0.7916 | -934.5 | -258.2 | |
|
previous
or next observation for the same group /

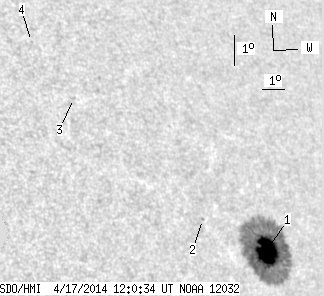

back to the solar disc SDO HMI 2014-04-17 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.54 | 238.01 | 30.34 | 192.34 | 11.92 | 275.67 | 49.50 | 289.65 | 0.7922 | -1061.0 | -266.4 | |
| 0.00 | 0.97 | 0.00 | 0.75 | 12.70 | 272.89 | 46.72 | 291.65 | 0.7664 | 476.0 | 415.6 | |
| 0.00 | 1.42 | 0.00 | 1.03 | 16.23 | 268.16 | 41.99 | 298.28 | 0.7317 | 216.0 | 270.7 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 17.99 | 266.88 | 40.71 | 301.20 | 0.7274 | 343.0 | 278.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
