SDO HMI 2014-04-17 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.39 | 236.48 | 29.74 | 192.97 | 11.97 | 275.55 | 49.92 | 289.56 | 0.7966 | -852.3 | -243.0 | |
|
previous
or next observation for the same group /

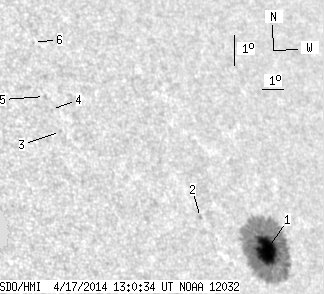

back to the solar disc SDO HMI 2014-04-17 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.39 | 231.25 | 29.74 | 189.15 | 11.90 | 275.69 | 50.06 | 289.42 | 0.7978 | -1086.6 | -259.6 | |
| 0.00 | 1.33 | 0.00 | 1.03 | 12.73 | 272.81 | 47.18 | 291.51 | 0.7713 | 505.0 | 423.0 | |
| 0.00 | 1.15 | 0.00 | 0.82 | 15.08 | 267.28 | 41.65 | 297.01 | 0.7226 | 667.0 | 550.8 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 15.78 | 267.07 | 41.45 | 298.00 | 0.7238 | 540.0 | 468.3 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 16.18 | 266.89 | 41.26 | 298.62 | 0.7238 | 470.0 | 420.6 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 17.93 | 266.90 | 41.27 | 300.79 | 0.7329 | 524.0 | 385.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
