SDO HMI 2014-04-17 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.37 | 175.13 | 20.10 | 115.67 | 11.90 | 263.40 | 37.77 | 294.98 | 0.6631 | -890.3 | -318.8 | |
|
previous
or next observation for the same group /

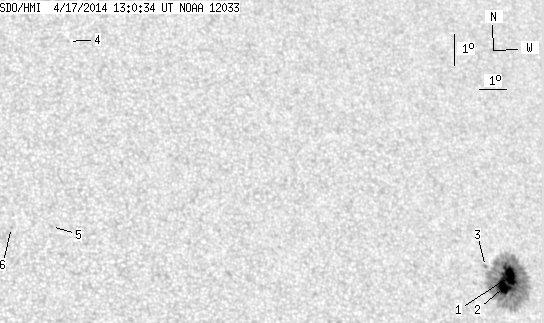

back to the solar disc SDO HMI 2014-04-17 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.53 | 171.14 | 11.63 | 113.26 | 12.01 | 263.70 | 38.07 | 294.89 | 0.6672 | -1021.4 | -326.8 | |
| 12.84 | -1.00 | 8.47 | -1.00 | 11.68 | 263.45 | 37.82 | 294.57 | 0.6626 | -1266.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.05 | 12.27 | 262.81 | 37.18 | 295.77 | 0.6580 | -819.0 | -670.6 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 18.83 | 248.73 | 23.10 | 317.37 | 0.5505 | 540.0 | 417.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 12.81 | 247.43 | 21.81 | 310.21 | 0.4763 | 737.0 | 504.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 12.74 | 246.10 | 20.48 | 311.85 | 0.4600 | 696.0 | 543.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
