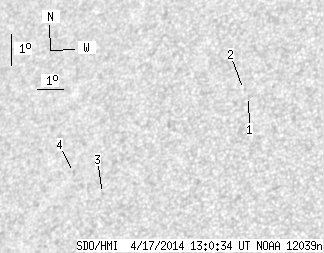

SDO HMI 2014-04-17 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.90 | 0.00 | 2.53 | 13.12 | 189.42 | -36.21 | 62.30 | 0.6516 | 78.5 | 145.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.55 | 14.59 | 193.28 | -32.34 | 57.65 | 0.6151 | -614.0 | -430.9 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 14.82 | 193.06 | -32.57 | 57.49 | 0.6193 | -200.0 | -261.7 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 11.81 | 188.22 | -37.41 | 65.02 | 0.6583 | 610.0 | 530.1 | |
| 0.00 | 1.59 | 0.00 | 1.07 | 12.54 | 186.96 | -38.67 | 64.71 | 0.6768 | 518.0 | 362.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
