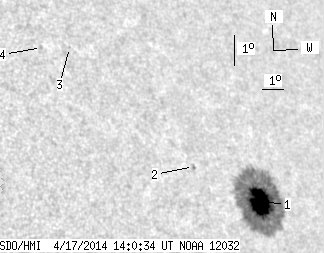

SDO HMI 2014-04-17 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.38 | 239.55 | 30.11 | 197.81 | 11.96 | 275.62 | 50.54 | 289.33 | 0.8027 | -929.3 | -252.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.38 | 235.30 | 30.11 | 194.61 | 11.92 | 275.72 | 50.64 | 289.24 | 0.8035 | -1069.6 | -264.1 | |
| 0.00 | 1.86 | 0.00 | 1.46 | 12.80 | 272.77 | 47.69 | 291.39 | 0.7768 | 348.0 | 304.9 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 16.27 | 268.18 | 43.10 | 297.75 | 0.7435 | 508.0 | 412.0 | |
| 0.00 | 1.68 | 0.00 | 1.22 | 16.19 | 266.96 | 41.89 | 298.29 | 0.7305 | 580.0 | 394.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
