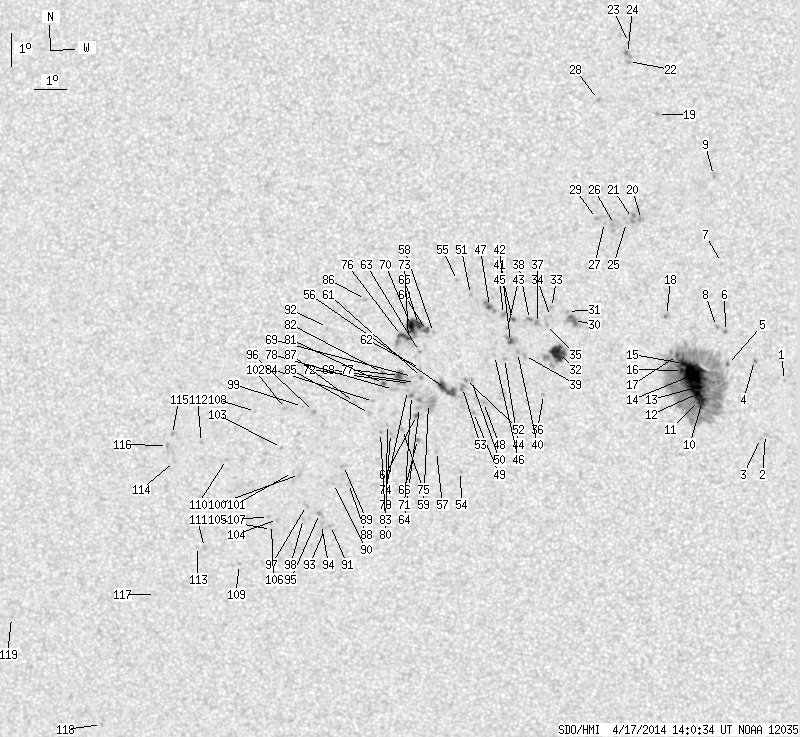

SDO HMI 2014-04-17 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.09 | 661.76 | 61.13 | 334.82 | -15.92 | 224.04 | -1.04 | 176.76 | 0.1972 | 272.5 | 259.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -16.23 | 230.39 | 5.32 | 205.31 | 0.2090 | 771.0 | 554.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -17.89 | 229.84 | 4.76 | 200.04 | 0.2314 | 873.0 | 624.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -18.02 | 229.68 | 4.60 | 199.25 | 0.2325 | 777.0 | 604.0 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -15.63 | 229.44 | 4.36 | 202.41 | 0.1930 | -553.0 | -456.8 | |
| 0.35 | 1.42 | 0.18 | 0.71 | -15.75 | 228.59 | 3.52 | 198.19 | 0.1900 | 968.2 | 743.7 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -14.75 | 228.52 | 3.44 | 199.66 | 0.1732 | 1128.0 | 884.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -12.65 | 228.36 | 3.29 | 203.93 | 0.1386 | -615.0 | -337.3 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -14.59 | 228.23 | 3.16 | 198.45 | 0.1691 | 819.0 | 661.1 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -10.02 | 228.09 | 3.02 | 212.79 | 0.0961 | 918.0 | 814.2 | |
| 3.63 | 346.93 | 1.84 | 175.21 | -16.86 | 227.83 | 2.75 | 193.02 | 0.2047 | 1066.6 | 427.8 | |
| 4.16 | -10.00 | 2.11 | -10.00 | -16.86 | 227.70 | 2.62 | 192.44 | 0.2043 | 1056.7 | 999999 | |
| 5.75 | -10.00 | 2.91 | -10.00 | -16.64 | 227.67 | 2.59 | 192.52 | 0.2005 | 1308.4 | 999999 | |
| 8.76 | -10.00 | 4.43 | -10.00 | -16.46 | 227.60 | 2.52 | 192.42 | 0.1972 | 1422.8 | 999999 | |
| 34.97 | -10.00 | 17.64 | -10.00 | -16.06 | 227.53 | 2.46 | 192.56 | 0.1903 | 1541.9 | 999999 | |
| 4.25 | -10.00 | 2.14 | -10.00 | -15.73 | 227.22 | 2.14 | 191.35 | 0.1835 | 1378.0 | 999999 | |
| 2.57 | -10.00 | 1.29 | -10.00 | -15.94 | 227.19 | 2.11 | 190.97 | 0.1870 | 1343.8 | 999999 | |
| 1.68 | -10.00 | 0.85 | -10.00 | -15.48 | 227.03 | 1.95 | 190.62 | 0.1788 | 922.8 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.33 | -14.26 | 226.68 | 1.60 | 189.97 | 0.1570 | -1179.0 | -847.2 | |
| 0.00 | 2.04 | 0.00 | 1.01 | -8.18 | 226.38 | 1.30 | 204.90 | 0.0536 | 857.0 | 527.3 | |
| 0.00 | 2.74 | 0.00 | 1.37 | -11.35 | 225.89 | 0.82 | 187.70 | 0.1049 | 836.0 | 848.5 | |
| 0.00 | 4.25 | 0.00 | 2.12 | -11.32 | 225.62 | 0.54 | 185.14 | 0.1039 | 1063.0 | 989.4 | |
| 0.00 | 1.68 | 0.00 | 0.83 | -6.59 | 225.50 | 0.42 | 199.48 | 0.0219 | 1090.0 | 910.2 | |
| 0.00 | 1.59 | 0.00 | 0.79 | -6.02 | 225.50 | 0.42 | 214.56 | 0.0129 | 900.0 | 658.4 | |
| 0.00 | 4.16 | 0.00 | 2.06 | -6.35 | 225.47 | 0.39 | 202.43 | 0.0178 | 1107.0 | 958.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -11.44 | 225.43 | 0.36 | 183.33 | 0.1057 | 852.0 | 641.8 | |
| 0.00 | 9.03 | 0.00 | 4.50 | -11.50 | 225.07 | -0.01 | 179.90 | 0.1066 | 852.0 | 695.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.44 | 224.76 | -0.32 | 177.04 | 0.1057 | 798.0 | 684.6 | |
| 0.00 | 1.68 | 0.00 | 0.83 | -7.73 | 224.58 | -0.49 | 168.13 | 0.0415 | -1044.0 | -802.9 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -11.32 | 224.51 | -0.56 | 174.65 | 0.1039 | 954.0 | 743.8 | |
| 0.00 | 11.07 | 0.00 | 5.55 | -14.41 | 223.79 | -1.29 | 172.08 | 0.1587 | 1265.0 | 973.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.14 | 223.60 | -1.47 | 170.68 | 0.1545 | 996.0 | 867.7 | |
| 15.58 | 29.92 | 7.84 | 15.06 | -15.42 | 223.31 | -1.76 | 170.31 | 0.1771 | 1155.0 | 676.3 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -14.01 | 223.11 | -1.97 | 167.45 | 0.1540 | 1011.0 | 769.6 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -14.29 | 223.07 | -2.00 | 167.63 | 0.1587 | 965.0 | 757.6 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -14.53 | 222.95 | -2.13 | 167.23 | 0.1633 | 787.0 | 613.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.67 | 222.83 | -2.25 | 169.11 | 0.1998 | 972.0 | 753.2 | |
| 0.00 | 2.83 | 0.00 | 1.42 | -14.50 | 222.67 | -2.41 | 165.57 | 0.1639 | 993.0 | 927.7 | |
| 0.44 | 3.01 | 0.22 | 1.51 | -14.38 | 222.42 | -2.65 | 163.95 | 0.1630 | 1143.8 | 784.2 | |
| 0.00 | 2.30 | 0.00 | 1.16 | -15.47 | 222.25 | -2.83 | 164.79 | 0.1820 | 770.0 | 709.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.38 | 222.03 | -3.04 | 163.54 | 0.1815 | 992.0 | 843.8 | |
| 0.89 | 1.77 | 0.44 | 0.89 | -14.37 | 221.89 | -3.18 | 160.96 | 0.1657 | 1158.3 | 971.5 | |
| 1.50 | 8.32 | 0.76 | 4.19 | -15.04 | 221.82 | -3.26 | 161.86 | 0.1770 | 1138.6 | 924.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.65 | 221.73 | -3.34 | 160.64 | 0.1710 | 981.0 | 773.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -15.56 | 221.62 | -3.45 | 161.79 | 0.1865 | 820.0 | 663.8 | |
| 0.00 | 2.83 | 0.00 | 1.42 | -14.22 | 221.62 | -3.46 | 159.10 | 0.1648 | 1004.0 | 846.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.47 | 221.31 | -3.76 | 160.10 | 0.1867 | 718.0 | 558.2 | |
| 1.42 | 7.35 | 0.71 | 3.69 | -13.97 | 221.18 | -3.89 | 156.16 | 0.1637 | 1087.1 | 915.6 | |
| 0.00 | 2.74 | 0.00 | 1.39 | -16.90 | 220.94 | -4.14 | 160.90 | 0.2120 | 892.0 | 727.3 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -17.21 | 220.61 | -4.46 | 160.04 | 0.2188 | 745.0 | 525.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.23 | 220.57 | -4.50 | 158.15 | 0.2034 | 970.0 | 836.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -13.60 | 220.60 | -4.47 | 152.02 | 0.1624 | 813.0 | 609.9 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -16.19 | 220.39 | -4.69 | 157.27 | 0.2041 | 1077.0 | 829.3 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -16.44 | 220.29 | -4.79 | 157.31 | 0.2086 | 956.0 | 860.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -19.02 | 220.15 | -4.93 | 160.99 | 0.2504 | 769.0 | 613.6 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -13.17 | 220.21 | -4.87 | 148.60 | 0.1594 | 934.0 | 691.8 | |
| 9.47 | 17.44 | 4.80 | 8.84 | -16.50 | 219.78 | -5.30 | 155.33 | 0.2129 | 989.3 | 740.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.40 | 219.40 | -5.67 | 157.39 | 0.2450 | -941.0 | -719.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.75 | 219.42 | -5.65 | 149.64 | 0.1894 | -293.0 | -343.5 | |
| 0.00 | 17.26 | 0.00 | 8.77 | -16.92 | 219.20 | -5.88 | 153.90 | 0.2237 | -457.0 | -343.0 | |
| 2.12 | 40.72 | 1.07 | 20.57 | -14.69 | 219.21 | -5.87 | 148.52 | 0.1904 | -973.7 | -523.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.12 | 219.01 | -6.07 | 151.39 | 0.2132 | 1073.0 | 888.3 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -15.84 | 218.98 | -6.09 | 150.65 | 0.2093 | 306.0 | 232.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -15.32 | 218.97 | -6.11 | 149.27 | 0.2018 | 694.0 | 528.7 | |
| 0.00 | 2.74 | 0.00 | 1.40 | -17.04 | 218.91 | -6.16 | 153.06 | 0.2277 | -900.0 | -739.7 | |
| 4.25 | -60.00 | 2.14 | -60.00 | -14.50 | 218.96 | -6.12 | 146.94 | 0.1899 | -1121.6 | 999999 | |
| 0.35 | 1.59 | 0.18 | 0.81 | -18.02 | 218.81 | -6.26 | 154.64 | 0.2433 | -1052.0 | -871.5 | |
| 0.71 | 1.68 | 0.36 | 0.86 | -17.28 | 218.81 | -6.27 | 153.18 | 0.2322 | -1017.0 | -892.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -16.27 | 218.81 | -6.27 | 150.99 | 0.2170 | -616.0 | -489.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -16.09 | 218.72 | -6.35 | 150.21 | 0.2150 | 282.0 | 214.8 | |
| 9.03 | -60.00 | 4.56 | -60.00 | -14.56 | 218.74 | -6.34 | 146.19 | 0.1929 | -1161.0 | 999999 | |
| 0.44 | 3.19 | 0.22 | 1.62 | -16.67 | 218.67 | -6.40 | 151.37 | 0.2240 | -984.6 | -834.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -16.30 | 218.65 | -6.42 | 150.45 | 0.2188 | -718.0 | -626.9 | |
| 1.86 | -60.00 | 0.94 | -60.00 | -14.92 | 218.63 | -6.44 | 146.83 | 0.1990 | -1032.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -16.51 | 218.55 | -6.53 | 150.57 | 0.2227 | -947.0 | -808.0 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -17.71 | 218.35 | -6.73 | 152.41 | 0.2421 | -959.0 | -784.7 | |
| 2.48 | -60.00 | 1.25 | -60.00 | -14.83 | 218.42 | -6.66 | 145.69 | 0.1997 | -1009.7 | 999999 | |
| 3.54 | 11.86 | 1.80 | 6.02 | -16.05 | 218.31 | -6.76 | 148.58 | 0.2181 | -1062.5 | -656.6 | |
| 0.00 | 3.10 | 0.00 | 1.58 | -16.48 | 218.11 | -6.97 | 148.87 | 0.2260 | -963.0 | -865.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.83 | 217.96 | -7.12 | 151.33 | 0.2469 | -884.0 | -757.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.55 | 217.88 | -7.20 | 150.47 | 0.2435 | -744.0 | -655.5 | |
| 0.89 | 1.95 | 0.45 | 0.99 | -16.29 | 217.80 | -7.28 | 147.31 | 0.2261 | -1053.2 | -876.3 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.95 | 217.78 | -7.29 | 146.39 | 0.2215 | -953.0 | -739.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.79 | 217.64 | -7.43 | 150.21 | 0.2490 | -986.0 | -815.4 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -16.84 | 217.46 | -7.61 | 147.47 | 0.2369 | -1014.0 | -820.4 | |
| 0.00 | 2.66 | 0.00 | 1.36 | -17.20 | 217.32 | -7.76 | 147.85 | 0.2434 | -602.0 | -396.5 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -13.72 | 217.33 | -7.75 | 137.98 | 0.1965 | -907.0 | -723.2 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -16.86 | 216.86 | -8.22 | 145.55 | 0.2429 | -867.0 | -663.0 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -19.35 | 216.54 | -8.53 | 149.94 | 0.2808 | -785.0 | -678.8 | |
| 0.00 | 2.57 | 0.00 | 1.32 | -18.79 | 216.41 | -8.66 | 148.47 | 0.2740 | -996.0 | -767.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -19.35 | 216.06 | -9.02 | 148.56 | 0.2848 | -815.0 | -622.9 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -20.65 | 215.88 | -9.19 | 150.48 | 0.3047 | -666.0 | -616.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -14.55 | 216.11 | -8.97 | 136.67 | 0.2209 | -804.0 | -673.0 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -20.77 | 215.68 | -9.40 | 150.16 | 0.3081 | -496.0 | -549.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -20.61 | 215.59 | -9.48 | 149.66 | 0.3066 | -795.0 | -705.9 | |
| 0.00 | 2.57 | 0.00 | 1.33 | -20.27 | 215.55 | -9.53 | 148.93 | 0.3022 | -962.0 | -667.6 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -17.12 | 215.54 | -9.54 | 142.20 | 0.2595 | -1055.0 | -899.0 | |
| 0.00 | 2.74 | 0.00 | 1.43 | -20.02 | 215.14 | -9.93 | 147.40 | 0.3022 | -919.0 | -760.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -20.42 | 215.02 | -10.06 | 147.84 | 0.3088 | -790.0 | -699.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -16.96 | 215.20 | -9.88 | 140.83 | 0.2610 | -902.0 | -814.6 | |
| 0.00 | 2.74 | 0.00 | 1.42 | -19.05 | 214.98 | -10.10 | 145.05 | 0.2906 | -378.0 | -432.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -18.98 | 214.76 | -10.32 | 144.34 | 0.2919 | -740.0 | -614.7 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -17.01 | 214.65 | -10.42 | 139.49 | 0.2676 | -830.0 | -636.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -18.21 | 214.45 | -10.63 | 141.85 | 0.2848 | -838.0 | -624.7 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -20.43 | 214.17 | -10.91 | 145.79 | 0.3168 | -740.0 | -546.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -20.74 | 213.95 | -11.13 | 145.85 | 0.3229 | -717.0 | -627.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -20.59 | 213.96 | -11.12 | 145.58 | 0.3207 | -877.0 | -678.9 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -20.34 | 213.88 | -11.19 | 144.92 | 0.3181 | -987.0 | -800.3 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -17.08 | 213.69 | -11.39 | 137.23 | 0.2792 | -674.0 | -443.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -21.82 | 212.81 | -12.27 | 145.25 | 0.3477 | -792.0 | -499.5 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -18.54 | 212.65 | -12.43 | 138.33 | 0.3083 | -893.0 | -655.5 | |
| 0.00 | 2.57 | 0.00 | 1.36 | -21.26 | 211.70 | -13.38 | 141.94 | 0.3514 | -769.0 | -641.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -18.00 | 211.88 | -13.20 | 135.41 | 0.3107 | -918.0 | -731.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -21.22 | 211.47 | -13.61 | 141.42 | 0.3532 | -493.0 | -469.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -18.57 | 210.95 | -14.13 | 134.86 | 0.3279 | -667.0 | -494.6 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -17.73 | 210.95 | -14.12 | 132.92 | 0.3187 | -738.0 | -671.5 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -18.07 | 210.76 | -14.31 | 133.35 | 0.3246 | -855.0 | -674.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -22.70 | 209.90 | -15.17 | 141.18 | 0.3868 | -599.0 | -542.4 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -26.79 | 207.48 | -17.60 | 143.77 | 0.4586 | -682.0 | -527.0 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -23.28 | 204.88 | -20.20 | 134.55 | 0.4468 | 735.0 | 619.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
