SDO HMI 2014-04-17 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.78 | 179.87 | 21.37 | 120.43 | 11.93 | 263.23 | 38.70 | 294.52 | 0.6742 | -812.8 | -285.5 | |
|
previous
or next observation for the same group /

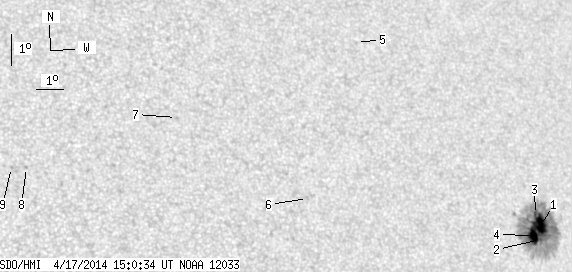

back to the solar disc SDO HMI 2014-04-17 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.94 | 173.67 | 12.77 | 116.76 | 11.98 | 263.74 | 39.21 | 294.22 | 0.6804 | -999.1 | -311.9 | |
| 0.27 | -1.00 | 0.18 | -1.00 | 11.54 | 263.66 | 39.13 | 293.65 | 0.6774 | -932.3 | 999999 | |
| 0.27 | -1.00 | 0.18 | -1.00 | 12.32 | 263.60 | 39.07 | 294.76 | 0.6804 | -836.7 | 999999 | |
| 12.30 | -1.00 | 8.24 | -1.00 | 11.65 | 263.40 | 38.88 | 293.94 | 0.6749 | -1292.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.80 | 17.49 | 257.69 | 33.16 | 305.67 | 0.6445 | -357.0 | -293.1 | |
| 0.00 | 1.42 | 0.00 | 0.86 | 12.36 | 255.02 | 30.50 | 300.53 | 0.5778 | 649.0 | 559.1 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 14.73 | 250.72 | 26.20 | 308.12 | 0.5448 | 691.0 | 616.2 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 12.94 | 245.45 | 20.92 | 311.58 | 0.4672 | 772.0 | 607.9 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 12.92 | 244.95 | 20.43 | 312.23 | 0.4613 | 677.0 | 598.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
