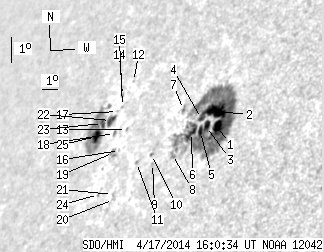

SDO HMI 2014-04-17 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.96 | 319.53 | 62.01 | 337.02 | 18.65 | 166.06 | -57.91 | 65.46 | 0.8831 | -223.4 | -160.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.79 | 236.51 | 7.62 | 235.54 | 18.39 | 168.55 | -55.42 | 64.96 | 0.8643 | -938.0 | -248.9 | |
| 19.83 | -1.00 | 19.68 | -1.00 | 18.91 | 168.24 | -55.73 | 64.51 | 0.8682 | -697.3 | 999999 | |
| 4.34 | -1.00 | 4.32 | -1.00 | 18.45 | 167.90 | -56.07 | 65.13 | 0.8696 | -640.6 | 999999 | |
| 1.95 | -1.00 | 1.97 | -1.00 | 18.74 | 167.46 | -56.51 | 64.95 | 0.8738 | -293.5 | 999999 | |
| 3.81 | -1.00 | 3.82 | -1.00 | 18.31 | 167.63 | -56.35 | 65.37 | 0.8714 | -557.3 | 999999 | |
| 8.14 | -1.00 | 8.29 | -1.00 | 18.32 | 167.10 | -56.88 | 65.53 | 0.8755 | -421.1 | 999999 | |
| 0.00 | 2.66 | 0.00 | 2.80 | 19.14 | 166.19 | -57.79 | 64.93 | 0.8844 | -231.0 | -149.8 | |
| 0.00 | 3.63 | 0.00 | 3.75 | 17.67 | 166.31 | -57.67 | 66.49 | 0.8799 | 11.0 | -21.0 | |
| 0.00 | 0.97 | 0.00 | 1.04 | 17.47 | 165.20 | -58.77 | 67.04 | 0.8878 | -181.0 | -139.5 | |
| 0.00 | 1.24 | 0.00 | 1.34 | 17.78 | 164.97 | -59.00 | 66.77 | 0.8901 | -79.0 | -71.2 | |
| 0.00 | 1.33 | 0.00 | 1.47 | 17.60 | 164.14 | -59.84 | 67.22 | 0.8957 | 531.0 | 455.3 | |
| 0.00 | 0.71 | 0.00 | 0.86 | 20.40 | 162.20 | -61.77 | 64.79 | 0.9145 | 250.0 | 238.9 | |
| 0.00 | 0.97 | 0.00 | 1.14 | 18.78 | 162.80 | -61.18 | 66.33 | 0.9074 | 465.0 | 434.4 | |
| 0.00 | 1.50 | 0.00 | 1.85 | 19.98 | 161.73 | -62.24 | 65.36 | 0.9167 | 298.0 | 230.6 | |
| 0.00 | 0.80 | 0.00 | 0.97 | 19.60 | 162.00 | -61.98 | 65.69 | 0.9143 | 545.0 | 500.2 | |
| 0.00 | 0.27 | 0.00 | 0.31 | 18.10 | 162.74 | -61.23 | 67.07 | 0.9065 | 507.0 | 561.0 | |
| 0.00 | 1.06 | 0.00 | 1.30 | 19.46 | 161.75 | -62.23 | 65.91 | 0.9156 | 454.0 | 416.1 | |
| 0.00 | 2.12 | 0.00 | 2.55 | 18.72 | 162.03 | -61.95 | 66.61 | 0.9124 | 446.0 | 367.0 | |
| 0.00 | 4.16 | 0.00 | 4.90 | 18.07 | 162.36 | -61.61 | 67.21 | 0.9090 | 517.0 | 469.7 | |
| 0.00 | 1.68 | 0.00 | 1.89 | 16.48 | 163.27 | -60.71 | 68.66 | 0.8997 | 664.0 | 496.8 | |
| 0.00 | 0.62 | 0.00 | 0.70 | 16.65 | 163.11 | -60.87 | 68.52 | 0.9011 | 497.0 | 419.9 | |
| 4.51 | 6.46 | 5.54 | 7.93 | 19.19 | 161.44 | -62.53 | 66.27 | 0.9171 | 583.5 | 445.1 | |
| 3.19 | 51.51 | 3.99 | 65.12 | 19.14 | 160.91 | -63.06 | 66.47 | 0.9203 | 390.5 | -94.3 | |
| 0.00 | 1.33 | 0.00 | 1.56 | 16.74 | 162.14 | -61.84 | 68.69 | 0.9080 | 429.0 | 373.3 | |
| 5.40 | -23.00 | 6.78 | -23.00 | 18.73 | 160.76 | -63.21 | 66.94 | 0.9205 | 367.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
