SDO HMI 2014-04-17 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.21 | 194.36 | 34.41 | 128.85 | -12.81 | 181.35 | -41.52 | 103.23 | 0.6662 | 309.3 | -41.6 | |
|
previous
or next observation for the same group /

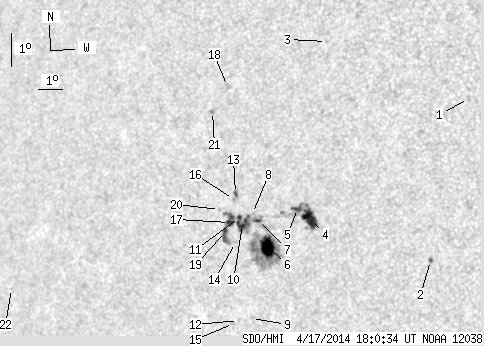

back to the solar disc SDO HMI 2014-04-17 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.26 | -9.39 | 189.76 | -33.11 | 98.92 | 0.5477 | 409.0 | 231.2 | |
| 0.53 | 1.77 | 0.32 | 1.08 | -14.21 | 187.65 | -35.22 | 106.88 | 0.5865 | 744.0 | 588.9 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -7.39 | 184.64 | -38.23 | 95.08 | 0.6183 | 379.0 | 341.3 | |
| 15.49 | 38.50 | 9.98 | 24.88 | -12.67 | 183.21 | -39.66 | 103.33 | 0.6423 | 884.1 | 281.0 | |
| 3.36 | -4.00 | 2.18 | -4.00 | -12.34 | 182.78 | -40.09 | 102.74 | 0.6472 | 602.4 | 999999 | |
| 16.37 | 136.04 | 10.86 | 90.84 | -13.44 | 181.34 | -41.53 | 104.16 | 0.6674 | 1060.0 | -119.0 | |
| 1.59 | -6.00 | 1.06 | -6.00 | -12.60 | 181.10 | -41.77 | 102.87 | 0.6692 | -900.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -12.38 | 180.93 | -41.94 | 102.51 | 0.6710 | -250.0 | -302.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -15.55 | 180.16 | -42.70 | 107.02 | 0.6857 | 645.0 | 654.0 | |
| 7.26 | -6.00 | 4.87 | -6.00 | -12.68 | 180.45 | -42.42 | 102.90 | 0.6774 | -951.6 | 999999 | |
| 1.86 | -6.00 | 1.25 | -6.00 | -12.46 | 180.37 | -42.50 | 102.56 | 0.6781 | -724.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -15.57 | 179.60 | -43.27 | 106.94 | 0.6925 | 721.0 | 538.9 | |
| 1.06 | 2.83 | 0.71 | 1.90 | -11.73 | 180.35 | -42.52 | 101.48 | 0.6775 | -742.3 | -557.0 | |
| 0.00 | 1.59 | 0.00 | 1.08 | -13.21 | 180.05 | -42.82 | 103.60 | 0.6832 | -379.0 | -350.9 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -15.65 | 179.36 | -43.51 | 107.00 | 0.6955 | 635.0 | 464.3 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -11.91 | 180.23 | -42.64 | 101.72 | 0.6792 | -862.0 | -732.2 | |
| 3.01 | -6.00 | 2.04 | -6.00 | -12.59 | 179.93 | -42.94 | 102.68 | 0.6838 | -755.9 | 999999 | |
| 0.00 | 3.01 | 0.00 | 2.01 | -8.50 | 180.55 | -42.32 | 96.69 | 0.6727 | 209.0 | 259.2 | |
| 1.68 | -6.00 | 1.14 | -6.00 | -12.85 | 179.70 | -43.17 | 103.03 | 0.6870 | -731.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -12.17 | 179.59 | -43.28 | 102.03 | 0.6875 | -372.0 | -293.2 | |
| 0.00 | 1.50 | 0.00 | 1.02 | -9.21 | 179.83 | -43.04 | 97.71 | 0.6822 | 811.0 | 715.9 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -13.88 | 169.41 | -53.46 | 103.29 | 0.8037 | -517.0 | -439.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
