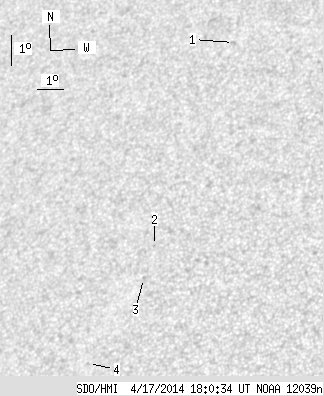

SDO HMI 2014-04-17 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.51 | 0.00 | 2.96 | 15.80 | 187.82 | -35.05 | 58.13 | 0.6568 | 290.2 | 90.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 1.24 | 20.68 | 189.28 | -33.59 | 50.60 | 0.6721 | -619.0 | -502.3 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 14.17 | 187.65 | -35.22 | 60.34 | 0.6458 | 560.0 | 492.8 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 13.14 | 187.41 | -35.46 | 61.94 | 0.6425 | 647.0 | 511.6 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 10.57 | 185.70 | -37.17 | 66.64 | 0.6492 | 573.0 | 534.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
