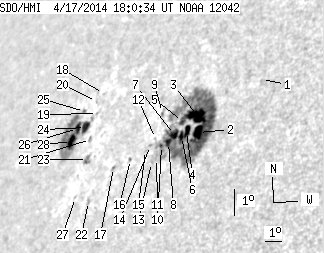

SDO HMI 2014-04-17 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.07 | 328.21 | 69.64 | 334.93 | 18.66 | 166.09 | -56.78 | 65.08 | 0.8746 | -255.8 | -191.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.64 | 19.88 | 171.28 | -51.59 | 61.89 | 0.8376 | -96.0 | -89.2 | |
| 9.74 | 240.12 | 9.24 | 231.61 | 18.36 | 168.63 | -54.24 | 64.59 | 0.8547 | -1005.3 | -283.4 | |
| 19.12 | -2.00 | 18.39 | -2.00 | 18.94 | 168.30 | -54.57 | 64.06 | 0.8590 | -774.1 | 999999 | |
| 5.84 | -2.00 | 5.64 | -2.00 | 18.45 | 167.93 | -54.94 | 64.74 | 0.8606 | -671.8 | 999999 | |
| 2.48 | -2.00 | 2.43 | -2.00 | 18.81 | 167.53 | -55.34 | 64.48 | 0.8648 | -326.2 | 999999 | |
| 3.72 | -2.00 | 3.61 | -2.00 | 18.30 | 167.72 | -55.15 | 64.97 | 0.8619 | -619.7 | 999999 | |
| 5.75 | -2.00 | 5.66 | -2.00 | 18.41 | 167.28 | -55.59 | 65.01 | 0.8657 | -397.8 | 999999 | |
| 3.72 | -2.00 | 3.67 | -2.00 | 18.16 | 167.06 | -55.81 | 65.35 | 0.8668 | -481.6 | 999999 | |
| 0.00 | 3.10 | 0.00 | 3.16 | 19.21 | 166.18 | -56.69 | 64.49 | 0.8764 | -263.0 | -136.2 | |
| 1.15 | -2.00 | 1.15 | -2.00 | 18.10 | 166.69 | -56.18 | 65.55 | 0.8695 | -153.3 | 999999 | |
| 0.00 | 3.81 | 0.00 | 3.79 | 17.68 | 166.60 | -56.27 | 66.03 | 0.8691 | -79.0 | -87.8 | |
| 0.00 | 0.89 | 0.00 | 0.90 | 18.36 | 166.21 | -56.66 | 65.41 | 0.8739 | -124.0 | -57.5 | |
| 0.00 | 0.97 | 0.00 | 0.97 | 17.57 | 166.37 | -56.50 | 66.23 | 0.8707 | -135.0 | -129.4 | |
| 0.00 | 1.06 | 0.00 | 1.08 | 18.15 | 166.03 | -56.84 | 65.70 | 0.8748 | 249.0 | 211.1 | |
| 0.00 | 0.35 | 0.00 | 0.36 | 18.01 | 165.81 | -57.06 | 65.93 | 0.8761 | 177.0 | 173.8 | |
| 0.00 | 1.42 | 0.00 | 1.48 | 17.78 | 165.03 | -57.84 | 66.42 | 0.8815 | -251.0 | -182.2 | |
| 0.00 | 0.89 | 0.00 | 0.95 | 17.60 | 164.10 | -58.77 | 66.90 | 0.8880 | 470.0 | 459.0 | |
| 0.00 | 0.53 | 0.00 | 0.62 | 20.20 | 161.92 | -60.95 | 64.77 | 0.9088 | 355.0 | 304.3 | |
| 0.00 | 0.71 | 0.00 | 0.83 | 19.54 | 161.95 | -60.92 | 65.45 | 0.9072 | 491.0 | 483.5 | |
| 0.00 | 0.71 | 0.00 | 0.84 | 19.96 | 161.61 | -61.26 | 65.11 | 0.9103 | 249.0 | 210.9 | |
| 0.00 | 2.04 | 0.00 | 2.35 | 18.68 | 162.02 | -60.85 | 66.34 | 0.9050 | 491.0 | 362.0 | |
| 0.00 | 1.95 | 0.00 | 2.13 | 16.59 | 163.07 | -59.80 | 68.29 | 0.8934 | 547.0 | 477.9 | |
| 0.00 | 4.60 | 0.00 | 5.24 | 18.02 | 162.22 | -60.65 | 67.00 | 0.9023 | 587.0 | 457.5 | |
| 5.84 | 62.40 | 6.92 | 75.65 | 19.13 | 161.41 | -61.46 | 66.04 | 0.9100 | 561.7 | -76.5 | |
| 0.00 | 1.68 | 0.00 | 2.03 | 19.69 | 160.98 | -61.89 | 65.57 | 0.9139 | 294.0 | 192.1 | |
| 4.60 | -24.00 | 5.55 | -24.00 | 19.14 | 160.86 | -62.01 | 66.18 | 0.9136 | 351.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.30 | 16.80 | 162.13 | -60.74 | 68.33 | 0.9006 | 473.0 | 499.7 | |
| 6.11 | -24.00 | 7.38 | -24.00 | 18.73 | 160.71 | -62.16 | 66.65 | 0.9138 | 420.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
