SDO HMI 2014-04-17 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.62 | 0.00 | 5.64 | -13.54 | 203.95 | -18.36 | 114.40 | 0.3401 | -591.8 | -509.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 19:00:34 UT

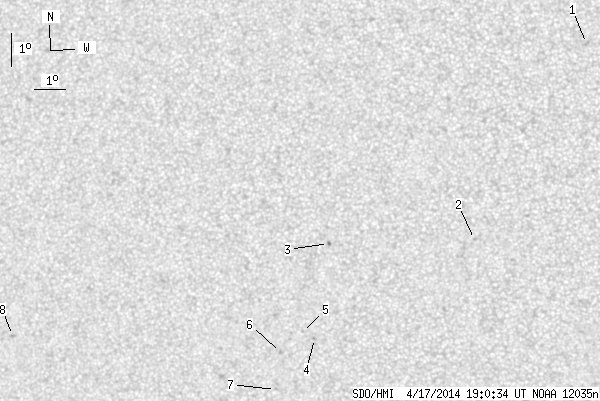

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.20 | -7.30 | 212.17 | -10.15 | 101.17 | 0.1789 | -859.0 | -696.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -13.15 | 208.43 | -13.89 | 120.44 | 0.2723 | 796.0 | 656.6 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.14 | 203.73 | -18.59 | 114.18 | 0.3417 | -868.0 | -723.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.02 | 203.01 | -19.31 | 120.77 | 0.3715 | -817.0 | -668.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -15.79 | 202.63 | -19.68 | 119.79 | 0.3751 | -667.0 | -481.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -16.41 | 201.83 | -20.48 | 120.35 | 0.3907 | -810.0 | -683.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -17.54 | 201.53 | -20.78 | 122.55 | 0.4031 | -684.0 | -552.5 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -15.53 | 192.68 | -29.64 | 111.48 | 0.5141 | -825.0 | -675.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
