SDO HMI 2014-04-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 223.76 | 1123.98 | 122.40 | 615.87 | 4.14 | 244.96 | 23.19 | 292.17 | 0.4250 | -157.0 | -126.3 | |
|
previous
or next observation for the same group /

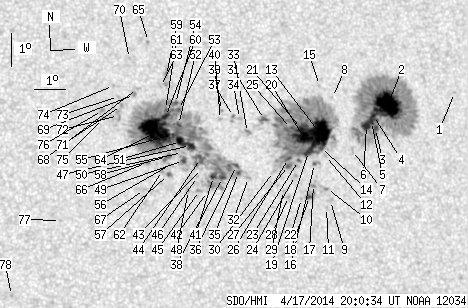

back to the solar disc SDO HMI 2014-04-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.51 | 5.54 | 251.03 | 29.27 | 290.09 | 0.5202 | -645.0 | -560.2 | |
| 37.09 | 320.16 | 20.98 | 180.83 | 5.04 | 248.71 | 26.95 | 290.76 | 0.4847 | -1215.3 | -385.5 | |
| 2.57 | -2.00 | 1.44 | -2.00 | 4.32 | 248.27 | 26.51 | 289.67 | 0.4746 | -864.8 | 999999 | |
| 1.86 | -2.00 | 1.05 | -2.00 | 4.71 | 248.22 | 26.46 | 290.49 | 0.4760 | -1204.9 | 999999 | |
| 3.63 | -2.00 | 2.04 | -2.00 | 4.53 | 248.15 | 26.38 | 290.17 | 0.4739 | -1135.9 | 999999 | |
| 5.93 | -2.00 | 3.33 | -2.00 | 4.40 | 247.97 | 26.21 | 290.04 | 0.4707 | -1143.8 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.33 | 3.61 | 247.47 | 25.71 | 288.82 | 0.4593 | -820.0 | -621.2 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 5.21 | 246.87 | 25.10 | 292.54 | 0.4593 | -485.0 | -405.8 | |
| 0.00 | 2.92 | 0.00 | 1.61 | 2.06 | 246.70 | 24.94 | 286.06 | 0.4403 | -658.0 | -569.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 2.42 | 246.58 | 24.81 | 286.92 | 0.4401 | -797.0 | -681.4 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 1.85 | 246.56 | 24.80 | 285.67 | 0.4373 | -714.0 | -633.9 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 3.43 | 246.57 | 24.80 | 289.09 | 0.4450 | -599.0 | -456.8 | |
| 37.35 | 301.49 | 20.66 | 166.08 | 4.09 | 246.42 | 24.66 | 290.60 | 0.4465 | -1137.6 | -542.7 | |
| 2.48 | -13.00 | 1.37 | -13.00 | 3.66 | 246.41 | 24.65 | 289.71 | 0.4439 | -777.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 5.56 | 246.45 | 24.69 | 293.61 | 0.4555 | 291.0 | 74.6 | |
| 0.62 | 3.19 | 0.34 | 1.76 | 3.17 | 246.20 | 24.43 | 288.82 | 0.4381 | -805.3 | -664.4 | |
| 0.00 | 3.01 | 0.00 | 1.65 | 2.53 | 246.15 | 24.38 | 287.45 | 0.4342 | -860.0 | -808.0 | |
| 1.95 | 7.35 | 1.07 | 4.03 | 2.16 | 246.01 | 24.24 | 286.74 | 0.4303 | -1059.8 | -781.7 | |
| 5.58 | -13.00 | 3.07 | -13.00 | 3.53 | 246.01 | 24.24 | 289.73 | 0.4372 | -1040.8 | 999999 | |
| 18.85 | -13.00 | 10.38 | -13.00 | 3.98 | 245.86 | 24.09 | 290.83 | 0.4375 | -1404.0 | 999999 | |
| 6.11 | -13.00 | 3.36 | -13.00 | 4.22 | 245.80 | 24.03 | 291.39 | 0.4381 | -1071.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 2.09 | 245.74 | 23.98 | 286.76 | 0.4259 | -863.0 | -753.8 | |
| 0.80 | -13.00 | 0.44 | -13.00 | 3.24 | 245.67 | 23.91 | 289.38 | 0.4307 | -1047.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.87 | 2.78 | 245.56 | 23.80 | 288.45 | 0.4266 | -1012.0 | -833.7 | |
| 0.27 | -13.00 | 0.15 | -13.00 | 4.21 | 245.47 | 23.70 | 291.65 | 0.4332 | -1063.7 | 999999 | |
| 1.68 | -13.00 | 0.92 | -13.00 | 3.29 | 245.34 | 23.58 | 289.75 | 0.4261 | -1124.9 | 999999 | |
| 1.68 | -13.00 | 0.92 | -13.00 | 3.07 | 245.33 | 23.57 | 289.28 | 0.4248 | -1087.7 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 2.13 | 245.31 | 23.55 | 287.17 | 0.4197 | -886.0 | -683.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 2.31 | 245.15 | 23.39 | 287.69 | 0.4181 | -673.0 | -507.9 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 2.87 | 244.84 | 23.07 | 289.23 | 0.4163 | -851.0 | -626.2 | |
| 1.86 | 4.16 | 1.01 | 2.27 | 4.45 | 244.59 | 22.82 | 292.96 | 0.4218 | -945.4 | -677.0 | |
| 0.00 | 2.30 | 0.00 | 1.24 | 2.66 | 244.02 | 22.25 | 289.42 | 0.4028 | -658.0 | -476.7 | |
| 0.00 | 3.01 | 0.00 | 1.63 | 4.03 | 244.02 | 22.26 | 292.57 | 0.4109 | -654.0 | -604.1 | |
| 0.00 | 2.30 | 0.00 | 1.25 | 4.45 | 243.77 | 22.01 | 293.75 | 0.4099 | -114.0 | -100.7 | |
| 1.24 | 388.50 | 0.67 | 207.62 | 2.80 | 243.69 | 21.93 | 290.03 | 0.3988 | -745.1 | 330.1 | |
| 1.24 | -35.00 | 0.67 | -35.00 | 3.01 | 243.63 | 21.87 | 290.58 | 0.3991 | 460.4 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.96 | 4.50 | 243.58 | 21.81 | 294.06 | 0.4074 | 695.0 | 571.7 | |
| 2.30 | -35.00 | 1.24 | -35.00 | 2.63 | 243.17 | 21.41 | 290.10 | 0.3899 | 504.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 4.67 | 243.19 | 21.43 | 294.84 | 0.4030 | -628.0 | -520.9 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 4.40 | 243.15 | 21.39 | 294.26 | 0.4005 | -783.0 | -623.7 | |
| 3.45 | -35.00 | 1.85 | -35.00 | 2.65 | 242.88 | 21.12 | 290.41 | 0.3857 | 823.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 2.19 | 242.68 | 20.92 | 289.46 | 0.3800 | 482.0 | 404.3 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 2.88 | 242.50 | 20.74 | 291.34 | 0.3813 | 488.0 | 560.8 | |
| 4.34 | -35.00 | 2.32 | -35.00 | 3.19 | 242.47 | 20.71 | 292.10 | 0.3827 | 821.0 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 2.21 | 242.42 | 20.66 | 289.75 | 0.3762 | 783.0 | 657.6 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 2.64 | 242.36 | 20.60 | 290.86 | 0.3778 | 710.0 | 640.5 | |
| 5.40 | -35.00 | 2.89 | -35.00 | 3.57 | 242.16 | 20.40 | 293.36 | 0.3805 | 849.4 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 2.20 | 242.07 | 20.30 | 290.06 | 0.3707 | 755.0 | 654.2 | |
| 2.12 | 9.65 | 1.13 | 5.15 | 3.11 | 241.92 | 20.16 | 292.47 | 0.3740 | 920.6 | 755.2 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 3.35 | 241.90 | 20.13 | 293.10 | 0.3752 | 711.0 | 617.2 | |
| 7.52 | -35.00 | 4.02 | -35.00 | 3.68 | 241.84 | 20.08 | 293.97 | 0.3765 | 894.0 | 999999 | |
| 1.77 | -35.00 | 0.95 | -35.00 | 4.20 | 241.79 | 20.03 | 295.27 | 0.3793 | 696.0 | 999999 | |
| 1.15 | -35.00 | 0.62 | -35.00 | 4.66 | 241.80 | 20.04 | 296.34 | 0.3828 | 563.9 | 999999 | |
| 1.15 | -35.00 | 0.62 | -35.00 | 4.84 | 241.71 | 19.95 | 296.87 | 0.3828 | 706.8 | 999999 | |
| 1.06 | -35.00 | 0.57 | -35.00 | 3.89 | 241.59 | 19.83 | 294.75 | 0.3742 | 802.8 | 999999 | |
| 0.00 | 3.01 | 0.00 | 1.60 | 2.97 | 241.50 | 19.74 | 292.58 | 0.3669 | 791.0 | 641.1 | |
| 0.62 | 3.01 | 0.33 | 1.60 | 2.67 | 241.43 | 19.67 | 291.88 | 0.3639 | 1068.0 | 764.1 | |
| 0.00 | 5.22 | 0.00 | 2.78 | 3.21 | 241.41 | 19.65 | 293.28 | 0.3671 | 942.0 | 889.8 | |
| 0.00 | 8.85 | 0.00 | 4.75 | 5.69 | 241.45 | 19.69 | 299.15 | 0.3856 | 803.0 | 615.6 | |
| 3.89 | -35.00 | 2.08 | -35.00 | 4.43 | 241.38 | 19.62 | 296.31 | 0.3750 | 895.7 | 999999 | |
| 0.97 | -35.00 | 0.52 | -35.00 | 4.65 | 241.39 | 19.62 | 296.81 | 0.3767 | 701.7 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 2.78 | 241.24 | 19.48 | 292.37 | 0.3618 | 871.0 | 827.6 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 5.34 | 241.25 | 19.49 | 298.62 | 0.3800 | 706.0 | 541.7 | |
| 55.23 | -35.00 | 29.39 | -35.00 | 3.93 | 241.05 | 19.28 | 295.49 | 0.3666 | 1253.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 6.72 | 240.92 | 19.15 | 302.16 | 0.3866 | 746.0 | 660.8 | |
| 0.00 | 3.81 | 0.00 | 2.02 | 3.01 | 240.74 | 18.98 | 293.52 | 0.3557 | 1038.0 | 858.7 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 2.19 | 240.66 | 18.90 | 291.45 | 0.3492 | 859.0 | 709.0 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 5.26 | 240.51 | 18.75 | 299.38 | 0.3689 | 695.0 | 529.7 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 5.07 | 240.41 | 18.65 | 299.07 | 0.3659 | 915.0 | 826.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 6.17 | 240.29 | 18.52 | 301.81 | 0.3733 | 716.0 | 576.1 | |
| 0.00 | 2.04 | 0.00 | 1.08 | 4.73 | 239.98 | 18.22 | 298.79 | 0.3571 | 917.0 | 787.0 | |
| 0.00 | 4.69 | 0.00 | 2.48 | 4.42 | 239.88 | 18.12 | 298.17 | 0.3532 | 762.0 | 791.5 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 5.00 | 239.90 | 18.13 | 299.58 | 0.3581 | 825.0 | 671.3 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 5.33 | 239.75 | 17.99 | 300.59 | 0.3587 | 644.0 | 540.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 4.31 | 239.40 | 17.64 | 298.56 | 0.3455 | 817.0 | 728.1 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 4.56 | 239.38 | 17.61 | 299.21 | 0.3471 | 963.0 | 825.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 1.17 | 238.00 | 16.23 | 291.65 | 0.3020 | 770.0 | 626.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -1.13 | 236.46 | 14.70 | 285.75 | 0.2648 | 769.0 | 589.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
