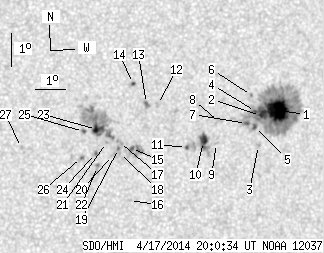

SDO HMI 2014-04-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.79 | 317.35 | 28.07 | 174.39 | -9.45 | 247.17 | 25.41 | 259.18 | 0.4322 | 322.9 | 178.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.89 | 189.34 | 17.24 | 105.58 | -9.06 | 249.15 | 27.39 | 260.73 | 0.4621 | 1231.9 | 430.9 | |
| 0.97 | -1.00 | 0.54 | -1.00 | -9.24 | 248.58 | 26.82 | 260.22 | 0.4537 | 1134.9 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.08 | -10.14 | 248.59 | 26.83 | 258.24 | 0.4556 | 801.0 | 608.1 | |
| 1.15 | -1.00 | 0.64 | -1.00 | -9.12 | 248.40 | 26.64 | 260.43 | 0.4508 | 975.3 | 999999 | |
| 1.50 | -1.00 | 0.83 | -1.00 | -9.58 | 248.40 | 26.64 | 259.43 | 0.4516 | 830.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -8.65 | 248.23 | 26.46 | 261.45 | 0.4474 | 891.0 | 824.1 | |
| 1.06 | -1.00 | 0.59 | -1.00 | -9.50 | 248.12 | 26.36 | 259.53 | 0.4472 | 792.2 | 999999 | |
| 0.00 | 4.60 | 0.00 | 2.53 | -9.47 | 247.17 | 25.41 | 259.31 | 0.4325 | 445.0 | 425.0 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -10.14 | 247.16 | 25.39 | 257.78 | 0.4337 | 206.0 | 189.9 | |
| 6.99 | 16.11 | 3.83 | 8.82 | -10.10 | 246.71 | 24.95 | 257.73 | 0.4268 | -941.0 | -542.6 | |
| 0.62 | 6.11 | 0.34 | 3.33 | -10.30 | 246.16 | 24.40 | 257.05 | 0.4188 | 583.0 | -474.2 | |
| 0.00 | 2.30 | 0.00 | 1.24 | -9.04 | 245.10 | 23.33 | 259.73 | 0.3992 | 625.0 | 529.7 | |
| 0.53 | 3.63 | 0.29 | 1.95 | -9.02 | 244.73 | 22.97 | 259.65 | 0.3934 | 1020.7 | 770.4 | |
| 0.71 | 1.86 | 0.38 | 1.00 | -8.43 | 244.26 | 22.50 | 261.02 | 0.3849 | 832.6 | 755.5 | |
| 1.06 | 11.60 | 0.57 | 6.24 | -10.39 | 244.33 | 22.57 | 256.02 | 0.3907 | -1007.2 | -708.8 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -11.97 | 244.39 | 22.63 | 252.14 | 0.3971 | -697.0 | -494.2 | |
| 0.00 | 2.66 | 0.00 | 1.42 | -10.23 | 243.92 | 22.16 | 256.25 | 0.3838 | -791.0 | -741.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -10.56 | 243.95 | 22.18 | 255.41 | 0.3852 | -603.0 | -525.5 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -10.41 | 243.90 | 22.14 | 255.78 | 0.3840 | -873.0 | -795.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -10.63 | 243.72 | 21.96 | 255.12 | 0.3819 | -722.0 | -575.3 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -10.24 | 243.49 | 21.73 | 256.01 | 0.3771 | -855.0 | -750.1 | |
| 0.00 | 3.01 | 0.00 | 1.61 | -10.97 | 243.25 | 21.49 | 253.96 | 0.3758 | -1009.0 | -775.1 | |
| 3.63 | 59.39 | 1.93 | 31.65 | -9.86 | 243.14 | 21.38 | 256.84 | 0.3704 | -1054.8 | -82.9 | |
| 0.53 | 1.68 | 0.28 | 0.90 | -10.58 | 243.16 | 21.39 | 254.93 | 0.3729 | -908.2 | -753.6 | |
| 0.80 | 1.77 | 0.42 | 0.94 | -9.93 | 242.72 | 20.95 | 256.43 | 0.3640 | -829.8 | -622.7 | |
| 0.35 | 1.50 | 0.19 | 0.80 | -10.72 | 242.71 | 20.94 | 254.31 | 0.3664 | -962.8 | -804.3 | |
| 0.00 | 1.86 | 0.00 | 0.98 | -10.48 | 240.74 | 18.97 | 253.72 | 0.3345 | 604.0 | 445.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
