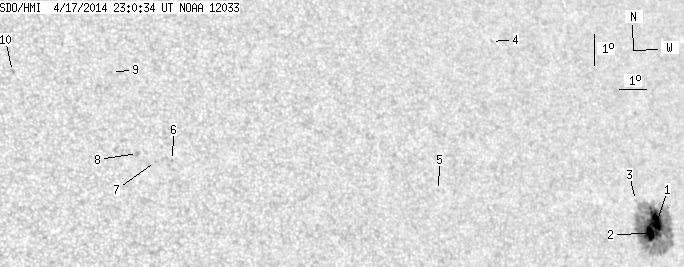

SDO HMI 2014-04-17 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.54 | 163.20 | 14.81 | 116.51 | 11.92 | 262.90 | 42.80 | 292.55 | 0.7208 | -426.1 | -307.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-17 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.04 | 153.63 | 8.71 | 110.72 | 11.96 | 263.77 | 43.67 | 292.00 | 0.7309 | -730.4 | -346.5 | |
| 8.50 | -1.00 | 6.10 | -1.00 | 11.59 | 263.44 | 43.34 | 291.67 | 0.7258 | -1029.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 12.60 | 263.01 | 42.91 | 293.18 | 0.7251 | -131.0 | -134.2 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 17.38 | 258.20 | 38.09 | 302.02 | 0.6967 | -528.0 | -483.4 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 12.44 | 255.14 | 35.04 | 297.33 | 0.6334 | 646.0 | 532.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 12.94 | 245.68 | 25.57 | 306.00 | 0.5221 | 768.0 | 616.5 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 12.88 | 245.09 | 24.99 | 306.54 | 0.5146 | 656.0 | 531.7 | |
| 0.00 | 2.21 | 0.00 | 1.27 | 13.11 | 244.50 | 24.40 | 307.55 | 0.5095 | 711.0 | 635.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 15.67 | 243.92 | 23.81 | 312.15 | 0.5264 | 518.0 | 458.5 | |
| 0.00 | 1.68 | 0.00 | 0.95 | 15.59 | 240.56 | 20.46 | 316.31 | 0.4894 | 285.0 | 327.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
