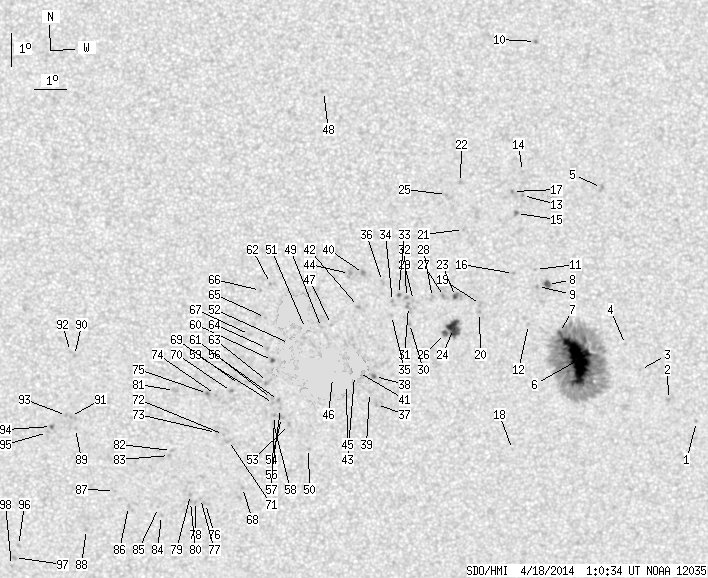

SDO HMI 2014-04-18 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.62 | 886.07 | 54.60 | 448.96 | -16.18 | 222.58 | 3.58 | 196.55 | 0.2096 | 320.2 | 180.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-18 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.60 | -18.04 | 231.33 | 12.33 | 222.58 | 0.3014 | 761.0 | 606.5 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -17.38 | 230.38 | 11.38 | 221.97 | 0.2829 | 945.0 | 765.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.47 | 229.43 | 10.43 | 221.89 | 0.2612 | -604.0 | -515.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -15.71 | 228.92 | 9.92 | 222.57 | 0.2461 | 780.0 | 572.9 | |
| 0.00 | 2.66 | 0.00 | 1.34 | -10.95 | 227.98 | 8.98 | 237.41 | 0.1827 | 622.0 | 623.6 | |
| 55.89 | 329.76 | 28.49 | 168.14 | -16.19 | 227.45 | 8.45 | 216.84 | 0.2363 | 1361.1 | 418.1 | |
| 1.24 | -6.00 | 0.63 | -6.00 | -15.37 | 226.81 | 7.81 | 216.98 | 0.2189 | 908.4 | 999999 | |
| 2.48 | 4.07 | 1.25 | 2.06 | -13.91 | 226.39 | 7.39 | 219.98 | 0.1952 | -1038.7 | -827.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -13.98 | 226.08 | 7.08 | 218.58 | 0.1927 | -827.0 | -696.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -6.57 | 225.86 | 6.86 | 259.84 | 0.1211 | 1027.0 | 816.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -13.46 | 226.00 | 7.00 | 220.05 | 0.1851 | -769.0 | -598.2 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -15.14 | 225.83 | 6.83 | 214.06 | 0.2060 | 768.0 | 521.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.22 | 225.54 | 6.54 | 227.58 | 0.1521 | 948.0 | 772.5 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -10.50 | 225.53 | 6.53 | 231.31 | 0.1439 | 713.0 | 528.1 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -11.77 | 225.37 | 6.37 | 224.22 | 0.1564 | 984.0 | 848.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.59 | 225.32 | 6.32 | 216.79 | 0.1795 | -867.0 | -662.7 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -11.10 | 225.23 | 6.23 | 226.80 | 0.1468 | 890.0 | 755.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -18.98 | 225.46 | 6.46 | 204.30 | 0.2596 | -535.0 | -370.3 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -14.54 | 224.31 | 5.31 | 209.36 | 0.1837 | 774.0 | 622.0 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -14.78 | 224.29 | 5.29 | 208.58 | 0.1871 | 847.0 | 641.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -12.26 | 223.74 | 4.74 | 213.95 | 0.1453 | 720.0 | 602.4 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -10.84 | 223.63 | 4.63 | 219.74 | 0.1245 | 896.0 | 699.2 | |
| 1.51 | 5.49 | 0.76 | 2.76 | -14.30 | 223.53 | 4.53 | 206.26 | 0.1738 | 1128.8 | 837.2 | |
| 12.58 | 21.61 | 6.34 | 10.90 | -15.28 | 223.49 | 4.49 | 203.69 | 0.1886 | 1064.3 | 704.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.21 | 223.20 | 4.20 | 215.28 | 0.1250 | 792.0 | 669.3 | |
| 1.68 | -24.00 | 0.85 | -24.00 | -15.43 | 223.24 | 4.24 | 202.20 | 0.1894 | 901.5 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.60 | -14.30 | 223.19 | 4.19 | 204.52 | 0.1713 | 806.0 | 812.2 | |
| 0.00 | 2.92 | 0.00 | 1.47 | -14.34 | 222.81 | 3.81 | 202.49 | 0.1692 | 902.0 | 643.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -14.43 | 222.22 | 3.22 | 199.11 | 0.1671 | 777.0 | 645.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -15.13 | 222.11 | 3.11 | 197.18 | 0.1780 | 901.0 | 765.4 | |
| 0.00 | 3.19 | 0.00 | 1.60 | -14.61 | 222.07 | 3.07 | 197.91 | 0.1693 | 905.0 | 805.1 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -14.34 | 222.00 | 3.00 | 198.07 | 0.1644 | 1134.0 | 924.4 | |
| 0.35 | 1.42 | 0.18 | 0.71 | -14.25 | 221.75 | 2.76 | 196.83 | 0.1617 | 1029.8 | 902.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.46 | 221.57 | 2.57 | 195.40 | 0.1643 | 933.0 | 798.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -14.89 | 221.54 | 2.54 | 194.57 | 0.1713 | 915.0 | 699.8 | |
| 0.00 | 2.57 | 0.00 | 1.29 | -13.85 | 221.25 | 2.25 | 194.55 | 0.1528 | 979.0 | 763.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -17.62 | 221.10 | 2.10 | 189.37 | 0.2156 | 752.0 | 643.3 | |
| 0.62 | 2.04 | 0.31 | 1.03 | -16.76 | 221.03 | 2.03 | 189.77 | 0.2009 | 888.9 | 766.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.25 | 220.88 | 1.88 | 188.66 | 0.2088 | 660.0 | 551.5 | |
| 0.00 | 2.57 | 0.00 | 1.29 | -13.61 | 220.66 | 1.66 | 191.17 | 0.1464 | 1005.0 | 900.4 | |
| 0.27 | 277.77 | 0.13 | 140.28 | -16.63 | 220.53 | 1.53 | 187.46 | 0.1975 | 1103.0 | 291.7 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -14.62 | 220.51 | 1.51 | 189.06 | 0.1631 | 968.0 | 859.8 | |
| 0.97 | -41.00 | 0.49 | -41.00 | -16.73 | 220.40 | 1.40 | 186.80 | 0.1988 | 1146.7 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.60 | -13.61 | 220.23 | 1.23 | 188.31 | 0.1452 | 907.0 | 795.4 | |
| 2.39 | -41.00 | 1.21 | -41.00 | -17.00 | 220.15 | 1.15 | 185.46 | 0.2031 | 956.8 | 999999 | |
| 20.99 | -41.00 | 10.61 | -41.00 | -16.79 | 219.71 | 0.71 | 183.44 | 0.1988 | 1271.4 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -15.17 | 219.68 | 0.68 | 183.84 | 0.1709 | -653.0 | -504.6 | |
| 0.00 | 1.68 | 0.00 | 0.83 | -8.11 | 219.42 | 0.42 | 188.80 | 0.0482 | 838.0 | 671.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -15.26 | 219.36 | 0.36 | 182.05 | 0.1722 | -597.0 | -363.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.98 | 218.95 | -0.05 | 179.81 | 0.2359 | -689.0 | -608.8 | |
| 2.75 | 116.47 | 1.38 | 58.48 | -15.29 | 218.87 | -0.13 | 179.24 | 0.1726 | -843.5 | -410.8 | |
| 2.66 | -41.00 | 1.34 | -41.00 | -15.75 | 218.36 | -0.64 | 176.60 | 0.1808 | -728.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -18.23 | 218.35 | -0.65 | 177.24 | 0.2235 | -879.0 | -720.4 | |
| 0.00 | 2.57 | 0.00 | 1.30 | -18.02 | 218.10 | -0.90 | 176.09 | 0.2201 | -885.0 | -774.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -17.74 | 218.07 | -0.93 | 175.87 | 0.2154 | -841.0 | -665.6 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -17.49 | 218.01 | -0.99 | 175.50 | 0.2112 | -1006.0 | -815.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.96 | 217.88 | -1.12 | 175.11 | 0.2193 | -898.0 | -759.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.17 | 217.85 | -1.15 | 175.06 | 0.2230 | -832.0 | -713.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -17.59 | 217.85 | -1.15 | 174.83 | 0.2130 | -993.0 | -890.3 | |
| 0.80 | 1.95 | 0.40 | 0.98 | -16.26 | 217.83 | -1.17 | 174.06 | 0.1905 | -1013.7 | -867.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -17.43 | 217.79 | -1.21 | 174.48 | 0.2105 | -931.0 | -827.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -13.91 | 217.78 | -1.22 | 172.08 | 0.1503 | -892.0 | -678.1 | |
| 0.00 | 3.45 | 0.00 | 1.75 | -16.91 | 217.67 | -1.33 | 173.64 | 0.2018 | -714.0 | -657.0 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -15.90 | 217.67 | -1.32 | 173.05 | 0.1845 | -969.0 | -729.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -14.95 | 217.62 | -1.38 | 172.02 | 0.1684 | -909.0 | -732.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.13 | 217.47 | -1.53 | 170.33 | 0.1547 | -878.0 | -684.4 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -15.47 | 217.12 | -1.88 | 169.74 | 0.1786 | -789.0 | -625.3 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -20.18 | 216.83 | -2.16 | 172.09 | 0.2589 | -791.0 | -607.0 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -17.00 | 216.78 | -2.21 | 169.59 | 0.2055 | -532.0 | -443.9 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -17.21 | 216.53 | -2.47 | 168.64 | 0.2099 | -1007.0 | -846.7 | |
| 0.00 | 3.28 | 0.00 | 1.67 | -18.72 | 216.41 | -2.59 | 169.49 | 0.2356 | -895.0 | -770.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.53 | 216.26 | -2.74 | 168.71 | 0.2330 | -873.0 | -710.8 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -18.47 | 216.03 | -2.97 | 167.77 | 0.2327 | -805.0 | -606.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.30 | 216.02 | -2.98 | 166.50 | 0.2133 | -804.0 | -669.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.27 | 215.77 | -3.23 | 165.36 | 0.2138 | -1120.0 | -913.2 | |
| 0.00 | 2.75 | 0.00 | 1.41 | -20.67 | 215.64 | -3.36 | 168.24 | 0.2705 | -609.0 | -575.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -20.52 | 215.48 | -3.52 | 167.57 | 0.2685 | -919.0 | -759.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -20.61 | 215.32 | -3.68 | 167.10 | 0.2706 | -762.0 | -666.7 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -20.39 | 215.16 | -3.84 | 166.37 | 0.2676 | -909.0 | -735.2 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -20.61 | 215.15 | -3.85 | 166.56 | 0.2712 | -772.0 | -698.1 | |
| 0.00 | 3.19 | 0.00 | 1.62 | -17.17 | 214.73 | -4.27 | 160.81 | 0.2173 | -659.0 | -439.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -19.02 | 214.59 | -4.41 | 162.86 | 0.2479 | -850.0 | -568.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -19.17 | 214.52 | -4.48 | 162.81 | 0.2507 | -866.0 | -656.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -21.04 | 214.21 | -4.79 | 163.88 | 0.2823 | -781.0 | -619.9 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -20.79 | 214.12 | -4.88 | 163.33 | 0.2787 | -709.0 | -517.3 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -20.75 | 213.15 | -5.85 | 160.23 | 0.2831 | -759.0 | -647.4 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -20.24 | 212.72 | -6.28 | 158.21 | 0.2778 | -516.0 | -634.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -21.45 | 211.75 | -7.25 | 157.05 | 0.3024 | -689.0 | -561.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -18.31 | 211.55 | -7.45 | 151.23 | 0.2569 | -924.0 | -777.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -16.06 | 211.61 | -7.39 | 146.38 | 0.2242 | -875.0 | -658.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.93 | 211.41 | -7.59 | 150.02 | 0.2527 | -855.0 | -741.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -15.94 | 211.49 | -7.51 | 145.63 | 0.2236 | -738.0 | -620.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.90 | 211.28 | -7.72 | 149.54 | 0.2533 | -861.0 | -728.6 | |
| 0.44 | 1.68 | 0.23 | 0.86 | -18.23 | 210.78 | -8.22 | 148.69 | 0.2624 | -920.4 | -754.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -18.42 | 210.65 | -8.35 | 148.66 | 0.2662 | -666.0 | -566.2 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -21.92 | 209.50 | -9.50 | 151.80 | 0.3255 | -764.0 | -492.5 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -22.29 | 209.34 | -9.66 | 152.00 | 0.3321 | -980.0 | -740.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -22.54 | 209.22 | -9.78 | 152.10 | 0.3366 | -656.0 | -587.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
